Pneumatic Diaphragm Pumps

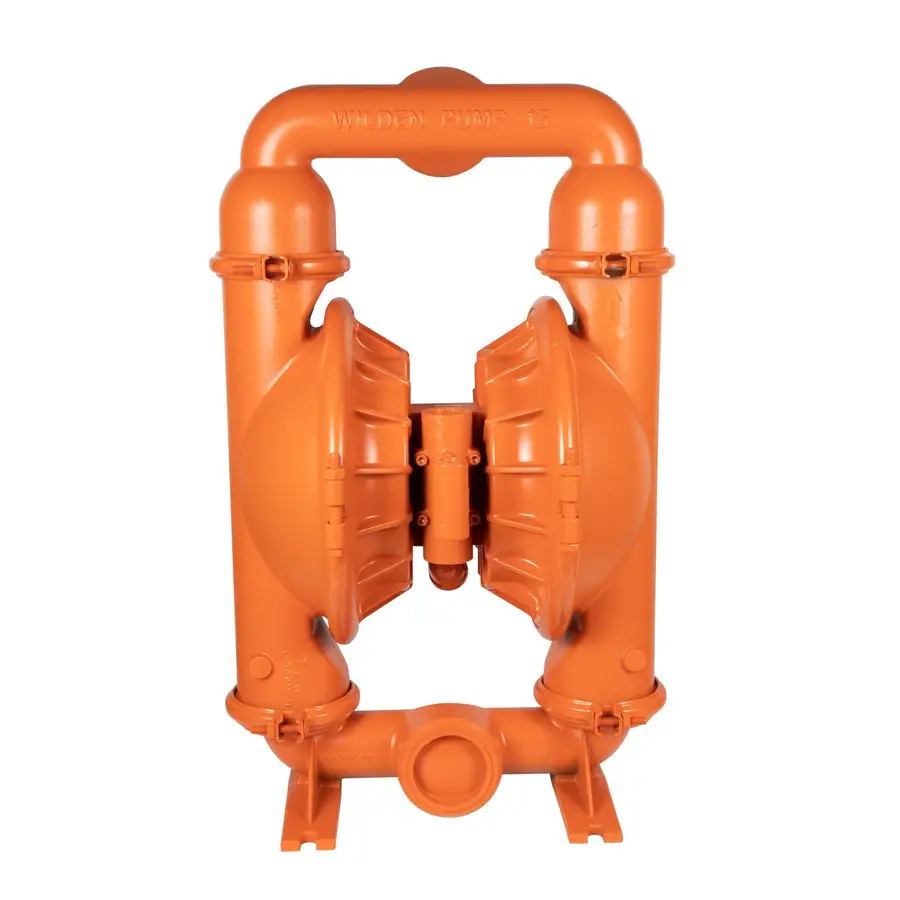

WILDEN PX4 clamp type metal pneumatic diaphragm pump
Model: PX4
WILDEN PX4 clamp type metal pneumatic diaphragm pump WILDEN PX4 clamp type metal pneumatic diaphragm pump specifications: Material of liquid contact: Transport weight of aluminum alloy: 21 kg (46 lbs); 316 stainless steel transport weight: 28 kg (62 lbs);
TECHNICAL DATA
Specifications, performance and construction
Confirm the final operating point, materials, motor and connection standard before ordering.
WILDEN PX4 clamp type metal pneumatic diaphragm pump
WILDEN PX4 clamp type metal pneumatic diaphragm pump specifications:
Material of liquid contact:
Transport weight of aluminum alloy: 21 kg (46 lbs);
316 stainless steel transport weight: 28 kg (62 lbs);
Ductile iron transport weight: 30 kg (66 lbs)
Elastomer material:
Nitrile rubber, ternary rubber, SaniflexTM, neoprene, polyimine esters,
Teflon PTFE, fluorinated rubber, Wil-FlexTM.
Non-liquid-to-liquid material:
Air chamber: aluminum alloy, acetal, aluminum-covered H alar;
Intermediate: aluminum alloy, stainless steel;
Air valve: aluminum alloy, stainless steel;
Performance parameters of WILDEN Wilton PX4 clamp type metal pneumatic diaphragm pump:
Media import dimensions: 1-1/2” (38 mm);
Media outlet dimensions: 1-1/4” (32 mm);
Air inlet size: 3/4” (19 mm);
Maximum outlet pressure: 8.6 Bar (125 psig);
The maximum solid particle diameter can be passed: 3/16” (4.8mm);
Maximum traffic:
Rubber/thermoplastic compound: 347 lpm (92 gpm);
Teflon PTFE: 327 lpm (87 gpm);
Maximum suction range:
Rubber/thermoplastic compounds: dry suction 6.9 m (22.7’), wet suction 9.3 m (30.6’);
Teflon PTFE: dry suction 4 m (13.1’), wet suction 9.2 m (30.1’);
