Pneumatic Diaphragm Pumps

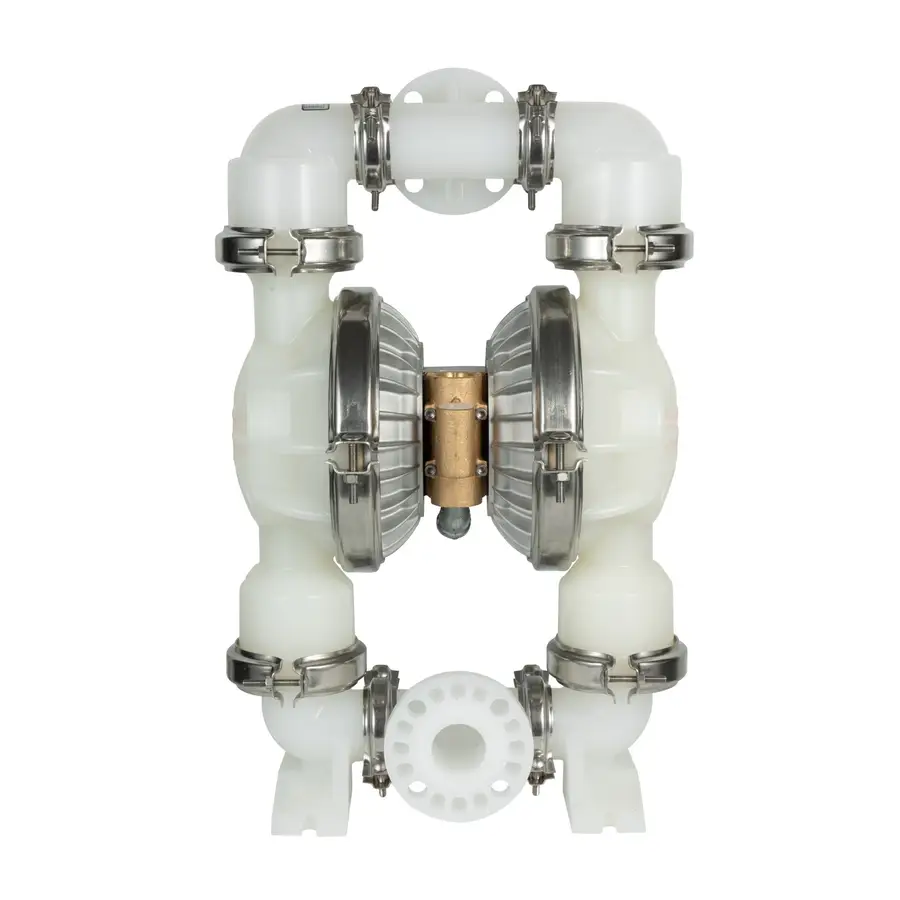

WILDEN PX4 clamp type plastic pneumatic diaphragm pump
Model: PX4
WILDEN PX4 clamp type plastic pneumatic diaphragm pump WILDEN Wilton PX4 clamp type plastic pneumatic diaphragm pump specifications: Material of liquid contact: Polypropylene transport weight: 17 kg (37 lbs); Polyvinylidene Fluoride transport weight: 24kg (52 lbs);
TECHNICAL DATA
Specifications, performance and construction
Confirm the final operating point, materials, motor and connection standard before ordering.
WILDEN PX4 clamp type plastic pneumatic diaphragm pump
WILDEN Wilton PX4 clamp type plastic pneumatic diaphragm pump specifications:
Material of liquid contact:
Polypropylene transport weight: 17 kg (37 lbs);
Polyvinylidene Fluoride transport weight: 24kg (52 lbs);
Elastomer material:
Nitrile rubber, neoprene, Teflon PTFE, fluorinated rubber, Wil-FlexTM
Non-liquid-to-liquid material:
Air chamber: aluminum alloy, stainless steel;
Intermediate: polypropylene;
Air valve: polypropylene;
Performance parameters of WILDEN Wilton PX4 clamp type plastic pneumatic diaphragm pump:
Media import dimensions: 1-1/2” (38 mm);
Media outlet dimensions: 1-1/2” (38 mm);
Air inlet size: 3/4” (19 mm);
Maximum outlet pressure: 8.6 Bar (125 psig);
Maximum solid particle diameter can be passed: 3/16” (4.8 mm);
Maximum traffic:
Rubber/thermoplastic compound: 363 lpm (96 gpm);
Teflon PTFE: 276 lpm (73 gpm);
Maximum suction range:
Rubber/thermoplastic compounds: dry suction 5.7 m (18.7’), wet suction 9.2 m (30.1’);
Teflon PTFE: dry suction 2.1 m (6.8’), wet suction 9.2 m (30.1’);
