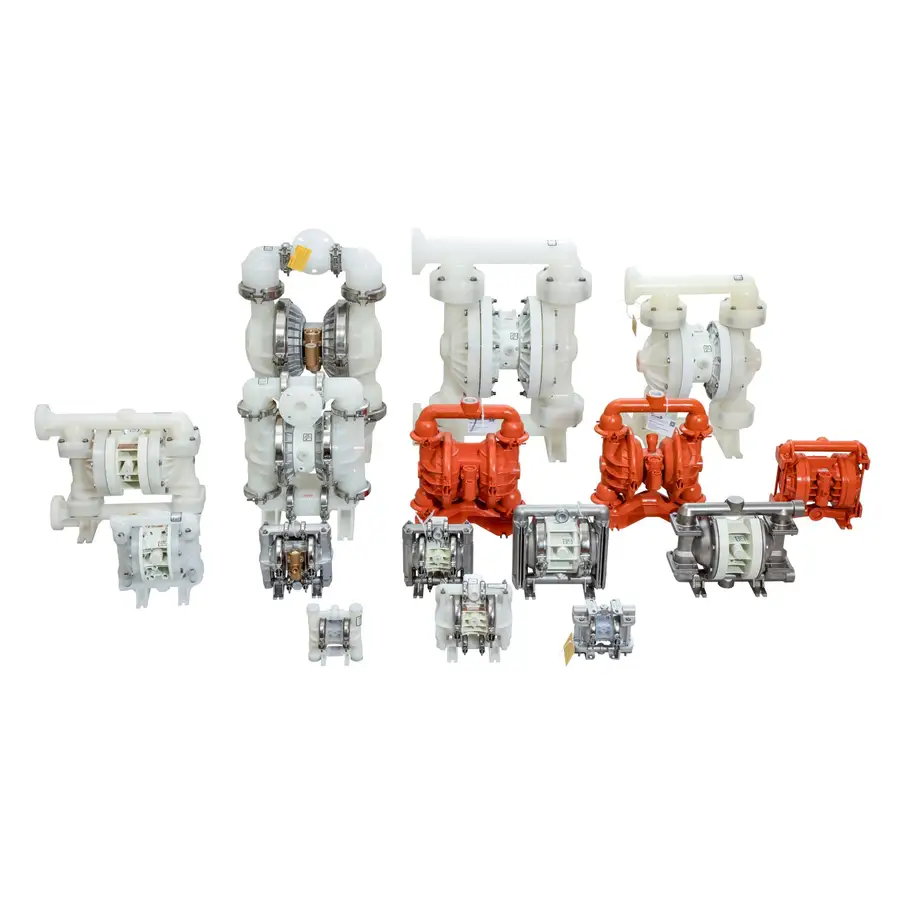

WILDEN PX800 Bolt Metal Pneumatic Diaphragm Pump

WILDEN   PX800 Bolt Metal Pneumatic Diaphragm Pump

WILDEN   PX800 bolt metal pneumatic diaphragm pump specifications:

Material of liquid contact:

Aluminum alloy transport weight: 35 kg (78 lbs)

316 stainless steel transportation weight: 53 kg (117 lbs)

Ductile iron transport weight: 54 kg (119 lbs)

Hastelloy Transport Weight: 49 kg (109 lbs)

Elastomer material:

Nitrile rubber, ternary rubber, SaniflexTM, neoprene, polyimine esters,

Teflon PTFE, fluorinated rubber, Wil-FlexTM.

Non-liquid-to-liquid material:

Air chamber: aluminum alloy, stainless steel;

Middle part: aluminum alloy, stainless steel, polypropylene;

Air valve: aluminum alloy, stainless steel, polypropylene;

Performance parameters of WILDEN Wilton PX800 bolt metal pneumatic diaphragm pump:

Media import dimensions: 2” (51 mm)

Media outlet size: 2” (51 mm)

Air inlet size: 3/4” (19 mm)

Maximum outlet pressure: 8.6 Bar (125 psig)

Maximum solid particle diameter can be passed: 1/4” (6.4mm)

Maximum traffic:

Rubber/thermoplastic compound: 712 lpm (188 gpm)

Teflon PTFE: 617 lpm (163 gpm)

Maximum suction range: Rubber/thermoplastic compounds: dry suction 7.4 m (24.4’), wet suction 9.3m (30.6’)

Teflon PTFE: Dry suction 4.5 m (14.8’), wet suction 8.7 m (28.4’)

WILDEN Pump Description	PX800/AAAAA/FSS/TF/FS
Port Size	2"
Air Kit	04-9988-99
Wet Kit	NME
Air Distribution System	Pro-Flo X™
Pump Construction	Aluminum
Diaphragms	Saniflex
Valve/ Balls	Teflon
Valve Seats	Saniflex
Outer Piston	Aluminum
Air Chamber	Aluminum
Center Block	Aluminum
Air Valve	Aluminum
Capacity GPM	172
Capacity Liters/min	654
Pump Weight Lbs	83,0
Pump Weight Kilo	37
Specialty Code	#N/A
