Pneumatic Diaphragm Pumps

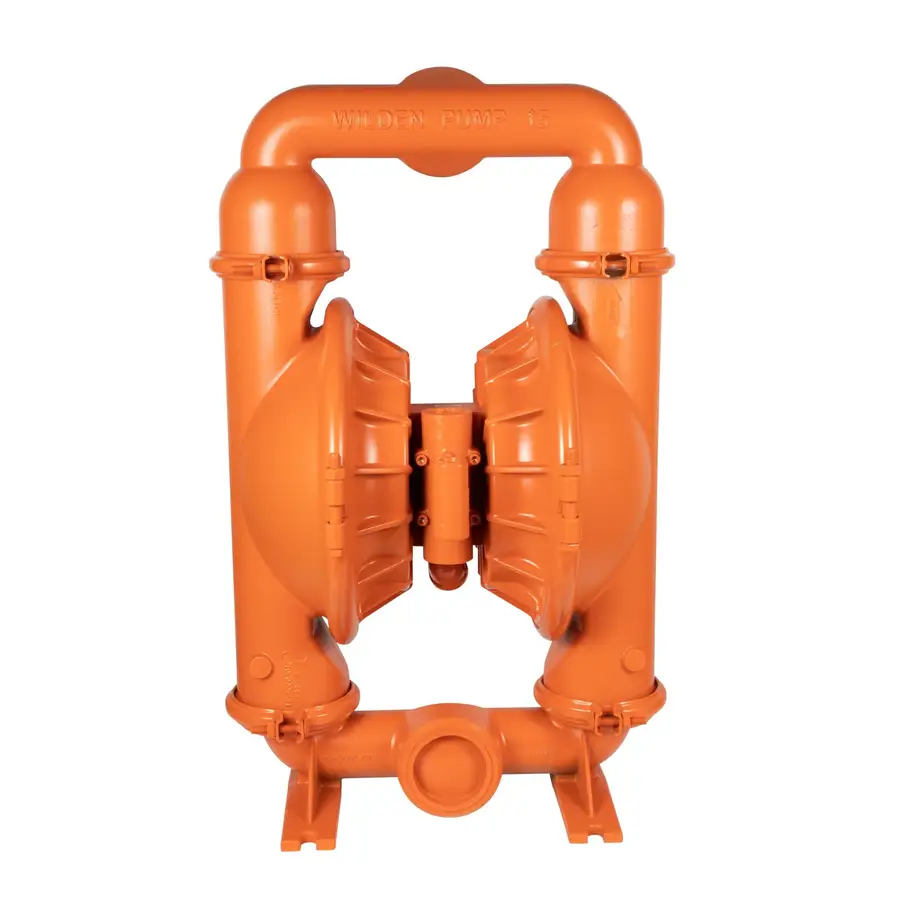

WILDEN PX8 clamp type metal pneumatic separator membrane pump
Model: PX8
WILDEN PX8 clamp type metal pneumatic separator membrane pump WILDEN PX8 clamp type metal pneumatic diaphragm pump specifications: Material of liquid contact: Aluminum alloy transport weight: 35 kg (78 lbs); 316 Stainless steel transport weight: 53 kg (117 lbs) Ductile iron transport weight: 49 kg (109 lbs) Elastomer material: Nitrile rubber, ternary rubber, SaniflexTM, neoprene, polyimine esters, Teflon PTFE…
TECHNICAL DATA
Specifications, performance and construction
Confirm the final operating point, materials, motor and connection standard before ordering.
WILDEN PX8 clamp type metal pneumatic separator membrane pump
WILDEN PX8 clamp type metal pneumatic diaphragm pump specifications:
Material of liquid contact:
Aluminum alloy transport weight: 35 kg (78 lbs);
316 Stainless steel transport weight: 53 kg (117 lbs)
Ductile iron transport weight: 49 kg (109 lbs)
Elastomer material:
Nitrile rubber, ternary rubber, SaniflexTM, neoprene, polyimine esters,
Teflon PTFE, fluorinated rubber, Wil-FlexTM.
Non-liquid-to-liquid material:
Air chamber: aluminum alloy, stainless steel;
Intermediate: aluminum alloy, stainless steel;
Air valve: aluminum alloy, stainless steel;
Performance parameters of WILDEN Wilton PX8 clamp metal pneumatic diaphragm pump:
Media import dimensions: 2” (51 mm);
Media outlet dimensions: 2” (51 mm);
Air inlet size: 3/4” (19 mm);
Maximum outlet pressure: 8.6 Bar (125 psig);
The maximum solid particle diameter can be passed: 1/4” (6.4 mm);
Maximum traffic:
Rubber/thermoplastic compound: 712 lpm (188 gpm);
Teflon PTFE: 617 lpm (163 gpm);
Maximum suction range:
Rubber/thermoplastic compounds: dry suction 7.4 m (24.4’), wet suction 9.3 m (30.6’);
Teflon PTFE: dry suction 4.5 m (14.8’), wet suction 8.7 m (28.4’);
| PX8/AAAAA/BNS/BN/BN |
| PX8/AAAAA/BNS/BN/BN/0014 |
| PX8/AAAAA/BNS/BN/BN/0030 |
| PX8/AAAAA/BNS/BN/BN/0320 |
| PX8/AAAAA/BNS/BN/BN/0325 |
| PX8/AAAAA/BNU/BN/BN/0014 |
| PX8/AAAAA/NES/BN/BN |
| PX8/AAAAA/NES/NE/NE |
| PX8/AAAAA/NES/NE/NE/0014 |
| PX8/AAAAA/NES/NE/NE/0030 |
| PX8/AAAAA/NES/NE/NE/0044 |
| PX8/AAAAA/NES/NE/NE/0320 |
| PX8/AAAAA/TNU/TF/ATF |
| PX8/AAAAA/TNU/TF/ATF/0014 |
| PX8/AAAAA/TNU/TF/ATF/0320 |
| PX8/AAAAA/TNU/TF/ATF/0324 |
| PX8/AAAAA/TSU/TF/ATF/0014 |
| PX8/AAAAA/VTS/TF/STF |
| PX8/AAAAA/VTS/VT/VT |
| PX8/AAAAA/VTS/VT/VT/0014 |
| PX8/AAAAA/VTS/VT/VT/0320 |
| PX8/AAAAA/VTU/VT/VT |
| PX8/AAAAA/ZWS/WF/WF/0014 |
| PX8/SSAAA/BNS/BN/BN |
| PX8/SSAAA/FES/TF/EP |
| PX8/SSAAA/FES/TF/STF/0070 |
| PX8/SSAAA/NES/NE/NE |
| PX8/SSAAA/NES/NE/NE/0014 |
| PX8/SSAAA/TEU/TF/STF/0070 |
| PX8/SSAAA/TNU/TF/STF |
| PX8/SSAAA/TNU/TF/STF/0014 |
| PX8/SSAAA/TNU/TF/STF/0080 |
| PX8/SSAAA/TNU/TF/STF/0320 |
| PX8/SSAAA/TSU/TF/STF/0014 |
| PX8/SSAAA/VTS/VT/VT |
| PX8/SSAAA/VTS/VT/VT/0014 |
| PX8/SSAAA/VTU/VT/VT |
| PX8/SSAAA/ZWS/WF/WF/0014 |
| PX8/SSSSS/FES/TF/STF/0070 |
| PX8/SSSSS/TNU/TF/STF |
| PX8/WSAAA/TNU/TF/MTF |
| PX8/WSAAA/TNU/TF/MTF/0014 |
| PX8/WWAAA/BNS/BN/BN |
| PX8/WWAAA/BNS/BN/BN/0014 |
| PX8/WWAAA/EPU/EP/EP/0014 |
| PX8/WWAAA/NES/BN/BN |
| PX8/WWAAA/NES/NE/NE |
| PX8/WWAAA/NES/NE/NE/0014 |
| PX8/WWAAA/VTS/VT/VT |
| PX8/WWAAA/ZWS/WF/WF/0014 |
