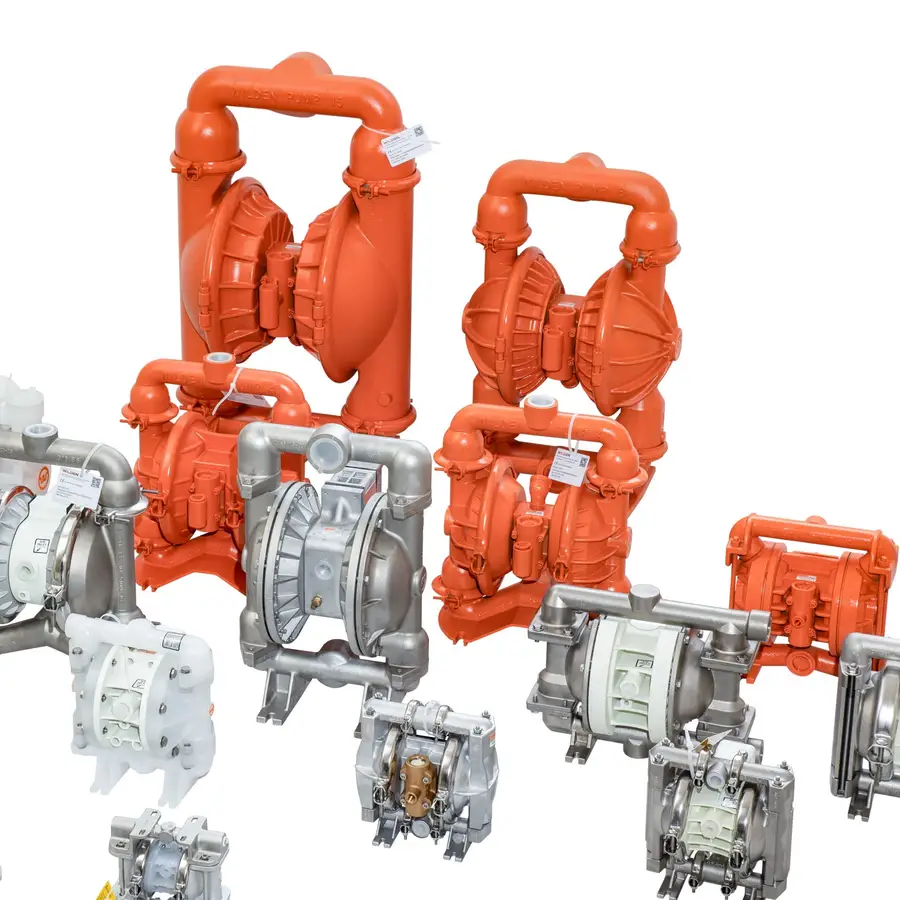

Reference image. Final construction follows the confirmed model and quotation.
Pneumatic Diaphragm Pumps
Wilden PX8 clamp type plastic pneumatic diaphragm pump
Model: PX8
Wilden PX8 clamp type plastic pneumatic diaphragm pump WILDEN Wilton PX8 clamp type plastic pneumatic diaphragm pump specifications: Material of liquid contact: Polypropylene transport weight: 34 kg (75 lbs); Elastomer material: Nitrile rubber, ternary rubber, SaniflexTM, neoprene, polyimine esters, Teflon PTFE, fluorinated rubber, Wil-FlexTM Non-liquid-to-liquid material: Air chamber: aluminum alloy, stainless…
TECHNICAL DATA
Specifications, performance and construction
Confirm the final operating point, materials, motor and connection standard before ordering.
Wilden PX8 clamp type plastic pneumatic diaphragm pump
WILDEN Wilton PX8 clamp type plastic pneumatic diaphragm pump specifications:
Material of liquid contact:
Polypropylene transport weight: 34 kg (75 lbs);
Elastomer material:
Nitrile rubber, ternary rubber, SaniflexTM, neoprene, polyimine esters, Teflon PTFE, fluorinated rubber, Wil-FlexTM
Non-liquid-to-liquid material:
Air chamber: aluminum alloy, stainless steel, ductile iron;
Intermediate: polypropylene;
Air valve: polypropylene;
Performance parameters of WILDEN Wilton PX8 clamp type plastic pneumatic diaphragm pump:
Media import dimensions: 2” (51 mm);
Media outlet dimensions: 2” (51 mm);
Air inlet size: 3/4” (19 mm);
Maximum outlet pressure: 8.6 Bar (125 psig);
The maximum solid particle diameter can be passed: 1/4” (6.4 mm);
Maximum traffic:
Rubber/thermoplastic compound: 606 lpm (160 gpm);
Teflon PTFE: 503 lpm (133 gpm);
Maximum suction range:
Rubber/thermoplastic compounds: dry suction 6.9 m (22.7’), wet suction 9.3 m (30.6’);
Teflon PTFE: dry suction 3.8 m (12.5’), wet suction 9.2 m (30.1’);
