Pneumatic Diaphragm Pumps

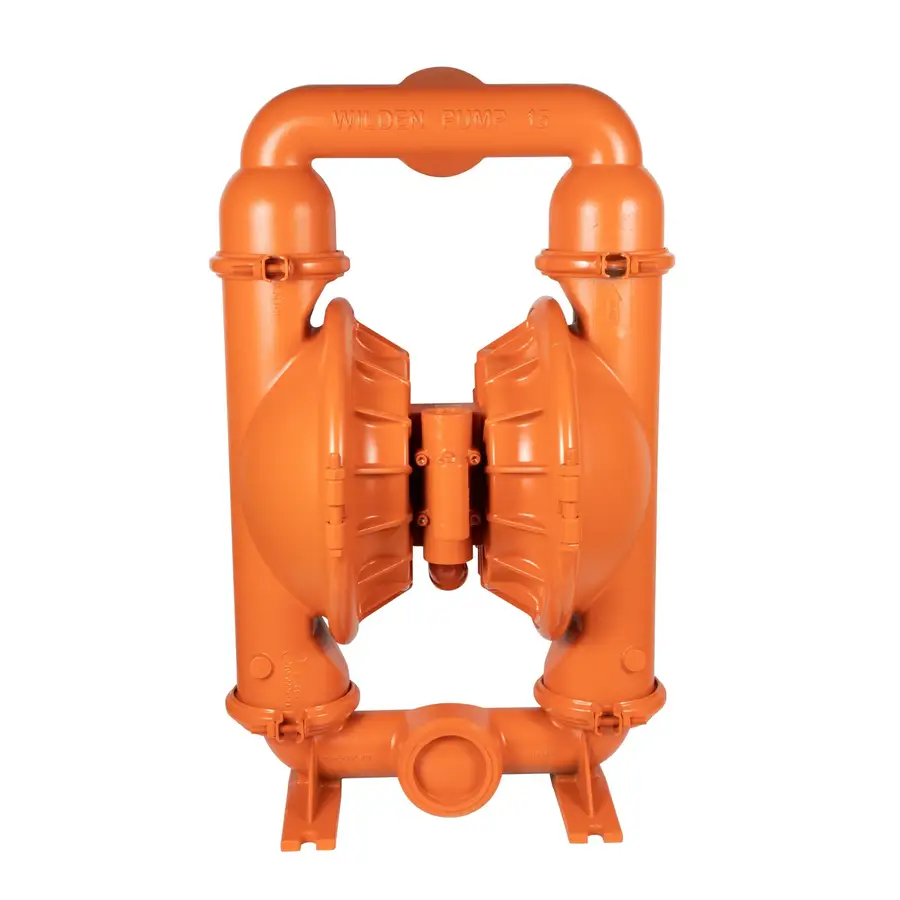

WILDEN T15 clamp type metal pneumatic diaphragm pump
Model: T15
WILDEN T15 clamp type metal pneumatic diaphragm pump WILDEN T15 clamp type metal pneumatic diaphragm pump specifications: Material of liquid contact: Transport weight of aluminum alloy: 53 kg (116 lbs); Ductile iron transport weight: 91 kg (200 lbs); Elastomer material: Nitrile rubber, ternary rubber, SaniflexTM, neoprene, polyimine esters, Teflon PTFE, fluorinated rubber, Wil-FlexTM.
TECHNICAL DATA
Specifications, performance and construction
Confirm the final operating point, materials, motor and connection standard before ordering.
WILDEN T15 clamp type metal pneumatic diaphragm pump
WILDEN T15 clamp type metal pneumatic diaphragm pump specifications:
Material of liquid contact:
Transport weight of aluminum alloy: 53 kg (116 lbs);
Ductile iron transport weight: 91 kg (200 lbs);
Elastomer material:
Nitrile rubber, ternary rubber, SaniflexTM, neoprene, polyimine esters, Teflon PTFE, fluorinated rubber, Wil-FlexTM.
Non-liquid-to-liquid material:
Air chamber: aluminum alloy;
Intermediate part: aluminum alloy, polypropylene;
Air valve: brass;
Performance parameters of WILDEN Wilton T15 clamp type metal pneumatic diaphragm pump:
Media import dimensions: 3” (76 mm);
Media outlet dimensions: 3” (76 mm);
Air inlet size: 3/4” (19 mm);
Maximum outlet pressure: 8.6 Bar (125 psig);
Maximum solid particle diameter can be passed: 3/8” (9.5 mm);
Maximum traffic:
Rubber/thermoplastic compound: 878 lpm (232 gpm);
Teflon PTFE: 704 lpm (186 gpm);
Maximum suction range:
Rubber/thermoplastic compounds: dry suction 5.5 m (18.0’), wet suction 9.5 m (31.0’);
Teflon PTFE: dry suction 3.5 m (13.0’), wet suction 8.5 m (28.0’);
