Pneumatic Diaphragm Pumps

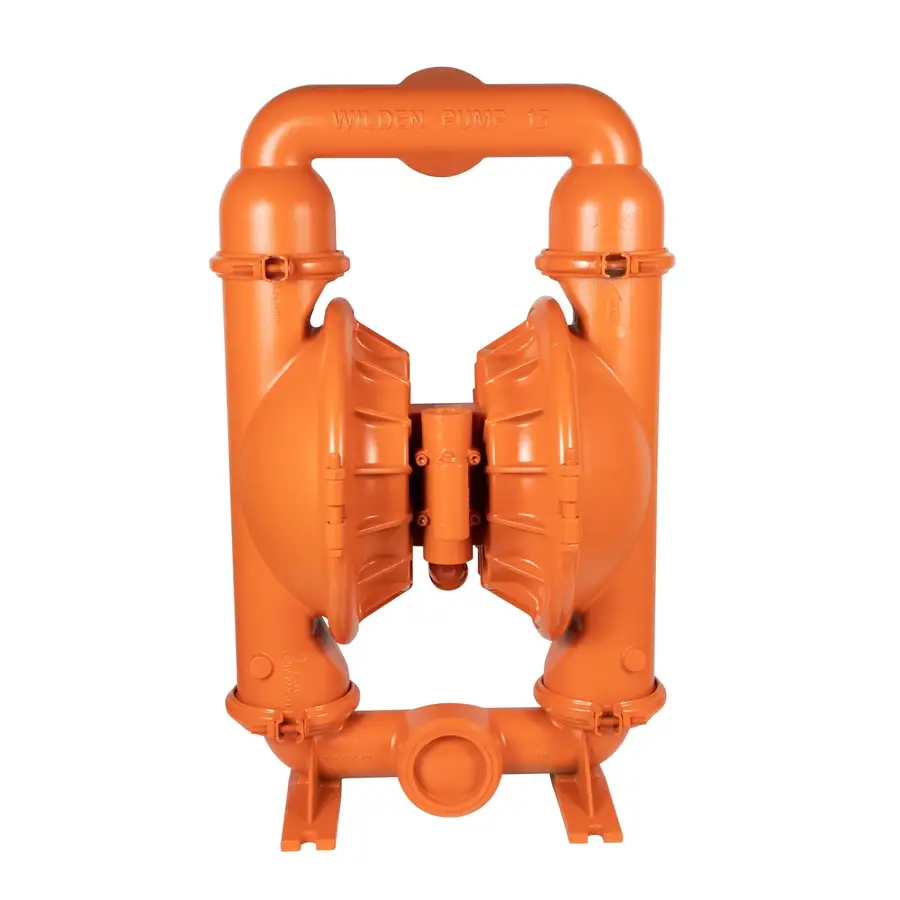

WILDEN Wilton T8 clamp type metal pneumatic separator membrane pump
Model: T8
WILDEN PX15 clamp type metal pneumatic diaphragm pump WILDEN T8 clamp type metal pneumatic diaphragm pump specifications: Material of liquid contact: Aluminum alloy transport weight: 32 kg (72 lbs); Ductile iron transport weight: 52 kg (114 lbs); Elastomer material: Nitrile rubber, ternary rubber, SaniflexTM, neoprene, polyimine esters, Teflon PTFE, fluorinated rubber, Wil-FlexTM.
TECHNICAL DATA
Specifications, performance and construction
Confirm the final operating point, materials, motor and connection standard before ordering.
WILDEN PX15 clamp type metal pneumatic diaphragm pump
WILDEN T8 clamp type metal pneumatic diaphragm pump specifications:
Material of liquid contact:
Aluminum alloy transport weight: 32 kg (72 lbs);
Ductile iron transport weight: 52 kg (114 lbs);
Elastomer material:
Nitrile rubber, ternary rubber, SaniflexTM, neoprene, polyimine esters,
Teflon PTFE, fluorinated rubber, Wil-FlexTM.
Non-liquid-to-liquid material:
Air chamber: aluminum alloy;
Intermediates: aluminum alloy, polypropylene;
Air valve: aluminum alloy, brass;
Performance parameters of WILDEN Wilton T8 clamp type metal pneumatic diaphragm pump:
Media import dimensions: 2” (51 mm);
Media outlet dimensions: 2” (51 mm);
Air inlet size: 3/4” (19 mm);
Maximum outlet pressure: 8.6 Bar (125 psig);
The maximum solid particle diameter can be passed: 1/4” (6.4 mm);
Maximum traffic:
Rubber/thermoplastic compound: 617 lpm (163 gpm);
Teflon PTFE: 534 lpm (141 gpm);
Maximum suction range:
Rubber/thermoplastic compounds: dry suction 6.4 m (21.0’), wet suction 9.5 m (31.0’);
Teflon PTFE: dry suction 3.7 m (12.0’), wet suction 9.5 m (31.0’);
| T8/AAAAB/BNS/BN/AFS |
| T8/AAAAB/BNS/BN/ATF |
| T8/AAAAB/BNS/BN/BN |
| T8/AAAAB/BNS/BN/BN/0014 |
| T8/AAAAB/BNS/BN/BN/0030 |
| T8/AAAAB/BNS/BN/BN/0050 |
| T8/AAAAB/BNU/BN/BN |
| T8/AAAAB/BNU/BN/BN/0014 |
| T8/AAAAB/BNU/BN/BN/0050 |
| T8/AAAAB/BNU/BN/BN/0051 |
| T8/AAAAB/EPS/EP/EP |
| T8/AAAAB/EPU/EP/EP/0014 |
| T8/AAAAB/NES/NE/NE |
| T8/AAAAB/NES/NE/NE/0014 |
| T8/AAAAB/NES/NE/NE/0030 |
| T8/AAAAB/NES/NE/NE/0050 |
| T8/AAAAB/NEU/NE/NE |
| T8/AAAAB/NEU/NE/NE/0014 |
| T8/AAAAB/NEU/NE/NE/0030 |
| T8/AAAAB/NEU/NE/NE/0050 |
| T8/AAAAB/NEU/NE/NE/0051 |
| T8/AAAAB/NEU/NE/NE/0118 |
| T8/AAAAB/TNU/TF/ATF |
| T8/AAAAB/TNU/TF/ATF/0014 |
| T8/AAAAB/TNU/TF/STF |
| T8/AAAAB/TSU/TF/ATF |
| T8/AAAAB/TWS/TF/ATF/0014 |
| T8/AAAAB/VTS/VT/VT |
| T8/AAAAB/VTS/VT/VT/0014 |
| T8/AAAAB/VTU/VT/VT |
| T8/AAAAB/ZWS/WF/WF/0014 |
| T8/AAAPB/BNS/BN/BN |
| T8/AAAPB/BNS/BN/BN/0014 |
| T8/AAAPB/BNU/BN/BN |
| T8/AAAPB/BNU/BN/BN/0014 |
| T8/AAAPB/NES/NE/NE |
| T8/AAAPB/NES/NE/NE/0014 |
| T8/AAAPB/TEU/TF/ATF |
| T8/AAAPB/TNU/TF/ATF |
| T8/AAAPB/TNU/TF/ATF/0014 |
| T8/AAAPB/TNU/TF/STF |
| T8/AAAPB/VTS/VT/VT |
| T8/SSAAB/TWS/TF/STF/0014 |
| T8/WSAAB/TNU/TF/STF |
| T8/WSWPB/TNU/TF/STF |
| T8/WWAAB/BNS/BN/BN |
| T8/WWAAB/BNS/BN/BN/0014 |
| T8/WWAAB/BNU/BN/BN |
| T8/WWAAB/NES/NE/NE |
| T8/WWAAB/NES/NE/NE/0014 |
| T8/WWAAB/NES/TF/NE/0014 |
| T8/WWAAB/NEU/NE/NE |
| T8/WWAAB/NEU/NE/NE/0014 |
| T8/WWAAB/VTS/VT/VT |
| T8/WWAAB/VTS/VT/VT/0014 |
| T8/WWAAB/ZWS/WF/WF/0014 |
| T8/WWAPB/BNS/BN/BN |
| T8/WWAPB/BNS/BN/BN/0014 |
| T8/WWAPB/NES/NE/NE |
| T8/WWWAB/BNS/BN/BN |
| T8/WWWAB/VTS/VT/VT |
| T8/WWWPB/NES/NE/NE |
| T8/WWWPB/NEU/NE/NE/0046 |
