Pneumatic Diaphragm Pumps

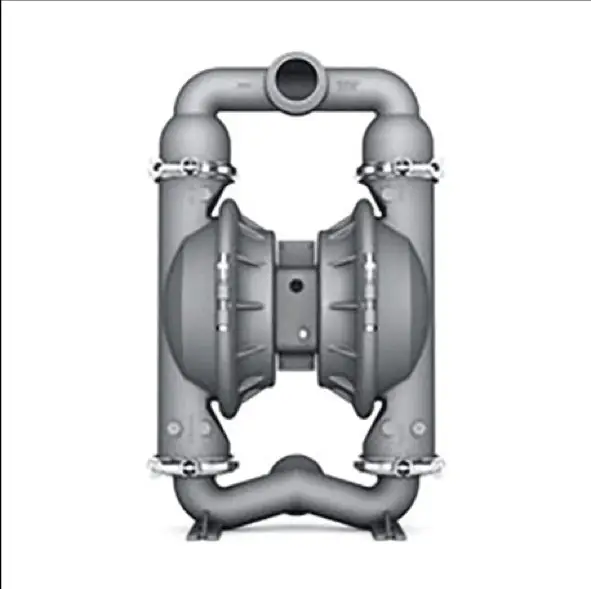

WILDEN XPS15/SSAAA/TWS/TF/STF/0070 Stainless Steel Pneumatic diaphragm pumps
Model: XPS15/SSAAA/TWS/TF/STF/0070
WILDEN XPS15/SSAAA/TWS/TF/STF/0070 Stainless Steel Pneumatic diaphragm pumps WILDEN Pump Description XPS15/SSAAA/TWS/TF/STF/0070 Item Number Pump 15-12633 Port Size 3" Air Kit 15-9993-99 Wet Kit 15-9804-55-201 Air Distribution System Pro-Flo SHIFT® Pump Construction Stainless Steel Diaphragms Full Stroke Ptfe, Wil-Flex Back-Up Valve/ Balls Teflon Valve Seats SS with Teflon O-ring Outer Piston Stainless Steel Air…
TECHNICAL DATA
Specifications, performance and construction
Confirm the final operating point, materials, motor and connection standard before ordering.
WILDEN XPS15/SSAAA/TWS/TF/STF/0070 Stainless Steel Pneumatic diaphragm pumps
| WILDEN Pump Description | XPS15/SSAAA/TWS/TF/STF/0070 |
|---|---|
| Item Number Pump | 15-12633 |
| Port Size | 3" |
| Air Kit | 15-9993-99 |
| Wet Kit | 15-9804-55-201 |
| Air Distribution System | Pro-Flo SHIFT® |
| Pump Construction | Stainless Steel |
| Diaphragms | Full Stroke Ptfe, Wil-Flex Back-Up |
| Valve/ Balls | Teflon |
| Valve Seats | SS with Teflon O-ring |
| Outer Piston | Stainless Steel |
| Air Chamber | Aluminum |
| Center Block | Aluminum |
| Air Valve | Aluminum |
| Capacity GPM | 242 |
| Capacity Liters/min | 916 |
| Pump Weight Lbs | 187,0 |
| Pump Weight Kilo | 84 |
| Specialty Code | Food Processing FDA |
