Pneumatic Diaphragm Pumps

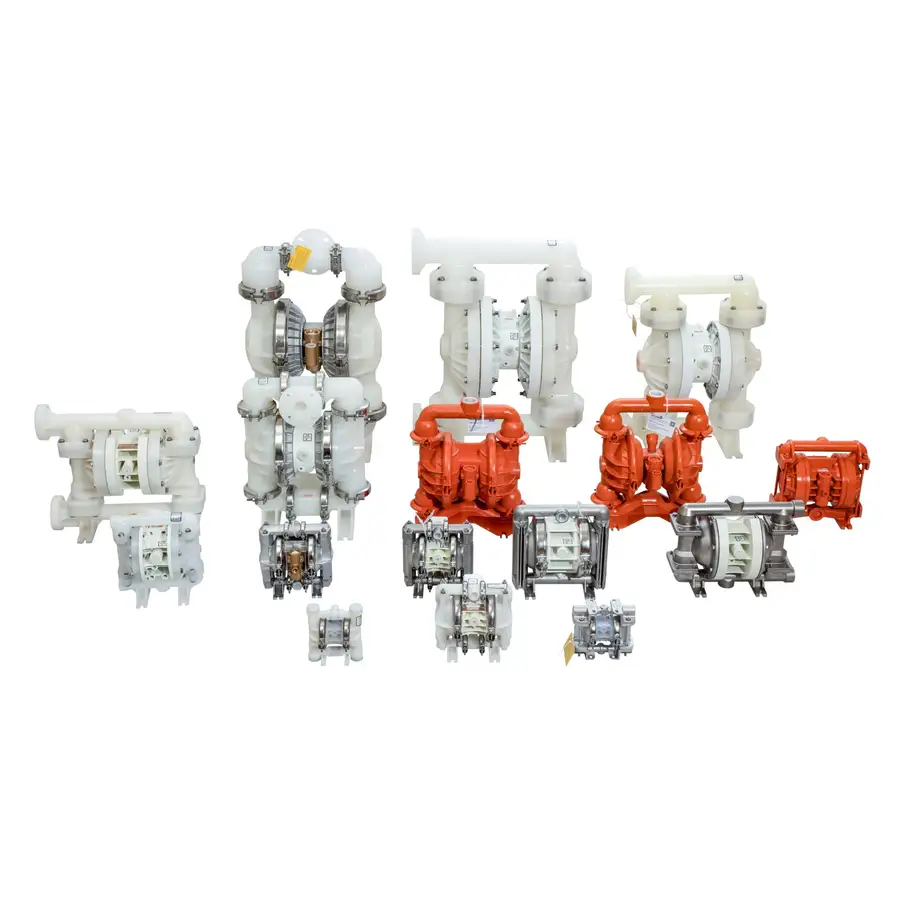

WLDEN P2 Metal Clutch Pneumatic Diaphragm Pump
Model: P2
WLDEN P2 Metal Clutch Pneumatic Diaphragm Pump WLDEN P2 Metal Clutch Pneumatic Diaphragm Pump Specifications: Material of liquid contact: 316 stainless steel Transport weight: 16 kg (36 lbs) Elastomer material: Saniflex™, Teflon PTFE Material of liquid contact: Middle part: polypropylene, acetal Air valve: polypropylene, acetal Performance parameters: Media import dimensions: 1” (25 mm) Media outlet dimensions: 3/4”…
TECHNICAL DATA
Specifications, performance and construction
Confirm the final operating point, materials, motor and connection standard before ordering.
WLDEN P2 Metal Clutch Pneumatic Diaphragm Pump
WLDEN P2 Metal Clutch Pneumatic Diaphragm Pump Specifications:
Material of liquid contact:
316 stainless steel Transport weight: 16 kg (36 lbs)
Elastomer material:
Saniflex™, Teflon PTFE
Material of liquid contact:
Middle part: polypropylene, acetal
Air valve: polypropylene, acetal
Performance parameters:
Media import dimensions: 1” (25 mm)
Media outlet dimensions: 3/4” (19 mm)
Air inlet size: 1/4” (6 mm)
Maximum outlet pressure: 8.6 Bar (125 psig)
Maximum solid particle diameter can be passed: 1/8” (3.2 mm)
Maximum traffic:
Rubber/thermoplastic compound: 170 lpm (45 gpm)
Teflon PTFE: 163 lpm (43 gpm)
Maximum suction range:
Rubber/thermoplastic compounds
Dry suction 5.8 m (19.0’)
Wet suck 8.5 m (28.0’)
Teflon PTFE
Dry suction 3.0 m (10.0’)
Wet suck 8.5 m (28.0’)
