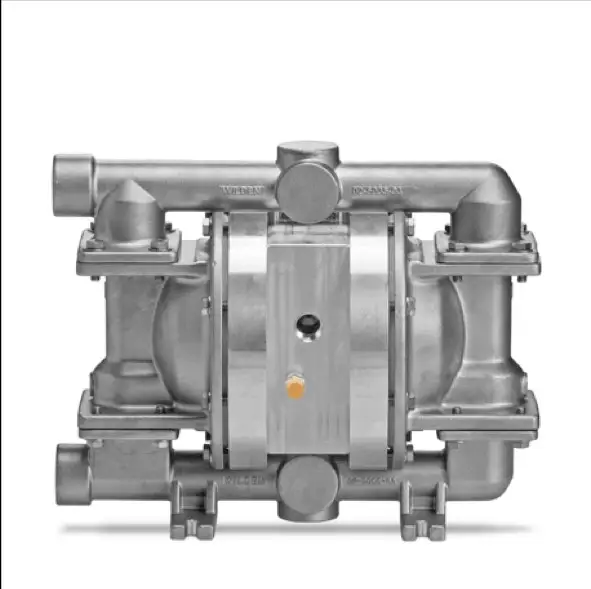

Reference image. Final construction follows the confirmed model and quotation.
Pneumatic Diaphragm Pumps
XPS220/SSAAA/TSS/TF/STF/0677 WILDEN Stainless Steel Pneumatic diaphragm pumps
Model: XPS220/SSAAA/TSS/TF/STF/0677
XPS220/SSAAA/TSS/TF/STF/0677 WILDEN Stainless Steel Pneumatic diaphragm pumps WILDEN Pump Description XPS220/SSAAA/TSS/TF/STF/0677 Item Number Pump 02-12936 Port Size 1" Air Kit 02-9993-99 Wet Kit 02-9814-55-202 Air Distribution System Pro-Flo SHIFT® Pump Construction Stainless Steel Diaphragms Full Stroke Ptfe, Saniflex Back-Up Valve/ Balls Teflon Valve Seats SS with Teflon O-ring Outer Piston Stainless Steel Air…
TECHNICAL DATA
Specifications, performance and construction
Confirm the final operating point, materials, motor and connection standard before ordering.
XPS220/SSAAA/TSS/TF/STF/0677 WILDEN Stainless Steel Pneumatic diaphragm pumps
| WILDEN Pump Description | XPS220/SSAAA/TSS/TF/STF/0677 |
|---|---|
| Item Number Pump | 02-12936 |
| Port Size | 1" |
| Air Kit | 02-9993-99 |
| Wet Kit | 02-9814-55-202 |
| Air Distribution System | Pro-Flo SHIFT® |
| Pump Construction | Stainless Steel |
| Diaphragms | Full Stroke Ptfe, Saniflex Back-Up |
| Valve/ Balls | Teflon |
| Valve Seats | SS with Teflon O-ring |
| Outer Piston | Stainless Steel |
| Air Chamber | Aluminum |
| Center Block | Aluminum |
| Air Valve | Aluminum |
| Capacity GPM | 52 |
| Capacity Liters/min | 197 |
| Pump Weight Lbs | 68,0 |
| Pump Weight Kilo | 30 |
| Specialty Code | Center Ported, NPT Inlet & Discharge |
