Pneumatic Diaphragm Pumps

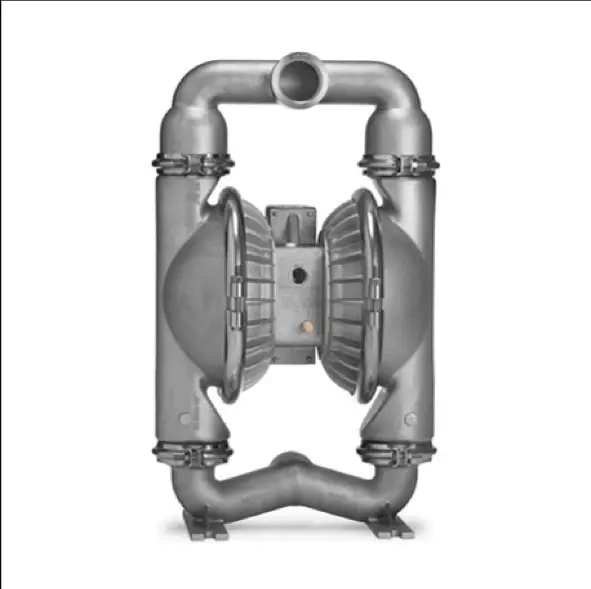

XPS8/SSAAA/NES/NE/NE/0014 WILDEN Stainless Steel Pneumatic diaphragm pumps
Model: XPS8/SSAAA/NES/NE/NE/0014
XPS8/SSAAA/NES/NE/NE/0014 WILDEN Stainless Steel Pneumatic diaphragm pumps WILDEN Pump Description XPS8/SSAAA/NES/NE/NE/0014 Item Number Pump 08-14514 Port Size 2" Air Kit 04-9993-99 Wet Kit 08-9804-51 Air Distribution System Pro-Flo SHIFT® Pump Construction Stainless Steel Diaphragms Neoprene Valve/ Balls Neoprene Valve Seats Neoprene Outer Piston Stainless Steel Air Chamber Aluminum Center Block Aluminum Air Valve…
TECHNICAL DATA
Specifications, performance and construction
Confirm the final operating point, materials, motor and connection standard before ordering.
XPS8/SSAAA/NES/NE/NE/0014 WILDEN Stainless Steel Pneumatic diaphragm pumps
| WILDEN Pump Description | XPS8/SSAAA/NES/NE/NE/0014 |
|---|---|
| Item Number Pump | 08-14514 |
| Port Size | 2" |
| Air Kit | 04-9993-99 |
| Wet Kit | 08-9804-51 |
| Air Distribution System | Pro-Flo SHIFT® |
| Pump Construction | Stainless Steel |
| Diaphragms | Neoprene |
| Valve/ Balls | Neoprene |
| Valve Seats | Neoprene |
| Outer Piston | Stainless Steel |
| Air Chamber | Aluminum |
| Center Block | Aluminum |
| Air Valve | Aluminum |
| Capacity GPM | 184 |
| Capacity Liters/min | 700 |
| Pump Weight Lbs | 117,0 |
| Pump Weight Kilo | 53 |
| Specialty Code | BSPT |
