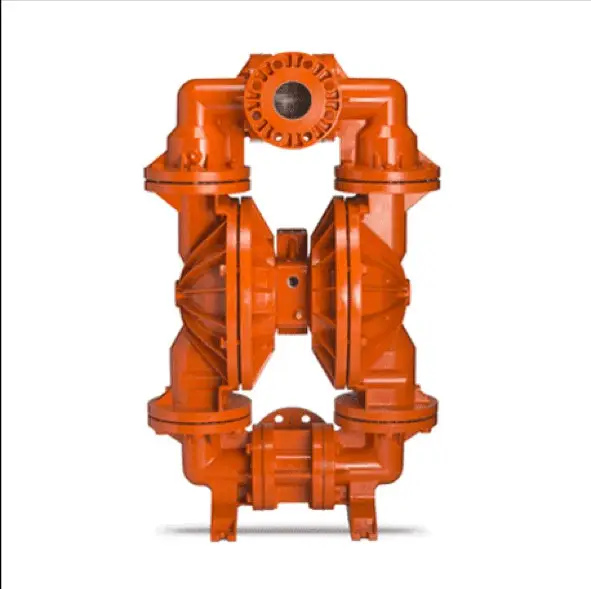

Reference image. Final construction follows the confirmed model and quotation.
Pneumatic Diaphragm Pumps
XPX1500/AAAAA/BNU/BN/BN/0504 15-9988-99 Aluminum wilden air-operated diaphragm pump
Model: XPX1500/AAAAA/BNU/BN/BN/0504
XPX1500/AAAAA/BNU/BN/BN/0504 15-9988-99 Aluminum wilden air-operated diaphragm pump WILDEN Pump Description XPX1500/AAAAA/BNU/BN/BN/0504 Item Number Pump 15-12205 Port Size 3" Air Kit 15-9988-99 Wet Kit 15-9804-52-212 Air Distribution System Pro-Flo X™ Pump Construction Aluminum Diaphragms Buna-N Ultraflex Valve/ Balls Buna-N Valve Seats Buna-N Outer Piston Aluminum Air Chamber Aluminum Center Block Aluminum Air…
TECHNICAL DATA
Specifications, performance and construction
Confirm the final operating point, materials, motor and connection standard before ordering.
XPX1500/AAAAA/BNU/BN/BN/0504 15-9988-99 Aluminum wilden air-operated diaphragm pump
| WILDEN Pump Description | XPX1500/AAAAA/BNU/BN/BN/0504 |
|---|---|
| Item Number Pump | 15-12205 |
| Port Size | 3" |
| Air Kit | 15-9988-99 |
| Wet Kit | 15-9804-52-212 |
| Air Distribution System | Pro-Flo X™ |
| Pump Construction | Aluminum |
| Diaphragms | Buna-N Ultraflex |
| Valve/ Balls | Buna-N |
| Valve Seats | Buna-N |
| Outer Piston | Aluminum |
| Air Chamber | Aluminum |
| Center Block | Aluminum |
| Air Valve | Aluminum |
| Capacity GPM | 250 |
| Capacity Liters/min | 950 |
| Pump Weight Lbs | 223,0 |
| Pump Weight Kilo | 101 |
| Specialty Code | DIN flange |
