Pneumatic Diaphragm Pumps

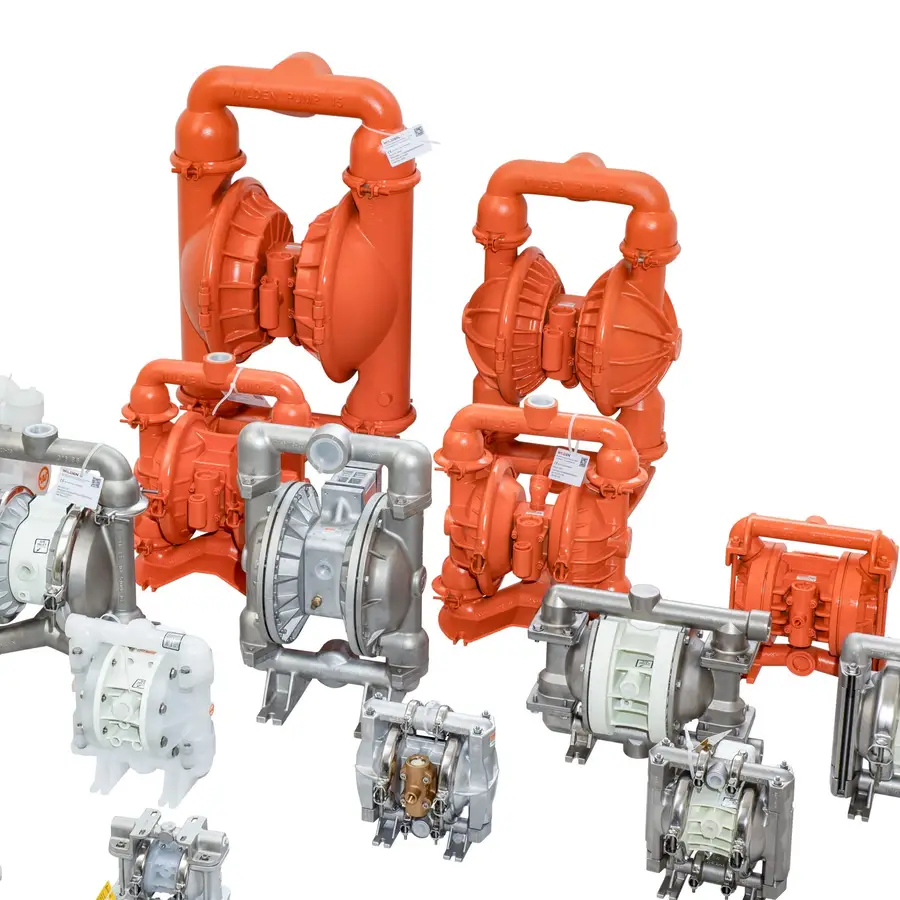

XPX8 WILDEN SANIFLO series pneumatic diaphragm pump
Model: XPX8
XPX8 WILDEN SANIFLO series pneumatic diaphragm pump WILDEN SANIFLO Series Pneumatic Diaphragm Pumps Technology: Pneumatic Diaphragm Features: 1. Equipped with Pro-Flo X air delivery system; 2. Can deliver delicate/shear-sensitive products; 3. With a rotating table; 4. Integral external pressure plate diaphragm option; 5. A variety of sanitary elastomers to choose from; 6. Excellent product tolerance; 7. CIP…
TECHNICAL DATA
Specifications, performance and construction
Confirm the final operating point, materials, motor and connection standard before ordering.
XPX8 WILDEN SANIFLO series pneumatic diaphragm pump
WILDEN SANIFLO Series Pneumatic Diaphragm Pumps
Technology: Pneumatic Diaphragm
Features:
1. Equipped with Pro-Flo X air delivery system;
2. Can deliver delicate/shear-sensitive products;
3. With a rotating table;
4. Integral external pressure plate diaphragm option;
5. A variety of sanitary elastomers to choose from;
6. Excellent product tolerance;
7. CIP (cleaning in place);
8. Various levels of certification: EHEDG, 3A, CE, ATEX, UPS Class Vl and FDA;
9. Offset valve housing for easy alignment.
WILDEN SANIFLO Series Pneumatic Diaphragm Pump Technical Data:
Optional materials include 316 and 316L
Sizes: 13 mm (1/2") to 152 mm (6")
Three-claw connector
Polishing degree can reach Ra 0.8 μm (32 μ-in)
The maximum temperature that the elastomer can withstand is 177° C (350° F)
Optional elastomer materials: nitrile rubber, chloroprene rubber, EPDM, Viton®, Wil-Flex ,
Saniflex , polyurethane, polytetrafluoroethylene (PTFE)
WILDEN SANIFLO Series Pneumatic Diaphragm Pump Performance Data:
Maximum flow: 920 lpm (243 gpm)
Maximum outlet pressure: 8.6 bar (125 psi)
Maximum suction range: 9.5 m (31.2') for wet suction and 7.6 m (25.0') for dry suction
Maximum diameter of solid particles that can pass (compressible): 152 mm (6")
