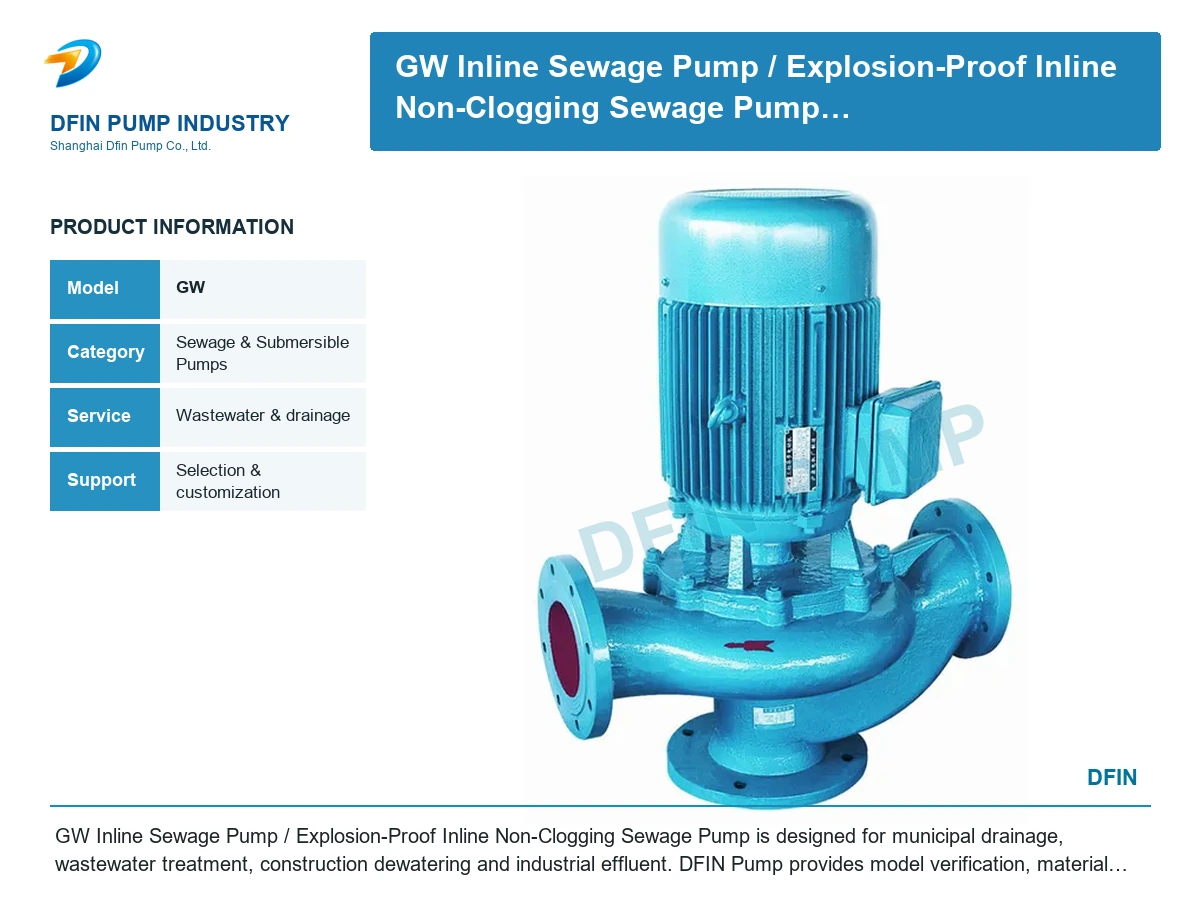

GW Inline Sewage Pump/ Explosion-Proof Inline Non-Clogging Sewage Pump

Name: GW Inline Sewage Pump/ Explosion-Proof Inline Non-Clogging Sewage Pump
Brand: DFIN PUMP
SKU: GW

Model: GW

GW Inline Sewage Pump/ Explosion-Proof Inline Non-Clogging Sewage Pump is designed for municipal drainage, wastewater treatment, construction dewatering and industrial effluent. DFIN Pump provides model verification, material selection and technical support based on the actual duty point.

TECHNICAL DATA

Specifications, performance and construction

Confirm the final operating point, materials, motor and connection standard before ordering.

Product Overview

GW Inline Sewage Pump/ Explosion-Proof Inline Non-Clogging Sewage Pump is an industrial sewage & submersible pump selected for municipal drainage, wastewater treatment, construction dewatering and industrial effluent. The final configuration should be verified against the actual liquid, duty point, temperature, installation and power supply.

Typical Applications

Municipal drainage, wastewater treatment, construction dewatering and industrial effluent.

Design Features

Solids-handling hydraulic passage
Submersible or dry-installed configurations
Automatic control options
Model and material selection supported by DFIN Pump engineers

Extracted Operating Data

A、 ≤40℃， ≤95%
B、 60℃， 1～1.3kg/dm3

Values are reference data from the authorized source catalog. Confirm the selected model before ordering.

Technical Performance Data

No.	model	Caliber (mm)	Flow (m3/h)	Lift (m)	Rotation speed (r/min)	Power (kw)	efficiency （%）	Water pump electrical controller	Automatic coupler with WQ
1	25GW8-22-1.1	25	8	22	2825	1.1	38.1	QZD-1.1	/
2	32GW12-15-1.1	32	12	15	2825	1.1	40	QZD-1.1	/
3	40GW15-15-1.5	40	15	15	2840	1.5	45.1	QZD-1.5	40
4	40GW15-30-2.2	40	15	30	2840	2.2	18	QZD-2.2	40
5	50GW20-7-0.75	50	20	7	1390	0.75	54	QZD-0.75	40
6	50GW10-10-0.75	50	10	10	1390	0.75	56	QZD-0.75	50
7	50GW20-15-1.5	50	20	15	2840	1.5	55	QZD-1.5	50
8	50GW15-25-2.2	50	15	25	2840	2.2	56	QZD-2.2	50
9	50GW18-30-3	50	18	30	2880	3.0	58	QZD-3.0	50
10	50GW25-32-5.5	50	25	32	2900	5.5	53	QZD-5.5	50
11	50GW20-40-7.5	50	20	40	2900	7.5	55	QZD-7.5	50
12	65GW25-15-2.2	65	25	15	2840	2.2	52	QZD-2.2	50
13	65GW37-13-3	65	37	13	2880	3.0	55	QZD-3.0	65
14	65GW25-30-4	65	25	30	2890	4.0	58	QZD-4.0	65
15	65GW30-40-7.5	65	30	40	2900	7.5	56	QZD-7.5	65
16	65GW35-50-11	65	35	50	2930	11	60	QZD-11	65
17	65GW35-60-15	65	35	60	2930	15	63	QZD-15	65
18	80GW40-7-2.2	80	40	7	1420	2.2	52	QZD-2.2	65
19	80GW43-13-3	80	43	13	2880	3.0	50	QZD-3.0	80
20	80GW40-15-4	80	40	15	2890	4.0	57	QZD-4.0	80
21	80GW65-25-7.5	80	65	25	2900	7.5	56	QZD-7.5	80
22	100GW80-10-4	100	80	10	1440	4.0	62	QZD-4.0	80
23	100GW110-10-5.5	100	110	10	1440	5.5	66	QZD-5.5	100
24	100GW100-15-7.5	100	100	15	1440	7.5	67	QZD-7.5	100
25	100GW85-20-7.5	100	85	20	1400	7.5	68	QZD-7.5	100
26	100GW100-25-11	100	100	25	1460	11	65	JJ1-11	100
27	100GW100-30-15	100	100	30	1470	15	66	JJ1-26	100
28	100GW100-35-18.5	100	100	35	1460	18.5	65	JJ1-18.5	100
29	125GW130-15-11	125	130	15	1460	11	62	JJ1-11	100
30	125GW130-25-15	125	130	20	1440	15	63	JJ1-15	125
31	150GW145-6-7.5	150	145	6	1470	7.5	63	QZD7.5	125
32	150GW180-15-15	150	180	15	1470	15	65	JJ1-15	150
33	150GW180-20-18.5	150	180	20	1470	18.5	75	JJ1-18.5	150
34	150GW180-25-22	150	180	25	1470	22	76	JJ1-22	150
35	150GW130-30-22	150	130	30	1470	22	75	JJ1-22	150
36	150GW180-30-30	150	180	30	970	30	73	JJ1-30	150
37	150GW200-30-37	150	200	30	970	37	70	JJ1-37	150
38	200GW300-7-11	200	300	7	1470	11	73	JJ1-11	150
39	200GW250-11-15	200	250	11	1470	15	74	JJ1-15	200
40	200GW400-10-22	200	400	10	1470	22	76	JJ1-22	200
41	200GW400-13-30	200	400	13	1470	30	73	JJ1-30	200
42	200GW250-11-15	200	250	15	1470	18.5	72	JJ1-18.5	200
43	200GW300-15-22	200	300	15	1470	22	73	JJ1-22	200
44	200GW250-22-30	200	250	22	1470	30	71	JJ1-30	200
45	200GW350-25-37	200	350	25	1470	37	75	JJ1-37	200
46	200GW400-30-55	200	400	30	1480	55	70	JJ1-55	200
47	250GW600-9-30	250	600	9	980	30	74	JJ1-30	250
48	250GW600-12-37	250	600	12	1480	37	78	JJ1-37	250
49	250GW600-15-45	250	600	15	1480	45	75	JJ1-45	250
50	250GW600-20-55	250	600	20	1480	55	73	JJ1-55	250
51	250GW600-25-75	250	600	25	1480	75	73	JJ1-75	250
52	300GW800-12-45	300	800	12	1480	45	76	JJ1-45	300
53	300GW500-15-45	300	500	15	980	45	70	JJ1-45	300
54	300GW800-15-55	300	800	15	980	55	73	JJ1-55	300
55	300GW600-20-55	300	600	20	980	55	75	JJ1-55	300
56	300GW800-20-75	300	800	20	980	75	78	JJ1-75	300
57	300GW950-20-90	300	950	20	980	90	80	JJ1-90	300
58	300GW1000-25-110	300	1000	25	980	110	82	JJ1-110	300
59	300GW1100-10-55	300	1100	10	980	55	84.5	JJ1-55	300
60	350GW1500-15-90	350	1500	15	980	90	83.1	JJ1-90	350
61	350GW1200-18-90	350	1200	18	980	90	83.2	JJ1-90	350
62	350GW1100-28-132	350	1100	28	740	132	78.5	JJ1-132	350
63	350GW1000-36-160	350	1000	36	740	160	82.1	JJ1-160	350

Selection Information Required

Please provide medium, concentration, flow, total head or pressure, temperature, viscosity or solids, voltage, frequency and installation method. DFIN Pump will confirm the suitable model and materials.

Catalog reference: authorized YZJ product data · Model GW
