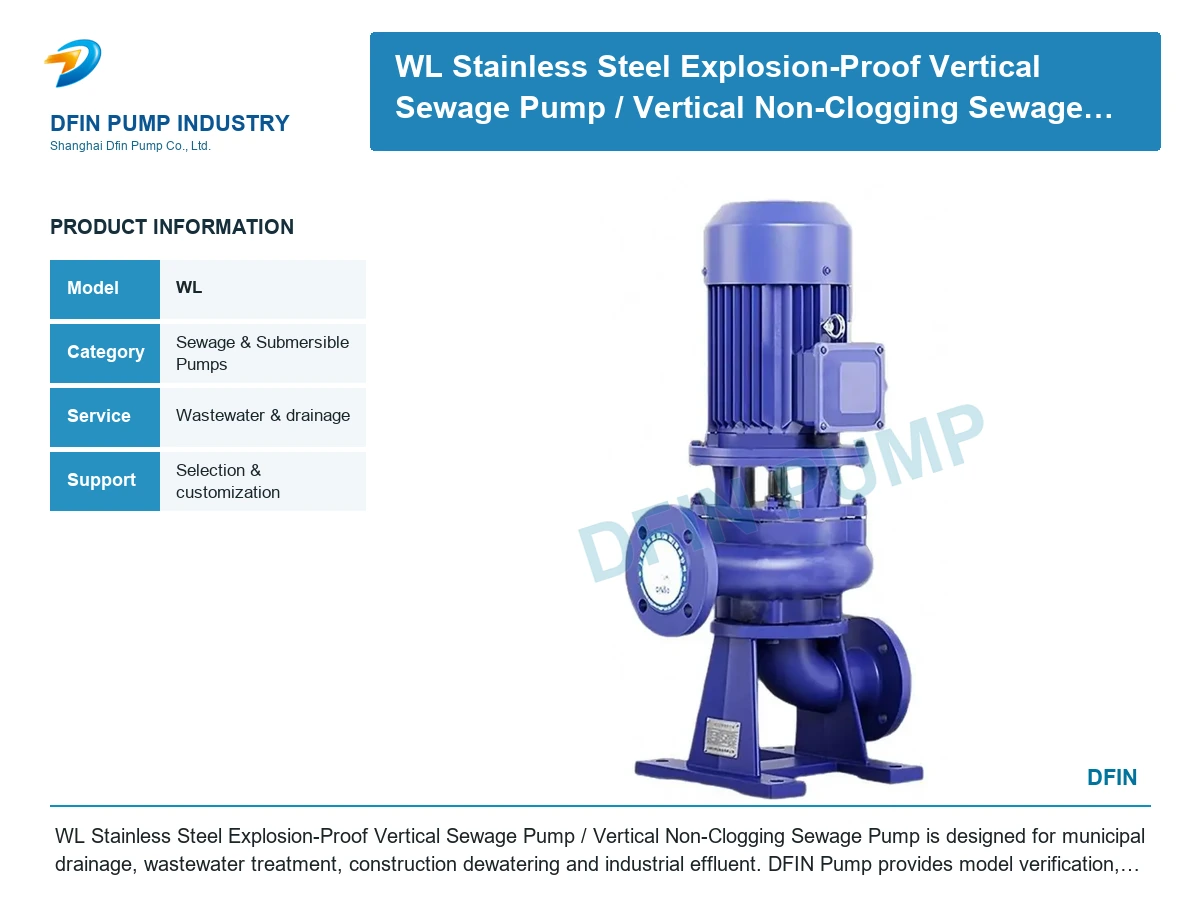

WL Stainless Steel Explosion-Proof Vertical Sewage Pump/ Vertical Non-Clogging Sewage Pump

Reference image. Final construction follows the confirmed model and quotation.

Stainless Steel Submersible Pumps

WL Stainless Steel Explosion-Proof Vertical Sewage Pump/ Vertical Non-Clogging Sewage Pump

Model: WL

WL Stainless Steel Explosion-Proof Vertical Sewage Pump/ Vertical Non-Clogging Sewage Pump is designed for municipal drainage, wastewater treatment, construction dewatering and industrial effluent. DFIN Pump provides model verification, material selection and technical support based on the actual duty point.

TECHNICAL DATA

Specifications, performance and construction

Confirm the final operating point, materials, motor and connection standard before ordering.

Product Overview

WL Stainless Steel Explosion-Proof Vertical Sewage Pump/ Vertical Non-Clogging Sewage Pump is an industrial sewage & submersible pump selected for municipal drainage, wastewater treatment, construction dewatering and industrial effluent. The final configuration should be verified against the actual liquid, duty point, temperature, installation and power supply.

Typical Applications

Municipal drainage, wastewater treatment, construction dewatering and industrial effluent.

Design Features

  • Solids-handling hydraulic passage
  • Submersible or dry-installed configurations
  • Automatic control options
  • Model and material selection supported by DFIN Pump engineers

Extracted Operating Data

  • ：－15℃～+60℃ ：≤1.3×103kg/m3 PH ：5～9 ：≤0.6Mpa
  • ：2～1500 m3/h ：3～45m n：970～2900r/min ：－15℃～+60℃ ：≤1.3×103kg/m3 PH
  • ：2～1500 m3/h ：3～45m n：970～2900r/mi

Values are reference data from the authorized source catalog. Confirm the selected model before ordering.

Technical Performance Data

No. Part name No. Part name
1 Base 5 Motor
2 Pump body 6 Spindle
3 impeller 7 mechanical seal
4 Oil room 8 impeller nut
Vertical non-clogging sewage pump model Port Size Flow Head Speed Motor Power Efficiency automatic coupler
mm m3/h M r/min kw %
25-8-22-1.1 25 8 22 2900 1.1 45
32-12-15-1.1 32 12 15 2900 1.1
40-15-15-1.5 40 15 15 2900 1.5 54
40-15-30-2.2 40 15 30 2900 2.2 54
50-20-7-0.75 50 20 7 2900 0.75 51 GAK-50
50-10-10-0.75 50 10 10 2900 0.75 52 GAK-50
50-20-15-1.5 50 20 15 290 1.5 53 GAK-50
50-15-25-2.2 50 15 25 2900 2.2 54 GAK-50
50-18-30-3 50 18 30 2900 3 55 GAK-50
50-40-15-4 50 40 15 2900 4 55 GAK-50
50-25-32-5.5 50 25 32 2900 5.5 55 GAK-50
50-20-40-7.5 50 50 20 2900 7.5 58 GAK-50
65-25-15-2.2 65 25 15 2900 2.2 50 GAK-65
65-37-13-3 65 37 13 2900 3 57 GAK-65
65-25-30-4 65 25 30 2900 4 61 GAK-65
65-30-40-7.5 65 30 40 2900 7.5 56 GAK-65
65-35-50-11 65 35 50 2900 11 45 GAK-65
65-35-60-15 65 35 60 2900 15 65 GAK-65
80-60-13-5.5 80 60 13 2900 5.5 67
80-40-7-2.2 80 40 7 1450 2.2 59 GAK-80
80-43-13-3 80 43 13 2900 3 70
80-40-15-4 80 40 15 2900 4 61
80-65-25-7.5 80 65 25 2900 7.5 63 GAK-80
100-80-10-4 100 100 10 1450 4 65 GAK-100
Vertical non-clogging sewage pump model Port Size Flow Head Speed Motor Power Efficiency automatic coupler
mm m3/h M r/min kw %
100-110-10-5.5 100 110 10 1450 5.5 65 GAK-100
100-100-15-7.5 100 100 15 1450 7.5 68 GAK-100
100-80-20-7.5 100 80 20 1450 7.5 65 GAK-100
100-100-25-11 100 100 25 1450 11 70 GAK-100
100-100-30-15 100 100 30 1450 15 65 GAK-100
100-100-35-18.5 100 100 35 1450 18.5 68 GAK-100
125-130-15-11 125 130 15 1450 11 72 GAK-125
125-130-20-15 125 130 20 1450 15 75 GAK-125
150-145-9-7.5 150 145 9 1450 7.5 76 GAK-150
150-180-15-15 150 180 15 1450 15 69 GAK-150
150-180-20-18.5 150 180 20 1450 18.5 72 GAK-150
150-180-25-22 150 180 25 1450 22 78 GAK-150
150-130-30-22 150 130 30 1450 22 78 GAK-150
150-180-30-30 150 180 30 1450 30 78 GAK-150
150-200-30-37 150 200 30 1450 37 73 GAK-150
200-300-7-11 200 300 7 980 11 66 GAK-200
200-250-11-15 200 250 11 1450 15 64 GAK-200
200-250-15-18.5 200 250 15 1450 18.5 73 GAK-200
200-400-10-22 200 400 10 1450 22 75 GAK-200
200-400-13-30 200 400 13 14501 30 76 GAK-200
200-300-15-22 200 300 15 1450 22 76 GAK-200
200-250-22-30 200 250 22 1450 30 71 GAK-200
200-350-25-37 200 350 25 1450 37 71 GAK-200
200-400-30-45 200 400 30 1450 45 74 GAK-200
Vertical non-clogging sewage pump model Port Size Flow Head Speed Motor Power Efficiency automatic coupler
mm m3/h M r/min kw %
250-600-9-30 250 600 9 980 30 78 GAK-250
250-600-12-37 250 600 12 1450 37 76 GAK-250
250-600-15-45 250 600 15 1450 45 73 GAK-250
250-600-20-55 250 600 20 1450 55 73 GAK-250
250-600-25-75 250 600 25 1450 75 71 GAK-250
300-800-12-45 300 800 12 980 45 74 GAK-300
300-480-15-45 300 480 15 1450 45 66 GAK-300
300-800-15-55 300 800 15 1450 55 73 GAK-300
300-600-20-55 300 600 20 1450 55 73 GAK-300
300-800-20-75 300 800 20 1450 75 75 GAK-300
300-950-20-90 300 950 20 1450 90 76 GAK-300
300-1000-25-110 300 1000 25 1450 110 76 GAK-300
300-1100-10-55 300 1100 10 1450 55 73 GAK-300
350-1500-15-90 350 1500 15 740 90 87 GAK-350
350-1200-18-90 350 1200 18 980 90 85 GAK-350
350-1100-28-132 350 1100 28 980 132 84 GAK-350
350-1000-36-160 350 1000 36 980 160 84 GAK-350
400-1760-7.5-55 400 1760 7.5 980 55 83 GAK-400
400-1500-10-75 400 1500 10 980 75 86 GAK-400
400-2000-13-110 400 2000 13 980 110 84 GAK-400
400-2000-15-132 400 2000 15 980 132 83 GAK-400
400-1700-22-160 400 1700 22 980 160 83 GAK-400
400-1500-26-160 400 1500 26 980 160 84 GAK-400
Vertical non-clogging sewage pump model Port Size Flow Head Speed Motor Power Efficiency automatic coupler
mm m3/h M r/min kw %
400-1700-30-200 400 1700 30 980 200 86 GAK-400
400-1800-32-250 400 1800 32 980 250 82 GAK-400
500-2500-10-110 500 2500 10 740 110 85 GAK-500
500-2600-15-160 500 2600 15 740 160 84 GAK-500
500-2400-22-220 500 2400 22 740 220 85 GAK-500
500-2650-24-250 500 2650 24 740 250 85 GAK-500

Selection Information Required

Please provide medium, concentration, flow, total head or pressure, temperature, viscosity or solids, voltage, frequency and installation method. DFIN Pump will confirm the suitable model and materials.

Catalog reference: authorized YZJ product data · Model WL
