Chemical Pumps

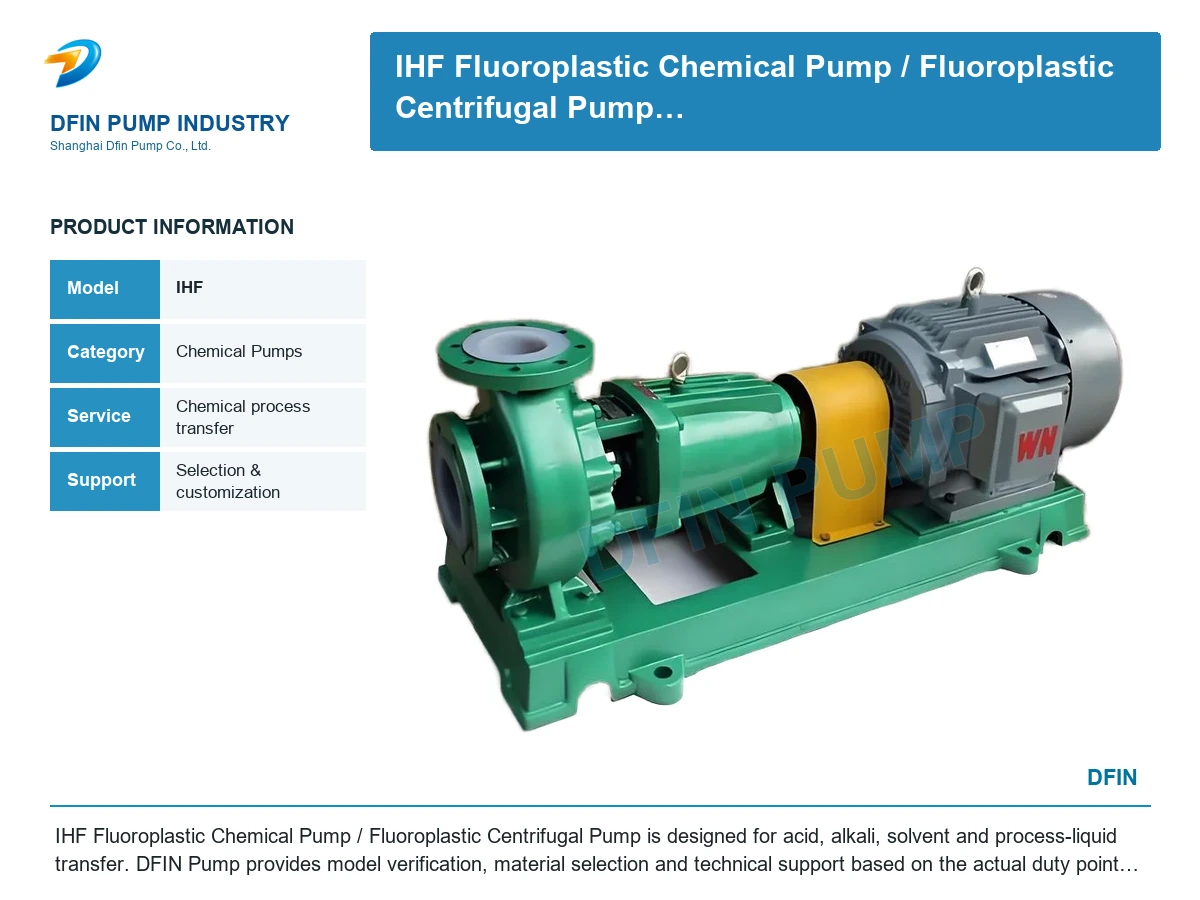

IHF Fluoroplastic Chemical Pump/ Fluoroplastic Centrifugal Pump
Model: IHF
IHF Fluoroplastic Chemical Pump/ Fluoroplastic Centrifugal Pump is designed for acid, alkali, solvent and process-liquid transfer. DFIN Pump provides model verification, material selection and technical support based on the actual duty point.
TECHNICAL DATA
Specifications, performance and construction
Confirm the final operating point, materials, motor and connection standard before ordering.
Product Overview
IHF Fluoroplastic Chemical Pump/ Fluoroplastic Centrifugal Pump is an industrial chemical pump selected for acid, alkali, solvent and process-liquid transfer. The final configuration should be verified against the actual liquid, duty point, temperature, installation and power supply.
Typical Applications
Acid, alkali, solvent and process-liquid transfer.
Design Features
- Corrosion-resistant wetted components
- Seal and material options
- Industrial process compatibility
- Model and material selection supported by DFIN Pump engineers
Extracted Operating Data
- ：1.6Mpa
- ：6.3～400m3/h
- ：0.55～110KW
- ：50～200mm
Values are reference data from the authorized source catalog. Confirm the selected model before ordering.
Technical Performance Data
| Model | Speed (r／min) | Flow | Head (m) | Efficiency (％) | Power(KW) | Required NPSH (m) | Impeller Diameter (mm) | Weight (kg) | ||
| (m3／h) | (L／s) | ShaftPower | Motor Power | |||||||
| IHF32-25-125 | 2900 | 3.5 5 6.5 | 0.97 1.39 1.80 | 21 20 18 | 40 44 42 | 0.50 0.62 0.76 | 1.5 | 2.3 | 128 | 80 |
| 1450 | 1.75 2.5 3.25 | 0.49 0.69 0.90 | 5.25 5 4.5 | 37 40 38 | 0.068 0.085 0.105 | 0.75 | 2.3 | 128 | 75 | |
| IHF32-25-125A | 2900 | 3.1 4.5 5.8 | 0.06 1.25 1.61 | 17.6 16 14.4 | 38 41 40 | 0.70 0.48 0.57 | 1.1 | 2.3 | 115 | 75 |
| IHF32-25-160 | 2900 | 3.5 5 6.5 | 0.97 1.39 1.80 | 33 32 30 | 34 40 42 | 0.93 1.10 1.26 | 2.2 | 2.3 | 162 | 90 |
| 1450 | 1.75 2.5 3.25 | 0.49 0.69 0.90 | 8.25 8 7.5 | 30 38 40 | 0.13l 0.143 0.166 | 0.75 | 2.3 | 162 | 75 | |
| IHF32-25-160A | 2900 | 3.1 4.5 5.8 | 0.86 1.25 1.61 | 29 28 26 | 30 35 36 | 0.8l 0.97 1.14 | 1.5 | 2.3 | 152 | 80 |
| IHF40-32-125 | 2900 | 4.4 6.5 8.3 | 1.22 1.80 2.31 | 21 20 18 | 40 45 43 | 0.63 0.79 0.95 | 2.2 | 2.5 | 128 | 90 |
| 1450 | 2.2 3.25 4.15 | 0.60 0.90 1.15 | 5.25 5 4.5 | 37 41 40 | 0.085 0.108 0.127 | 0.75 | 2.5 | 128 | 75 | |
| IHF40-32-125A | 2900 | 3.9 5.6 7.4 | 1.08 1.56 2.06 | 17.6 16 14.4 | 38 42 40 | 0.49 0.58 0.72 | 1.5 | 2.5 | 115 | 80 |
| IHF40-32-160 | 2900 | 4.4 6.5 8.3 | 1.22 1.80 2.31 | 33 32 30 | 34 40 39 | 1.16 1.42 1.71 | 2.2 | 2.5 | 162 | 90 |
| 1450 | 2.2 2.5 3.25 | 0.60 0.90 1.15 | 8.25 8 7.5 | 33 36 37 | 0.14 0.15 0.18 | 0.75 | 2.5 | 162 | 75 | |
| IHF40-32-160A | 2900 | 3.9 5.6 7.4 | 1.08 1.56 2.06 | 29 28 26 | 32 38 37 | 0.96 1.23 1.41 | 1.5 | 2.5 | 152 | 80 |
| IHF50-32-125 | 2900 | 8.8 12.5 16.3 | 1.08 1.56 2.06 | 21.5 20 17.5 | 45 54 53 | 1.15 1.26 1.47 | 2.2 | 3.0 | 128 | 90 |
| 1450 | 4.4 6.25 8.15 | 17 1.74 2.26 | 5.37 5 4.37 | 37 46 45 | 0.17 0.18 0.22 | 0.75 | 3.0 | 128 | 75 | |
| IHF50-32-125A | 2900 | 8 11 14.5 | 2.22 3.05 4.03 | 17 16 14 | 42 52 51 | 0.88 0.92 1.08 | 1.5 | 3.0 | 115 | 80 |
| IHF50-32-160 | 2900 | 8.8 12.5 16.3 | 2.44 3.47 4.53 | 33 32 30 | 41 48 47 | 1.93 2.27 2.84 | 4 | 3.0 | 160 | 120 |
| 1450 | 4.4 6.25 8.15 | 1.2 1.74 2.26 | 8.25 8 7.5 | 31 41 42 | 0.31 0.33 0.39 | 0.75 | 3.0 | 160 | 90 | |
| IHF50-32-160A | 2900 | 8.2 11.7 15.2 | 2.28 3.25 4.22 | 29 28 26 | 39 47 46 | 1.16 1.88 2.34 | 3 | 3.0 | 150 | l00 |
| IHF50-32-200 | 2900 | 8.8 12.5 16.3 | 2.44 3.47 4.53 | 52 50 48 | 34 42 41 | 3.70 4.10 5.20 | 7.5 | 3.0 | 190 | 150 |
| 1450 | 4.4 6.25 8.15 | 1.2 1.74 2.26 | 13 12.5 12 | 25 33 36 | 0.62 0.65 0.74 | 1.5 | 3.0 | 190 | 100 | |
| Model | Speed (r／min) | Flow | Head (m) | Efficiency (％) | Power(KW) | Required NPSH (m) | Impeller Diameter | Weight (kg) | ||
| (m3／h) | (1／s) | ShaftPower | Motor Power | |||||||
| IHF50-32-200A | 2900 | 8.2 11.7 15.2 | 2.28 3.25 4.22 | 45 44 42 | 31 40 39 | 3.24 3.50 4.45 | 5.5 | 3.0 | 178 | 130 |
| IHF50-32-250 | 2900 | 8.8 12.5 16.3 | 2.44 3.47 4.53 | 82 80 76 | 27 35 34 | 7.30 7.80 10 | 11 | 3.0 | 250 | 220 |
| 1450 | 4.4 6.25 8.15 | 1.2 1.74 2.26 | 20.5 20 19 | 20 27 30 | 1.22 1.26 1.40 | 2.2 | 3.0 | 250 | 100 | |
| IHF50-32-250A | 2900 | 8.2 11.7 15.2 | 2.28 3.25 4.22 | 7l 70 68 | 25 34 33 | 4.53 6.56 8.52 | 7.5 | 3.0 | 235 | 170 |
| IHF65-50-l25 | 2900 | 17.5 25 3 | 4.86 6.94 9.0 | 21.5 20 17.5 | 56 64 63 | 1.83 2.13 2.42 | 3 | 3.5 | 128 | 100 |
| 1450 | 8.75 12.5 16 | 2.43 3.47 4.44 | 5.37 5 4.37 | 45 57 58 | 0.28 0.30 0.33 | 0.75 | 3.5 | 128 | 80 | |
| IHF65-50-125A | 2900 | 15.6 22.3 29 | 4.33 6.19 8.1 | 17 16 14 | 53 62 61 | 1.36 1.57 1.79 | 2.2 | 3.5 | 115 | 90 |
| IHF65-50-160 | 2900 | 17.5 25 32 | 4.86 6.94 9.0 | 33 32 27.5 | 50 59 57 | 3.15 3.69 4.20 | 5.5 | 3.5 | 160 | 145 |
| 1450 | 8.75 12.5 16 | 2.43 3.47 4.44 | 8.25 8 6.87 | 40 53 51 | 0.49 0.51 0.59 | 1.1 | 3.5 | 160 | 90 | |
| IHF65-50-160A | 2900 | 16.4 23.3 30.4 | 4.56 6.5 8.44 | 29 28 24 | 48 58 56 | 2.70 3.10 3.54 | 4 | 3.5 | 150 | 130 |
| IHF65-40-200 | 2900 | 17.5 25 32 | 4.86 6.94 9.0 | 52 50 45.5 | 45 54 54 | 5.50 6.30 7.35 | 11 | 3.5 | 195 | 225 |
| 1450 | 8.75 12.5 16 | 2.43 3.47 4.44 | 13 12.5 11.4 | 36 46 47 | 0.86 0.93 1.05 | 1.5 | 3.5 | 195 | 100 | |
| IHF65-40-200A | 2900 | 16.4 23.3 30.4 | 4.56 6.5 8.44 | 46 44 40 | 43 53 52 | 4.30 5.00 5.20 | 7.5 | 3.5 | 183 | 170 |
| IHF65-40-250 | 2900 | 17.5 95 32 | 4.86 6.94 9.0 | 82 80 76 | 39 50 52 | 10.10 10.90 12.74 | 18.5 | 3.5 | 250 | 240 |
| 1450 | 8.75 12.5 16 | 2.43 3.47 4.44 | 20.5 20 19 | 32 42 44 | 1.52 1.62 1.88 | 3 | 3.5 | 250 | 130 | |
| IHF65-40-250A | 2900 | 16.4 23.3 30.4 | 4.56 6.5 8.44 | 71 70 68 | 36 48 50r- | 8.80 9.30 11.25 | 15 | 3.5 | 235 | 230 |
| IHF80-65-125 | 2900 | 35 50 65 | 9.72 13.9 18.1 | 21.5 20 17 | 64 69 67 | 3.20 3.95 4.50 | 5.5 | 4.0 | 134 | 150 |
| 1450 | 17.5 25 32.5 | 4.86 6.9 9.0 | 5.37 5 4.25 | 54 64 62 | 0.47 0.53 0.6l | 1.1 | 4.0 | 134 | 90 | |
| IHF80-65-125A | 2900 | 31 45 58 | 8.6 12.5 16.1 | 17 16 14 | 62 68 67 | 2.30 2.88 3.30 | 4 | 4.0 | 120 | 130 |
| IHF80-65-160 | 2900 | 35 50 65 | 9.72 13.9 18.1 | 33 32 27.5 | 60 68 67 | 5.24 6.41 7.27 | 11 | 4.0 | 165 | 220 |
| Model | Speed (r／min) | Flow | Head (m) | Efficiency (％) | Power(KW) | Required NPSH (m) | Impeller diameter (mm) | Weight (kg) | ||
| (m3／h) | (l／s) | ShaftPower | Motor Power | |||||||
| IHF80-65-160 | 1450 | 17.5 25 32.5 | 4.86 6.9 9.0 | 8.25 8 6.88 | 50 62 61 | 0.78 0.88 1.00 | 1.5 | 4.0 | 165 | 100 |
| IHF80-65-160A | 2900 | 31 45 58 | 8.6 12.5 16.1 | 29 28 24 | 58 67 66 | 4.10 5.12 5.34 | 7.5 | 4.0 | 165 | 190 |
| IHF80-50-200 | 2900 | 35 50 65 | 9.72 13.9 18.1 | 52 50 45.5 | 52 64 65 | 9.53 10.64 12.39 | 15 | 4.0 | 197 | 230 |
| 1450 | 17.5 2532.5 | 4.86 6.9, 9.0 | 13 12.5 11.38 | 51 59 58 | 1.21 1.44 1.74 | 3 | 4.0 | 197 | 130 | |
| IHF80-50-200A | 2900 | 31 45 58 | 8.6 12.5 16.1 | 46 44 40 | 50 63 62 | 7.35 8.56 10 | 11 | 4.0 | 185 | 220 |
| IHF80-50-250 | 2900 | 35 50 65 | 9.72 13.9 18.1 | 82 80 72 | 40 50 51 | 19.40 21.80 25 | 30 | 4.0 | 248 | 400 |
| 1450 | 17.5 25 32.5 | 4.86 6.9 9.0 | 20.5 20 18 | 40 50 51 | 2.40 2.70 3.12 | 4 | 4.0 | 248 | 145 | |
| IHF80-50-250A | 2900 | 31 45 58 | 8.6 12.5 16.1 | 71.5 70 63 | 39 50 51 | 15.40 17.60 19.90 | 22 | 4.0 | 232 | 310 |
| IHF100-80-125 | 2900 | 70 100 130 | 19.4 27.8 36.1 | 23 20 14 | 70 75 65 | 6.26 7.26 7.63 | 11 | 5.0 | 136 | 220 |
| 1450 | 35 50 65 | 9.7 13.9 18.0 | 5.75 5 3.5 | 65 70 64 | 0.85 0.97 0.98 | 1.5 | 4.5 | 136 | 100 | |
| IHF100-80-125A | 2900 | 62.6 89 116 | 17.4 24.7 32.2 | 18 16 11 | 68 73 65 | 4.50 5.30 5.74 | 7.5 | 5.0 | 122 | 200 |
| IHF100-80-160 | 2900 | 70 100 130 | 19.4 27.8 36.1 | 34 32 24 | 68 74 65 | 9.53 11.78 13.03 | 15 | 5.0 | 170 | 230 |
| 1450 | 35 50 65 | 9.7 13.9 18.0 | 8.5 8 6.5 | 60 68 67 | 1.35 1.60 1.69 | 2.2 | 4.5 | 170 | 110 | |
| IHF100-80-160A | 2900 | 65.4 93.5 121 | 18.2 26 33.6 | 32 28 21 | 66 73 65 | 8.60 9.30 10.6 | 11 | 5.0 | 159 | 220 |
| IHF100-65-200 | 2900 | 70 100 130 | 19.4 27.8 36.1 | 52 50 42 | 64 72 71 | 15.50 18.91 20.94 | 30 | 5.0 | 210 | 400 |
| 1450 | 35 50 65 | 9.7 13.9 18.0 | 13 12.5 10.5 | 60 68 63 | 2.06 2.50 2.95 | 4 | 4.5 | 210 | 140 | |
| IHF100-65-200A | 2900 | 65.4 93.5 121 | 18.2 26 33.6 | 46 44 37 | 63 71 70 | 13 15.02 17.40 | 22 | 5.0 | 197 | 310 |
| IHF100-65-250 | 2900 | 70 100 130 | 19.4 27.8 36.1 | 87 80 68 | 62 69 68 | 26.60 31.60 35 | 45 | 4.0 | 255 | 450 |
| 1450 | 30 50 60 | 8.33 13.9 16.7 | 21.2 20 18.5 | 58 63 62 | 3.00 4.30 4.72 | 5.5 | 4.5 | 255 | 170 | |
| IHF100-65-250A | 2900 | 65.4 93.5 121 | 16.2 26 33.6 | 76.5 70 59 | 60 68 67 | 20.25 26.2 28 | 37 | 4.5 | 238 | 410 |
|
type Number |
Speed n=2900 r/min |
Speed n=1450 r/min |
||||||||
|
flow quantity |
Yang Procedure |
Motor Power |
NPSHr(m) |
Efficiency (%) |
flow quantitym3/h |
Yang Procedure |
Motor
Power |
NPSHr (m) |
Efficiency(%) |
|
|
IHF40-25-125 |
6.3 |
20 |
1.5 |
3.0 |
51 |
3.6 |
5 |
0.37 |
3.0 |
42 |
|
IHF40-25-160 |
6.3 |
32 |
2.2 |
3.0 |
46 |
3.6 |
8 |
0.55 |
3.0 |
45 |
|
IHF40-25-200 |
6.3 |
50 |
4 |
3.0 |
39 |
3.6 |
12.5 |
0.75 |
3.0 |
41 |
|
IHF40-25-250 |
6.3 |
80 |
7.5 |
3.0 |
41 |
3.6 |
20 |
1.5 |
3.0 |
49 |
|
IHF50-32-125 |
12.5 |
20 |
2.2 |
3.0 |
51 |
6.3 |
5 |
0.55 |
3.0 |
45 |
|
IHF50-32-160 |
12.5 |
32 |
4 |
3.0 |
46 |
6.3 |
8 |
0.55 |
3.0 |
40 |
|
IHF50-32-200 |
12.5 |
50 |
7.5 |
3.0 |
39 |
6.3 |
12.5 |
1.1 |
3.0 |
33 |
|
IHF65-50-125 |
25 |
20 |
3 |
3.5 |
62 |
12.5 |
5 |
0.55 |
3.5 |
55 |
|
IHF65-50-160 |
25 |
32 |
5.5 |
3.5 |
57 |
12.5 |
8 |
1.1 |
3.5 |
51 |
|
IHF65-40-200 |
25 |
50 |
11 |
3.5 |
52 |
12.5 |
12.5 |
1.5 |
3.5 |
46 |
|
IHF65-40-250 |
25 |
80 |
18.5 |
3.5 |
50 |
12.5 |
20 |
3 |
3.5 |
43 |
|
IHF65-40-315 |
30 |
127 |
30 |
3.5 |
52 |
12.5 |
32.3 |
5.5 |
3.5 |
37 |
|
IHF80-65-125 |
50 |
20 |
5.5 |
4.0 |
69 |
25 |
5 |
1.1 |
4.0 |
64 |
|
IHF80-65-160 |
50 |
32 |
11 |
4.0 |
67 |
25 |
8 |
1.5 |
4.0 |
62 |
|
IHF80-50-200 |
50 |
50 |
15 |
4.0 |
63 |
25 |
12.5 |
2.2 |
4.0 |
57 |
|
IHF80-50-250 |
50 |
80 |
30 |
4.0 |
66 |
25 |
20 |
5.5 |
4.0 |
51 |
|
IHF100-80-125 |
100 |
20 |
11 |
4.5 |
77 |
50 |
5 |
1.5 |
4.5 |
74 |
|
IHF100-80-160 |
100 |
32 |
15 |
4.5 |
73 |
50 |
8 |
2.2 |
4.5 |
69 |
|
IHF100-65-200 |
100 |
50 |
30 |
4.5 |
73 |
50 |
12.5 |
5.5 |
4.5 |
68 |
|
IHF100-65-250 |
100 |
80 |
55 |
4.5 |
73 |
50 |
20 |
11 |
4.5 |
68 |
|
IHF125-80-160 |
160 |
32 |
30 |
5.0 |
70 |
80 |
8 |
5.5 |
5.0 |
74 |
|
IHF125-100-200 |
200 |
50 |
55 |
5.0 |
65 |
100 |
12.5 |
11 |
5.0 |
71 |
|
IHF125-100-250 |
|
|
|
|
|
100 |
20 |
15 |
5.0 |
73 |
|
IHF125-100-315 |
|
|
|
|
|
100 |
32 |
18.5 |
5.0 |
73 |
|
IHF150-125-250 |
|
|
|
|
|
200 |
20 |
22 |
5.0 |
73 |
|
IHF150-125-315 |
|
|
|
|
|
200 |
32 |
45 |
5.0 |
73 |
|
IHF200-150-250 |
|
|
|
|
|
400 |
20 |
55 |
5.5 |
74 |
|
IHF200-150-315 |
|
|
|
|
|
400 |
32 |
75 |
5.5 |
74 |
|
IHF250-200-315 |
|
|
|
|
|
700 |
32.3 |
55 |
7.5 |
75 |
|
IHF300-250-315 |
|
|
|
|
|
900 |
32.3 |
75 |
8.0 |
70 |
|
IHF400-300-315 |
|
|
|
|
|
1000 |
15 |
110 |
6.0 |
80 |
|
Note: If the parameters required by the user are not within the range of this table, they can be adjusted according to the user's requirements. |
||||||||||
| No. | name | Material |
| 1 | Pump body | HT200 |
| 2 | Leather skeleton. | 45 # steel |
| 3 | impeller | Polyperfluoroethylene |
| 4 | Pumping liner. | Polyperfluoroethylene |
| 5 | Pump cover liner. | Polyperfluoroethylene |
| 6 | pump cover | HT200 |
| 7 | Cover pressure. | 1Cr18Ni9Ti |
| 8 | static ring | 99.9% aluminium oxide ceramics |
| 9 | moving ring | Fill with tetrafluoroethylene |
| 10 | pump shaft | 3Cr13 |
| 11 | Bearing body | HT200 |
| 12 | Coupling | HT200 |
Selection Information Required
Please provide medium, concentration, flow, total head or pressure, temperature, viscosity or solids, voltage, frequency and installation method. DFIN Pump will confirm the suitable model and materials.
