Chemical Pumps

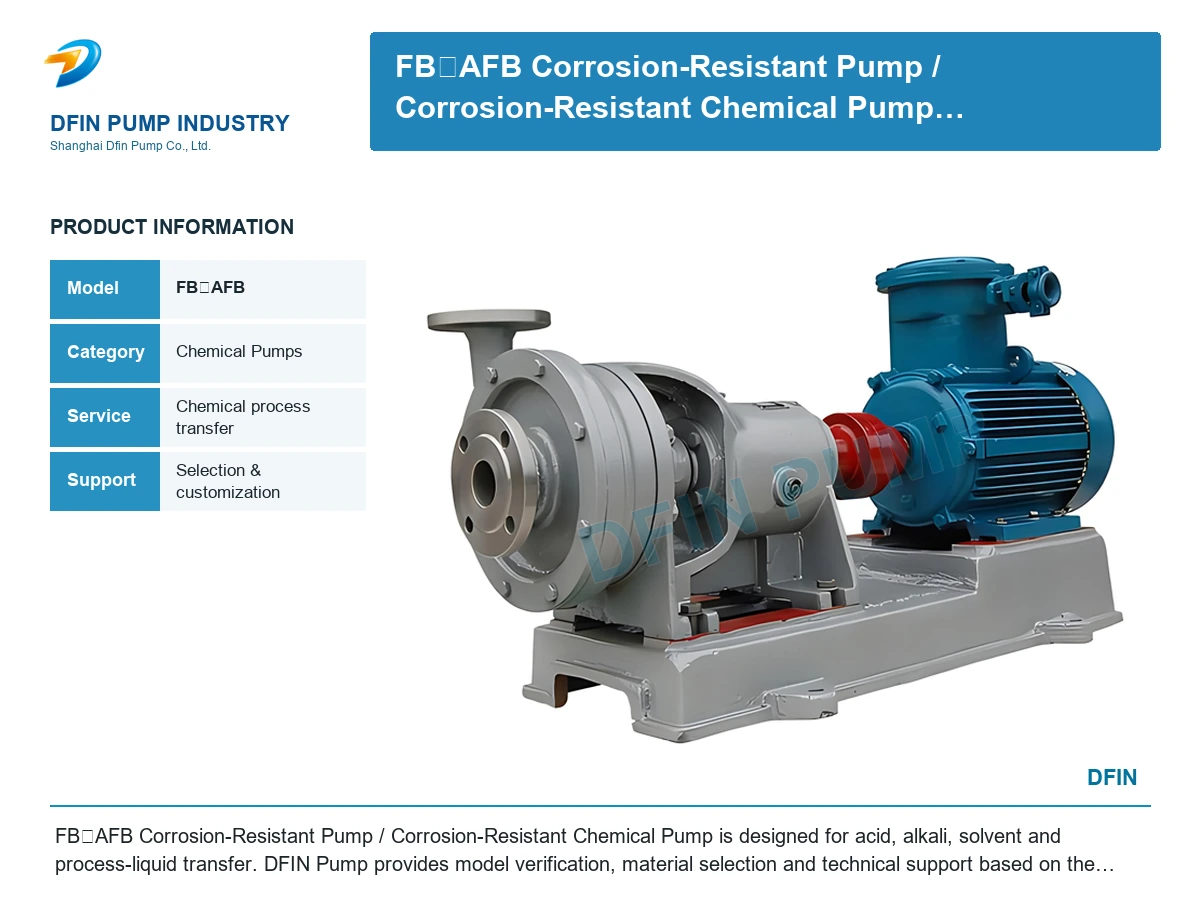

FB、AFB Corrosion-Resistant Pump/ Corrosion-Resistant Chemical Pump
Model: FB、AFB
FB、AFB Corrosion-Resistant Pump/ Corrosion-Resistant Chemical Pump is designed for acid, alkali, solvent and process-liquid transfer. DFIN Pump provides model verification, material selection and technical support based on the actual duty point.
TECHNICAL DATA
Specifications, performance and construction
Confirm the final operating point, materials, motor and connection standard before ordering.
Product Overview
FB、AFB Corrosion-Resistant Pump/ Corrosion-Resistant Chemical Pump is an industrial chemical pump selected for acid, alkali, solvent and process-liquid transfer. The final configuration should be verified against the actual liquid, duty point, temperature, installation and power supply.
Typical Applications
Acid, alkali, solvent and process-liquid transfer.
Design Features
- Corrosion-resistant wetted components
- Seal and material options
- Industrial process compatibility
- Model and material selection supported by DFIN Pump engineers
Extracted Operating Data
- ：2.0Mpa
- ：3.6～200m3/h
- ：0.75～55KW
- ：25～150mm
Values are reference data from the authorized source catalog. Confirm the selected model before ordering.
Technical Performance Data
|
1 |
Pumping shells |
|
|
2 |
Seal Ring |
|
|
3 |
Leaf wheel |
|
|
4 |
Leather nut. |
|
|
5 |
Pump cover. |
|
|
6 |
Seal |
|
|
7 |
Machine seal. |
|
|
8 |
Axis cover |
|
|
9 |
Axis |
|
|
10 |
Pumping axis |
|
|
11 |
Axis |
|
|
12 |
Axis |
|
Model |
Flow |
Head |
Speed |
Efficiency |
NPSHr |
Equipped with Power |
|
|
m3/h |
L/S |
||||||
|
25FB-16 |
3.6 |
1 |
16 |
2900 |
35 |
4 |
0.75 |
|
25FB-25 |
3.6 |
1 |
25 |
2900 |
30 |
4 |
1.5 |
|
25FB-40 |
3.6 |
1 |
40 |
2900 |
25 |
4 |
2.2 |
|
40FB-16 |
7.2 |
2 |
16 |
2900 |
50 |
4 |
2.2 |
|
40FB-20 |
7.2 |
2 |
20 |
2900 |
45 |
4 |
2.2 |
|
40FB-25 |
7.2 |
2 |
25 |
2900 |
40 |
4 |
3 |
|
40FB-40 |
7.2 |
2 |
40 |
2900 |
35 |
4 |
3 |
|
50FB-16 |
14.4 |
4 |
16 |
2900 |
62 |
3.5 |
3 |
|
50FB-25 |
14.4 |
4 |
25 |
2900 |
54 |
3.5 |
4 |
|
50FB-40 |
14.4 |
4 |
40 |
2900 |
40 |
3.5 |
5.5 |
|
65FB-25 |
28.8 |
8 |
25 |
2900 |
63 |
3.5 |
5.5 |
|
65FB-30 |
28.8 |
8 |
30 |
2900 |
60 |
3.5 |
7.5 |
|
65FB-40 |
28.8 |
8 |
40 |
2900 |
58 |
3.5 |
7.5 |
|
80FB-25 |
54.4 |
15 |
16 |
2900 |
70 |
3 |
5.5 |
|
80FB-30 |
54.4 |
15 |
25 |
2900 |
68 |
3 |
7.5 |
|
80FB-40 |
54.4 |
15 |
40 |
2900 |
66 |
3 |
15 |
|
100FB-25 |
100.8 |
28 |
25 |
2900 |
75 |
3 |
15 |
|
100FB-40 |
100.8 |
28 |
40 |
2900 |
70 |
3 |
22 |
|
100FB-65 |
100.8 |
28 |
64 |
2900 |
65 |
3 |
40 |
|
150FB-25 |
190 |
53 |
25 |
2900 |
80 |
2.35 |
22 |
|
150FB-40 |
190 |
53 |
40 |
2900 |
75 |
2.35 |
40 |
Selection Information Required
Please provide medium, concentration, flow, total head or pressure, temperature, viscosity or solids, voltage, frequency and installation method. DFIN Pump will confirm the suitable model and materials.
Catalog reference: authorized YZJ product data · Model FB、AFB
