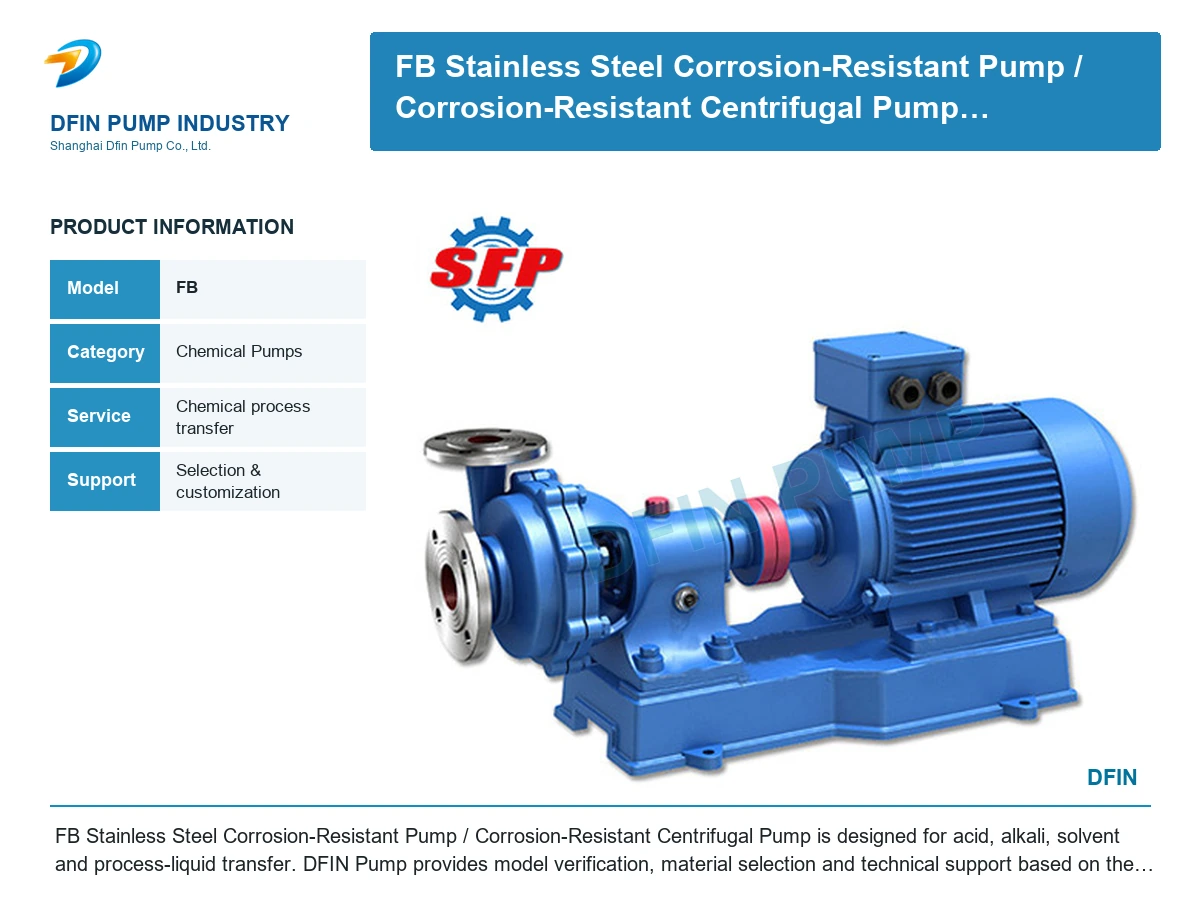

Reference image. Final construction follows the confirmed model and quotation.
Chemical Pumps
FB Stainless Steel Corrosion-Resistant Pump/ Corrosion-Resistant Centrifugal Pump
Model: FB
FB Stainless Steel Corrosion-Resistant Pump/ Corrosion-Resistant Centrifugal Pump is designed for acid, alkali, solvent and process-liquid transfer. DFIN Pump provides model verification, material selection and technical support based on the actual duty point.
TECHNICAL DATA
Specifications, performance and construction
Confirm the final operating point, materials, motor and connection standard before ordering.
Product Overview
FB Stainless Steel Corrosion-Resistant Pump/ Corrosion-Resistant Centrifugal Pump is an industrial chemical pump selected for acid, alkali, solvent and process-liquid transfer. The final configuration should be verified against the actual liquid, duty point, temperature, installation and power supply.
Typical Applications
Acid, alkali, solvent and process-liquid transfer.
Design Features
- Corrosion-resistant wetted components
- Seal and material options
- Industrial process compatibility
- Model and material selection supported by DFIN Pump engineers
Extracted Operating Data
- ：2.0Mpa
- ：3.6～200m3/h
- ：0.75～55KW
- ：25～1500mm
Values are reference data from the authorized source catalog. Confirm the selected model before ordering.
Technical Performance Data
| model | FlowQ |
HeadH (m) |
Speedn (r/min) |
Efficiency(%) | ShaftPower (Kw) |
Append Power (Kw) |
NPSHr (m) |
|
| (m 3 /h) | (L/s) | |||||||
| 25FB-16 | 3.6 | 1 | 16 | 2900 | 33 | 0.48 | 1.1 | 4.0 |
| 25FB-16A | 3.27 | 0.91 | 12.5 | 2900 | 34 | 0.34 | 0.75 | 4.0 |
| 25FB-25 | 3.6 | 1 | 25 | 2900 | 30 | 0.82 | 1.5 | 4.0 |
| 25FB-25A | 3.27 | 0.91 | 40 | 2900 | 31 | 0.57 | 1.1 | 4.0 |
| 25FB-40 | 3.6 | 1 | 40 | 2900 | 23 | 1.71 | 3 | 4.0 |
| 25FB-40 | 3.27 | 0.91 | 33.5 | 2900 | 24 | 1.21 | 2.2 | 4.0 |
| 40FB-16 | 7.2 | 2 | 16 | 2900 | 44 | 0.71 | 1.5 | 4.0 |
| 40FB-16A | 6.55 | 1.82 | 12 | 2900 | 46.7 | 0.5 | 1.1 | 4.0 |
| 40FB-20 | 7.2 | 2 | 20 | 2900 | 42 | 0.93 | 1.5 | 4.0 |
| 40FB-25 | 7.2 | 2 | 25 | 2900 | 39 | 1.26 | 2.2 | 4.0 |
| 40FB-25A | 6.55 | 1.82 | 20.5 | 2900 | 40 | 0.94 | 1.5 | 4.0 |
| 40FB-40 | 7.2 | 2 | 40 | 2900 | 32 | 2.45 | 3 | 4.0 |
| 40FB-40A | 6.55 | 1.82 | 32 | 2900 | 33.5 | 1.73 | 2.2 | 4.0 |
| 40FB-63 | 7.2 | 2 | 63 | 2900 | 27 | 5.42 | 7.5 | 4.0 |
| 40FB-63A | 6.72 | 1.87 | 56 | 2900 | 29 | 3.75 | 5.5 | 4.0 |
| 50FB-16 | 14.4 | 4 | 16 | 2900 | 56 | 1.09 | 2.2 | 3.5 |
| 50FB-16A | 13.1 | 3.64 | 12 | 2900 | 57 | 0.81 | 1.5 | 3.5 |
| 50FB-25 | 14.4 | 4 | 25 | 2900 | 52 | 1.83 | 4 | 3.5 |
| 50FB-25A | 13.1 | 3.64 | 20 | 2900 | 51.5 | 1.42 | 3 | 3.5 |
| 50FB-40 | 14.4 | 4 | 40 | 2900 | 46 | 3.32 | 5.5 | 3.5 |
| 50FB-40A | 13.1 | 3.64 | 32.5 | 2900 | 45 | 2.62 | 5.5 | 3.5 |
| 50FB-63 | 14.4 | 4 | 63 | 2900 | 39 | 6.16 | 11 | 3.5 |
| 50FB-63A | 13.1 | 3.64 | 54.5 | 2900 | 38 | 5.24 | 7.5 | 3.5 |
| 65FB-25 | 28.8 | 8 | 25 | 2900 | 62 | 3.16 | 5.5 | 3.5 |
| 65FB-25A | 26.2 | 7.28 | 20 | 2900 | 62 | 2.36 | 4 | 3.5 |
| 65FB-30 | 28.8 | 8 | 30 | 2900 | 60.5 | 3.89 | 7.5 | 3.5 |
| 65FB-30A | 26.2 | 7.28 | 25 | 2900 | 61 | 2.79 | 5.5 | 3.5 |
| 65FB-40 | 28.8 | 8 | 40 | 2900 | 57.5 | 5.46 | 11.5 | 3.5 |
| 65FB-40A | 26.2 | 7.28 | 32 | 2900 | 58 | 4 | 7.5 | 3.5 |
| 65FB-64 | 28.8 | 8 | 64 | 2900 | 52.5 | 9.57 | 15 | 3.5 |
| 65FB-64A | 26.2 | 7.28 | 55 | 2900 | 51.5 | 7.82 | 7.5 | 3.5 |
| 80FB-15 | 54.4 | 15 | 15 | 2900 | 69 | 3.2 | 5.5 | 3.0 |
| 80FB-15A | 49.1 | 13.65 | 11.5 | 2900 | 69 | 2.62 | 4 | 3.0 |
| 80FB-24 | 54.4 | 15 | 24 | 2900 | 68 | 5.19 | 7.5 | 3.0 |
| 80FB-24A | 49.1 | 13.65 | 19 | 2900 | 68 | 3.94 | 7.5 | 3.0 |
| 80FB-38 | 54.4 | 15 | 38 | 2900 | 66.5 | 8.41 | 15 | 3.0 |
| 80FB-38A | 49.1 | 13.65 | 30.5 | 2900 | 66.5 | 6.34 | 11 | 3.0 |
| 80FB-60 | 54.4 | 15 | 60 | 2900 | 62.8 | 14.06 | 22 | 3.0 |
| 80FB-60A | 49.1 | 13.65 | 52 | 2900 | 62.5 | 11.56 | 18.5 | 3.0 |
| 100FB-23 | 100.8 | 28 | 23 | 2900 | 73 | 8.65 | 15 | 3.0 |
| 100FB-23A | 91.8 | 25.5 | 17.5 | 2900 | 73 | 6.51 | 11 | 3.0 |
| 100FB-37 | 100.8 | 28 | 37 | 2900 | 73 | 13.9 | 22 | 3.0 |
| 100FB-37A | 91.8 | 25.5 | 29 | 2900 | 70.5 | 11 | 18.5 | 3.0 |
| 100FB-57 | 100.8 | 28 | 57 | 2900 | 70.5 | 22.2 | 37 | 3.0 |
| 100FB-57A | 91.8 | 25.5 | 52 | 2900 | 70.5 | 18.77 | 37 | 3.0 |
| 150FB-22 | 190.8 | 53 | 22 | 2900 | 77 | 14.86 | 22 | 2.5 |
| 150FB-22A | 173.5 | 48.2 | 17.5 | 2900 | 78 | 10.6 | 18.5 | 2.5 |
| 150FB-35 | 190.8 | 53 | 35 | 2900 | 76 | 13.94 | 37 | 2.5 |
| 150FB-35A | 173.5 | 48.2 | 28 | 2900 | 76 | 17.42 | 30 | 2.5 |
| 150FB-56 | 190.8 | 53 | 56 | 2900 | 76 | 38.3 | 55 | 2.5 |
| 150FB-56A | 173.5 | 48.2 | 50 | 2900 | 76 | 32.1 | 37 | 2.5 |
Selection Information Required
Please provide medium, concentration, flow, total head or pressure, temperature, viscosity or solids, voltage, frequency and installation method. DFIN Pump will confirm the suitable model and materials.
Catalog reference: authorized YZJ product data · Model FB
