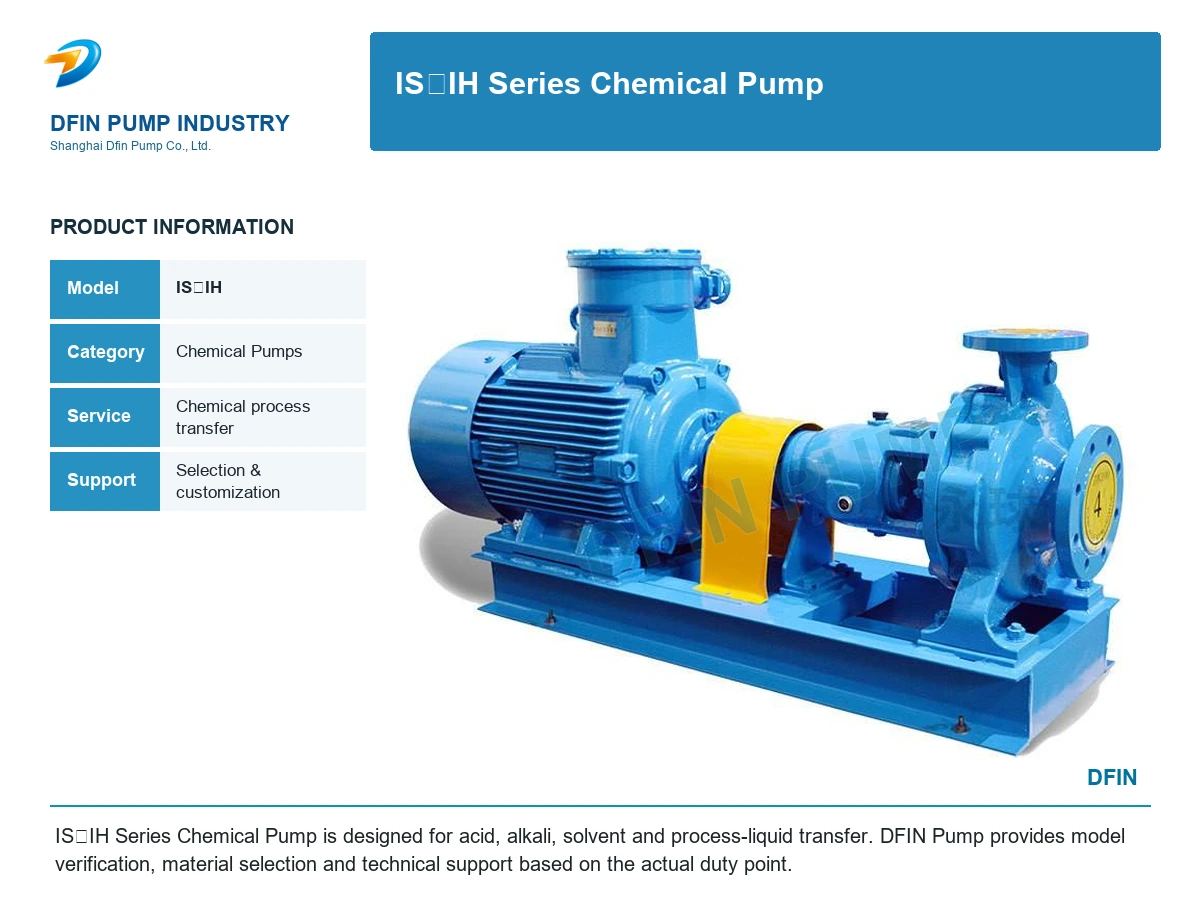

IS、IH Series Chemical Pump

Name: IS、IH Series Chemical Pump
Brand: DFIN PUMP
SKU: IS、IH

Model: IS、IH

IS、IH Series Chemical Pump is designed for acid, alkali, solvent and process-liquid transfer. DFIN Pump provides model verification, material selection and technical support based on the actual duty point.

TECHNICAL DATA

Specifications, performance and construction

Confirm the final operating point, materials, motor and connection standard before ordering.

Product Overview

IS、IH Series Chemical Pump is an industrial chemical pump selected for acid, alkali, solvent and process-liquid transfer. The final configuration should be verified against the actual liquid, duty point, temperature, installation and power supply.

Typical Applications

Acid, alkali, solvent and process-liquid transfer.

Design Features

Corrosion-resistant wetted components
Seal and material options
Industrial process compatibility
Model and material selection supported by DFIN Pump engineers

Extracted Operating Data

：2800r/min 1450r/min ：50～200mm ：6.3～400m3/h ：5～125m

Values are reference data from the authorized source catalog. Confirm the selected model before ordering.

Technical Performance Data

model	Flow (m3/h)	Head (m)	Speed (r/min)	Motor Power (kw)	Port Size(mm)
model	Flow (m3/h)	Head (m)	Speed (r/min)	Motor Power (kw)	Inhalation	Out
IHIS50-32-125	12.5	20	2900	2.2	50	32
IHIS50-32-125	6.3	5	1450	0.55	50	32
IHIS50-32-160	12.5	32	2900	3	50	32
IHIS50-32-160	6.3	8	1450	0.55	50	32
IHIS50-32-200	12.5	50	2900	5.5	50	32
IHIS50-32-200	6.3	12.5	1450	0.75	50	32
IHIS50-32-250	12.5	80	2900	11	50	32
IHIS50-32-250	6.3	20	1450	1.5	50	32
IHIS65-50-125	25	20	2900	3	65	50
IHIS65-50-125	12.5	5	1450	0.55	65	50
IHIS65-50-160	25	32	2900	5.5	65	50
IHIS65-50-160	12.5	8	1450	0.75	65	50
IHIS65-40-200	25	50	2900	7.5	65	40
IHIS65-40-200	12.5	12.5	1450	1.1	65	40
IHIS65-40-250	25	80	2900	15	65	40
IHIS65-40-250	12.5	20	1450	2.2	65	40
IHIS65-40-315	25	125	2900	30	65	40
IHIS65-40-315	12.5	32	1450	4	65	40
IHIS80-65-125	50	20	2900	5.5	80	65
IHIS80-65-125	25	5	1450	0.75	80	65
IHIS80-65-160	50	32	2900	7.5	80	65
IHIS80-65-160	25	8	1450	1.5	80	65
IHIS80-50-200	50	50	2900	15	80	50
IHIS80-50-200	25	12.5	1450	2.2	80	50
IHIS80-50-250	50	80	2900	22	80	50
IHIS80-50-250	25	20	1450	3	80	50
IHIS80-50-315	50	125	2900	37	80	50
IHIS80-50-315	25	32	1450	5.5	80	50
IHIS100-80-125	100	20	2900	11	100	80
IHIS100-80-125	50	5	1450	1.5	100	80
IHIS100-80-160	100	32	2900	15	100	80
IHIS100-80-160	50	8	1450	2.2	100	80
IHIS100-65-200	100	50	2900	22	100	65
IHIS100-65-200	50	12.5	1450	4	100	65
IHIS100-65-250	100	80	2900	37	100	65
IHIS100-65-250	50	20	1450	5.5	100	65
IHIS100-65-315	100	125	2900	75	100	65
IHIS100-65-315	50	32	1450	11	125	100
IHIS125-100-200	200	50	2900	45	125	100
IHIS125-100-200	100	12.5	1450	7.5	125	100
IHIS125-100-250	200	80	2900	75	125	100
IHIS125-100-250	100	20	1450	11	125	100
IHIS125-100-315	200	125	2900	110	125	100
IHIS125-100-315	100	32	1450	15	125	100
IHIS125-100-400	100	50	1450	30	125	100
IHIS150-125-250	200	20	1450	18.5	150	125
IHIS150-125-315	200	32	1450	30	150	125
IHIS150-125-400	200	50	1450	45	150	125
IHIS200-150-250	400	20	1450	37	200	150
IHIS200-150-315	400	32	1450	55	200	150
IHIS200-150-400	400	50	1450	90	200	150

Selection Information Required

Please provide medium, concentration, flow, total head or pressure, temperature, viscosity or solids, voltage, frequency and installation method. DFIN Pump will confirm the suitable model and materials.

Catalog reference: authorized YZJ product data · Model IS、IH

SELECTION SUPPORT

Application-based pump selection

Send the liquid, flow, head or pressure, temperature, solids, installation, power supply and destination for a verified recommendation.
