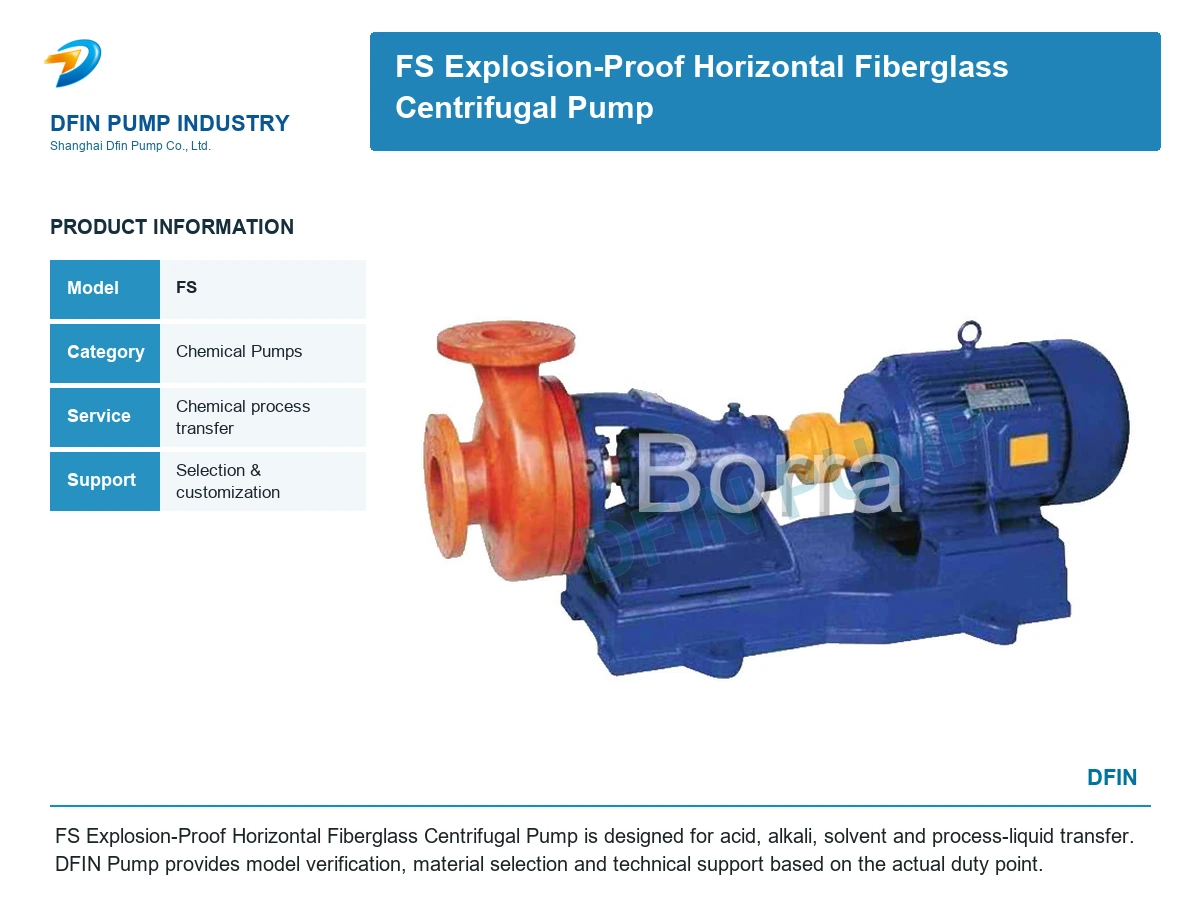

FS Explosion-Proof Horizontal Fiberglass Centrifugal Pump
Model: FS
FS Explosion-Proof Horizontal Fiberglass Centrifugal Pump is designed for acid, alkali, solvent and process-liquid transfer. DFIN Pump provides model verification, material selection and technical support based on the actual duty point.
TECHNICAL DATA
Specifications, performance and construction
Confirm the final operating point, materials, motor and connection standard before ordering.
Product Overview
FS Explosion-Proof Horizontal Fiberglass Centrifugal Pump is an industrial chemical pump selected for acid, alkali, solvent and process-liquid transfer. The final configuration should be verified against the actual liquid, duty point, temperature, installation and power supply.
Typical Applications
Acid, alkali, solvent and process-liquid transfer.
Design Features
- Corrosion-resistant wetted components
- Seal and material options
- Industrial process compatibility
- Model and material selection supported by DFIN Pump engineers
Extracted Operating Data
- 、 、 、 、 、 、 、 , , , 100℃ ( 、 、 、 、 )
Values are reference data from the authorized source catalog. Confirm the selected model before ordering.
Technical Performance Data
| model | Flow Q | Yang Cheng m |
Speed r/min |
Motor Power KW |
|
| m3/h | L/s | ||||
| FS25×25-15 |
2.8 4 5.2 |
0.78 1.11 1.44 |
16 15 13.5 |
2900 | 0.75 |
| FS40×32-20 |
4.4 6.3 8.3 |
1.22 1.75 2.31 |
21 20 18 |
2900 | 2.2 |
| FS40×32-32 |
4.4 6.3 8.3 |
1.22 1.75 2.31 |
33 32 30 |
2900 | 3 |
| FS50×40-16 |
4.36 7.2 9.72 |
1.20 2.00 2.50 |
16 13 10 |
2900 | 2.2 |
| FS50×40-20 |
8.8 12.5 16.3 |
2.44 3.47 4.53 |
21.5 20 17.8 |
2900 | 3 |
| FS50×32-35 |
8.8 12.5 16.3 |
2.44 3.47 4.53 |
35 32 30 |
2900 | 4/5.5 |
| FS65×50-20 |
17.5 25 32.5 |
4.86 6.94 9.03 |
21.5 20 18 |
2900 | 3/4 |
| FS65×50-25 |
25 35 45 |
7 9.7 12.5 |
26 25 22 |
2900 | 4/5.5 |
| FS65×50-32 |
17.5 25 32.5 |
4.86 6.94 9.03 |
34.4 32 27.5 |
2900 | 5.5/7.5 |
| FS80×65-35 |
30 45 55 |
8.3 12.5 15.1 |
35 32 28 |
2900 | 7.5/11 |
| FS80×65-35A |
25 35 45 |
7 9.7 12.5 |
26 25 22 |
2900 | 5.5/7.5 |
| FS80×65-30 |
30 49 60 |
8.3 13.6 16.7 |
30 24 22 |
2900 | 7.5 |
| FS100×80-35 |
56 92.8 110 |
15.5 25.5 30.5 |
35 29 25 |
2900 | 15/22 |
| FS100×80-50 |
70 100 130 |
19.4 27.8 36.1 |
54 50 42 |
2900 | 22/30 |
| No. | name | quantity | Material | No. | name | quantity | Material | No. | name | quantity | Material |
| 1 | Pump shell cover | 1 | Fiberglass | 14 | B-25 cups | 1 | Group | 27 | Pump gaskets. | 1 | Fluorine rubber |
| 2 | A hat with a wheel. | 1 | Fiberlass | 15 | Airframe | 1 | HT20-40 | 28 | Hexagon nut. | 4 | A3 |
| 3 | Preservative gaskets | 1 | Polytetrafluoride | 16 | Pump axle presses | 1 | Steel 20. | 29 | The gasket. | 4 | A3 |
| 4 | impeller | 1 | Fiberglass | 17 | Back scroll bearing | 1 | Group | 30 | Hexagon nut. | 1 | A3 |
| 5 | Pump body | 1 | Fiberglass | 18 | Axes' circle. | 1 | HT20-40 | 31 | Tank | 1 | Organic glass |
| 6 | Tighten the screws. | 1 | Fiberglass | 19 | Pumping axis | 1 | Fiberglass | 32 | Six bolts. | 4 | A3 |
| 7 | WB2 mechanical seal | 1 | Group | 20 | elastic block | 1 | Rubber | 33 | The gasket. | 4 | A3 |
| 8 | Bushing | 1 | Fiberglass | 21 | round nut | 1 | Steel 45. | 34 | Back-axis cover | 1 | HT20-40 |
| 9 | Preservative gaskets | 3 | Polytetrafluoride | 22 | Moto Axis | 2 | Fiberglass | 35 | Six bolts. | 8 | Steel 35 |
| 10 | pump shaft | 1 | Steel 45. | 23 | electric motor | 1 | Union Department | 36 | The gasket. | 8 | A3 |
| 11 | Front axle cover | 1 | HT20-40 | 24 | Preservative nut. | 16 | Fiberlass | 37 | Base | 1 | HT20-40 |
| 12 | SG oil cap | 2 | Oil-resistant rubber | 25 | Preservative gaskets | 16 | Polytetrafluoride | 38 | Six bolts. | 4 | A3 |
| 13 | Front scroll bearings | 1 | Group | 26 | Two-headed screws. | 8 | A3 | 39 | The gasket. | 4 | A3 |
|
No. |
Model |
L |
L1 |
L2 |
L3 |
L4 |
La |
Lb |
H |
H1 |
Inhale Frank. |
Get out of Frank. |
||||
|
Dg |
D1 |
n-d |
Dg1 |
D2 |
n-d1 |
|||||||||||
|
1 |
FS50×25-18 |
632 |
492 |
70 |
45 |
180 |
242 |
242 |
175 |
188 |
50 |
125 |
4-φ14 |
25 |
85 |
4-φ12 |
|
2 |
FS50×32-16 |
32 |
100 |
4-φ14 |
||||||||||||
|
3 |
FS50×40-20 |
675 |
535 |
248 |
248 |
40 |
110 |
4-φ14 |
||||||||
|
4 |
FS65×40-30 |
719 |
579 |
70 |
51 |
191 |
328 |
248 |
210 |
224 |
65 |
145 |
4-φ14 |
40 |
110 |
4-φ14 |
|
5 |
FS65×50-25 |
50 |
125 |
4-φ14 |
||||||||||||
|
6 |
FS80×50-35 |
719 |
579 |
70 |
51 |
191 |
328 |
248 |
210 |
224 |
80 |
160 |
4-φ18 |
50 |
125 |
4-φ14 |
|
7 |
FS80×65-30 |
235 |
65 |
145 |
4-φ14 |
|||||||||||
|
8 |
FS100×65-35 |
918 |
768 |
75 |
62 |
233 |
380 |
300 |
245 |
262 |
100 |
180 |
8-φ18 |
65 |
145 |
4-φ14 |
|
9 |
FS100×80-35 |
80 |
160 |
4-φ18 |
||||||||||||
Selection Information Required
Please provide medium, concentration, flow, total head or pressure, temperature, viscosity or solids, voltage, frequency and installation method. DFIN Pump will confirm the suitable model and materials.
