Chemical Pumps

FSB Explosion-Proof Plastic Pump

Name: FSB Explosion-Proof Plastic Pump
Brand: DFIN PUMP
SKU: FSB

Model: FSB

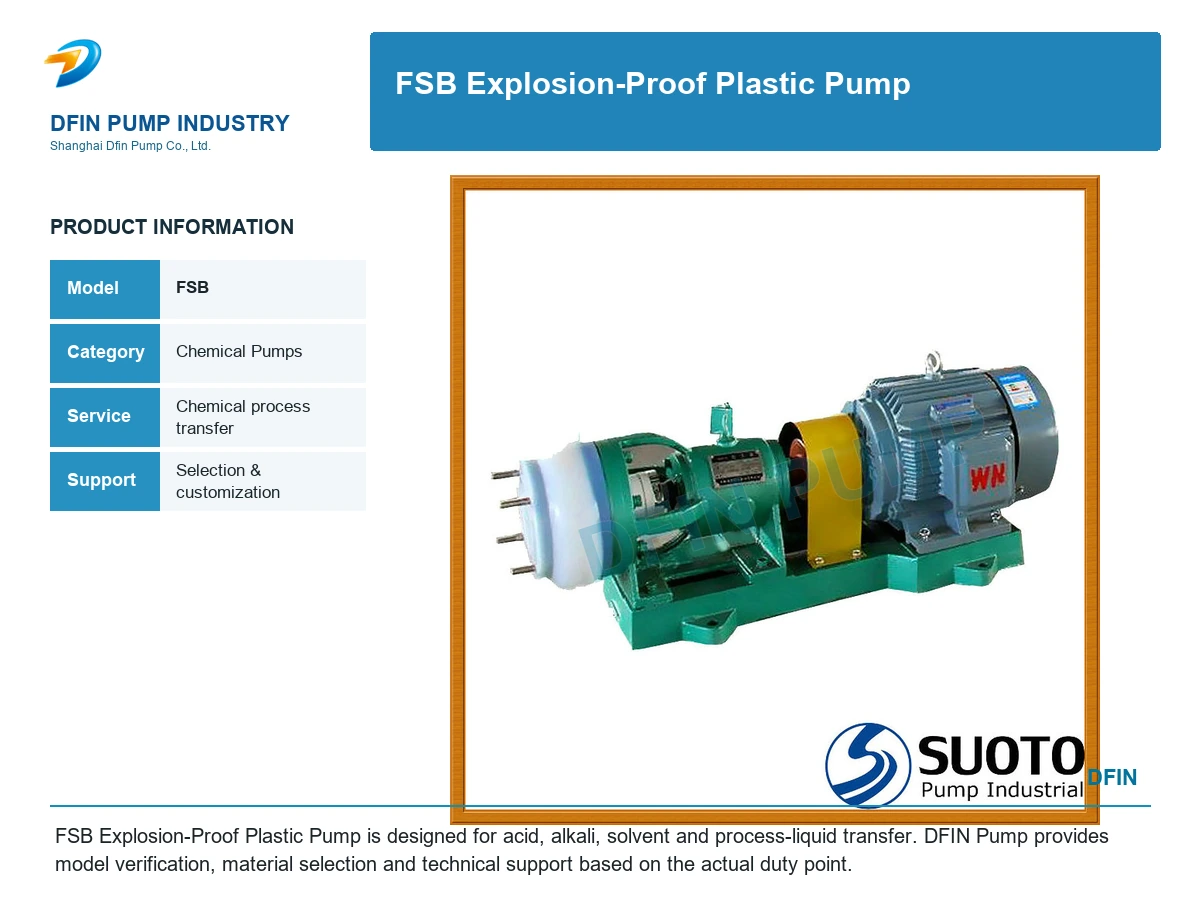

FSB Explosion-Proof Plastic Pump is designed for acid, alkali, solvent and process-liquid transfer. DFIN Pump provides model verification, material selection and technical support based on the actual duty point.

TECHNICAL DATA

Specifications, performance and construction

Confirm the final operating point, materials, motor and connection standard before ordering.

Product Overview

FSB Explosion-Proof Plastic Pump is an industrial chemical pump selected for acid, alkali, solvent and process-liquid transfer. The final configuration should be verified against the actual liquid, duty point, temperature, installation and power supply.

Typical Applications

Acid, alkali, solvent and process-liquid transfer.

Design Features

Corrosion-resistant wetted components
Seal and material options
Industrial process compatibility
Model and material selection supported by DFIN Pump engineers

Extracted Operating Data

：-20℃～120℃
：3.6～100m3/h
：1.5～18.5KW
：25～100mm

Values are reference data from the authorized source catalog. Confirm the selected model before ordering.

Technical Performance Data

Model	Flow	Jan (m)	mouth		Power & nbsp; Rate (Kw)		Speed (r/min)	NPSHr (m)	efficiency (%)
Model	Flow	Jan (m)	Inlet	Outlet	ShaftPower	Motor Power	Speed (r/min)	NPSHr (m)	efficiency (%)
FSB long rack
25FSB-10	3.6	10	25	25	0.69	1.5	2900	3.0	35
25FSB-20	3.6	20	25	25	0.97	1.5	2900	3.0	35
25FSB-25	3.6	25	25	25	1.25	1.5	2900	3.0	35
40FSB-15	5	15	40	32	0.51	3.0	2900	3.0	40
40FSB-20	10	20	40	32	1.16	3.0	2900	3.0	42
40FSB-30	10	30	40	32	1.18	3.0	2900	3.0	52
40FSB-40	6.3	40	40	25	3.1	4.0	2900	3.0	40
40FSB-50	6.3	50	40	25	3.55	4.0	2900	3.0	52
40FSB-80	6.3	80	40	25	7.11	7.5	2900	3.0	52
50FSB-20	12.5	20	50	32	1.49	3.0	2900	3.5	55
50FSB-25	12.5	25	50	32	1.86	3.0	2900	3.5	55
50FSB-30	15	30	50	32	1.90	3.0	2900	3.5	54
50FSB-40	12.5	40	50	32	4.3	7.5	2900	3.0	39
50FSB-50	12.5	50	50	32	5.8	7.5	2900	3.0	39
65FSB-32	25	32	65	50	4.8	5.5	2900	2.0	45
65FSB-40	25	40	65	40	7.2	11	2900	3.0	52
65FSB-50	25	50	65	40	8.6	11	2900	3.5	52
65FSB-80	25	80	65	40	14.1	18.5	2900	4.5	50
80FSB-20	50	20	80	65	4.7	5.5	2900	3.0	45
80FSB-25	50	25	80	65	5.7	7.5	2900	3.0	50
80FSB-30	50	30	80	65	6.9	7.5	2900	3.5	59
80FSB-40	50	40	80	50	10.2	11.0	2900	3.5	48
80FSB-50	50	50	80	50	11.9	15.0	2900	3.5	57
80FSB-55	50	55	80	50	13.5	18.5	2900	4.0	50
80FSB-80	50	80	80	50	24.6	30	2900	4.0	66
100FSB-20	100	20	100	80	8.6	11.0	2900	3.5	68
100FSB-32	100	32	100	80	11.9	15.0	2900	3.5	68
100FSB-40	100	40	100	65	21.3	30.0	2900	4.5	73
100FSB-50	100	50	100	65	23.9	30.0	2900	4.5	73
125FSB-32	160	32	125	80	24.15	30.0	2900	5.0	70
125FSB-50	200	50	125	100	39.2	55.0	2900	5.0	65
150FSB-32	150	32	200	125	35.3	45.0	1450	5.0	60
FSB (short additions)
40FSB-15(D)	5	15	40	32	0.51	3.0	2900	3.0	40
40FSB-20(D)	10	20	40	32	1.16	3.0	2900	3.0	42
40FSB-30(D)	10	30	40	32	1.18	3.0	2900	3.0	52
50FSB-20(D)	12.5	20	50	32	1.49	3.0	2900	3.5	55
50FSB-25(D)	12.5	25	50	32	1.86	3.0	2900	3.5	55
50FSB-30(D)	15	30	50	32	1.90	3.0	2900	3.5	54
65FSB-32(D)	25	32	65	50	3.61	5.5	2900	3.5	65
80FSB-25(D)	42	25	80	65	3.8	7.5	2900	3.5	67
80FSB-30(D)	50	30	80	65	6.82	7.5	2900	3.5	68
Note: If the required parameters are not included in this table, our plant may adjust them according to user requirements, and some of the large pump casings in this table are fluorinated

No.	name	No.	name
1	Pump body	8	oil cap
2	impeller	9	oil lens
3	back cover	10	Bearing
4	Gland	11	Bearing gland
5	Seals	12	Coupling
6	Bracket	13	Lifting bolts
7	pump shaft

Model	L	L1	L2	L3	L4	D	D1	D2	D3	D4	D5	B	B1	d	h	h1	h2	n-m
25FSB-10	940	730	455	130	380	100	75	25	110	90	20	250	310	65	112	130	78	4-ф18
25FSB-18	940	730	455	130	380	100	75	25	110	90	20	250	310	65	112	130	78	4-ф18
40FSB-15	940	730	455	130	400	130	100	40	130	100	32	250	310	80	112	130	78	4-ф18
40FSB-20	940	730	455	130	400	130	100	40	130	100	32	250	310	80	112	130	78	4-ф18
40FSB-30	940	730	455	130	400	130	100	40	130	100	32	250	310	80	112	130	78	4-ф18
40FSB-40	940	730	455	130	400	130	100	40	130	100	32	250	310	80	112	130	78	4-ф18
50FSB-20	940	730	455	130	400	130	100	50	130	100	32	250	310	80	112	130	78	4-ф18
50FSB-25	940	730	455	130	400	130	100	50	130	100	40	250	310	80	112	130	78	4-ф18
50FSB-30	940	730	455	130	400	130	100	50	130	100	40	250	310	80	112	130	78	4-ф18
50FSB-40	1045	830	560	130	400	130	100	50	130	100	40	250	375	80	112	130	78	4-ф18
50FSB-50	1045	830	560	130	400	130	100	50	130	100	40	250	375	80	112	130	78	4-ф18
65FSB-32	1045	830	560	240	410	185	135	65	160	135	50	250	375	95	132	150	65	4-ф18
65FSB-40	1045	830	560	240	410	185	135	65	160	135	50	250	375	100	132	185	65	4-ф18
65FSB-50	1045	830	560	240	410	185	150	65	160	135	50	250	375	100	132	185	65	4-ф18
80FSB-20	1045	830	560	240	410	185	150	80	160	135	65	250	375	95	132	150	65	4-ф18
80FSB-30	1045	830	560	240	410	185	150	80	160	135	65	250	375	95	132	150	65	4-ф18
80FSB-34	1045	830	560	240	410	185	150	80	160	135	65	250	375	95	132	150	65	4-ф18
80FSB-40	1045	830	560	240	410	185	150	80	160	135	65	250	375	100	132	185	65	4-ф18
80FSB-50	1045	830	560	240	410	185	150	80	160	135	50	250	375	100	132	185	65	4-ф18
80FSB-55	1310	970	610	245	500	185	150	80	160	135	65	330	430	110	160	205	100	4-ф18
80FSB-80	1310	970	640	245	500	185	150	80	160	135	65	330	430	135	160	205	100	4-ф18
100FSB-32	1330	970	640	245	500	185	150	100	160	135	65	330	430	110	160	205	120	4-ф18
100FSB-50	1360	970	640	245	500	185	150	100	160	135	65	300	430	110	160	205	160	4-ф18

Model	L	L1	L2	L3	D	D1	D2	D3	D4	D5	B	B1	d	d1	h	h1	Foot bolt.
25FSB-10D	470	220	185	125	100	75	25	110	90	20	180	140	65	155	210	90	4-ф10
25FSB-18D	470	220	185	125	100	75	25	110	90	20	180	140	65	155	210	90	4-ф10
40FSB-15D	540	245	200	125	130	100	40	130	100	32	205	160	80	180	240	100	4-ф12
40FSB-20D	540	245	200	140	130	100	40	130	100	32	205	160	80	180	240	100	4-ф12
40FSB-30D	540	245	200	140	130	100	40	130	100	32	205	160	80	180	240	100	4-ф12
50FSB-20D	540	245	200	140	130	100	50	130	100	40	205	160	80	180	240	100	4-ф12
50FSB-25D	540	245	200	140	130	100	50	130	100	40	205	160	80	180	240	100	4-ф12
50FSB-30D	540	245	200	140	130	100	50	130	100	40	240	190	80	180	240	100	4-ф12
65FSB-32D	720	345	276	140	185	150	65	185	135	50	280	216	95	210	282	100	4-ф12
80FSB-20D	720	345	276	140	185	150	80	185	135	65	280	216	95	210	282	132	4-ф12
80FSB-30D	720	345	276	140	185	150	80	185	135	65	280	216	95	210	282	132	4-ф12

Fault

reason

Corrective Action

No fluid.

There's air in the inhaler tube.

Two, too high.

3. Require Head to be larger than pump Head

Four, over-barrel. Too much traffic.

5. Reverse

1 , clear of pipes, clear of air

2 , lower height of pump installation

Three, switch to Head's big pump.

4 , for Port Size and pump mouths, etc.

5. Change of direction

Insufficient Flow

1 , leaf wheel damage

2 , Seal damage

3. Undercount

Four, Inlet overload.

Five, the Outlet tube is too bent, too resistance.

1 , change new leaf wheel

2 , change of seal

3. Increased turnover

4 , as required, reload pipes

5 & nbsp;, rationalization of pipelines

Head's not enough.

1. Delivery media containing gases or media pasting

2. Damage to wheels and blades

3. Insufficient turnover

1. Reduce media viscosity or increase pressure for injection

2. Replacement of leaf wheels

3 & nbsp;, increase in transfer

Axis leakage

1. Mechanical sealed card loops

Two, axle-end card loop transition size gap is too big.

One, two internal hexagonal snails.

2. Dismantling the pump, axle, carding the F4s with thin membrane circles.

The seal's leaking.

1. Inadequate selection of sealed component materials

2. Exhaustion for severe wear

Three, the ring kisses.

4 & nbsp;, friction-exhausted fragrance

1. Description of the medium in the pump chain with appropriate motion rings

2. Change wear and tear and adjust spring pressure to reduce wear and tear

3. Repositioning of the hysteria of the seal hysteria.

Pump disassembly. Sealed rings with required vertical error & lt; 0.10

There's a noise or pump vibration inside the pump.

One, the pump axis is different from the Motor axis.

2 , Flow exceeds range of use to generate gas erosion

3. Pumps generate gas erosion

4 , electrical motor and axle wear

1 , correction pump axle centre

2. Select the appropriate pump type.

3. Reduce the temperature or increase the injection pressure of the medium

4. Cleaning or changing bearings

Selection Information Required

Please provide medium, concentration, flow, total head or pressure, temperature, viscosity or solids, voltage, frequency and installation method. DFIN Pump will confirm the suitable model and materials.

Catalog reference: authorized YZJ product data · Model FSB
