Reference image. Final construction follows the confirmed model and quotation.
Sewage Pumps

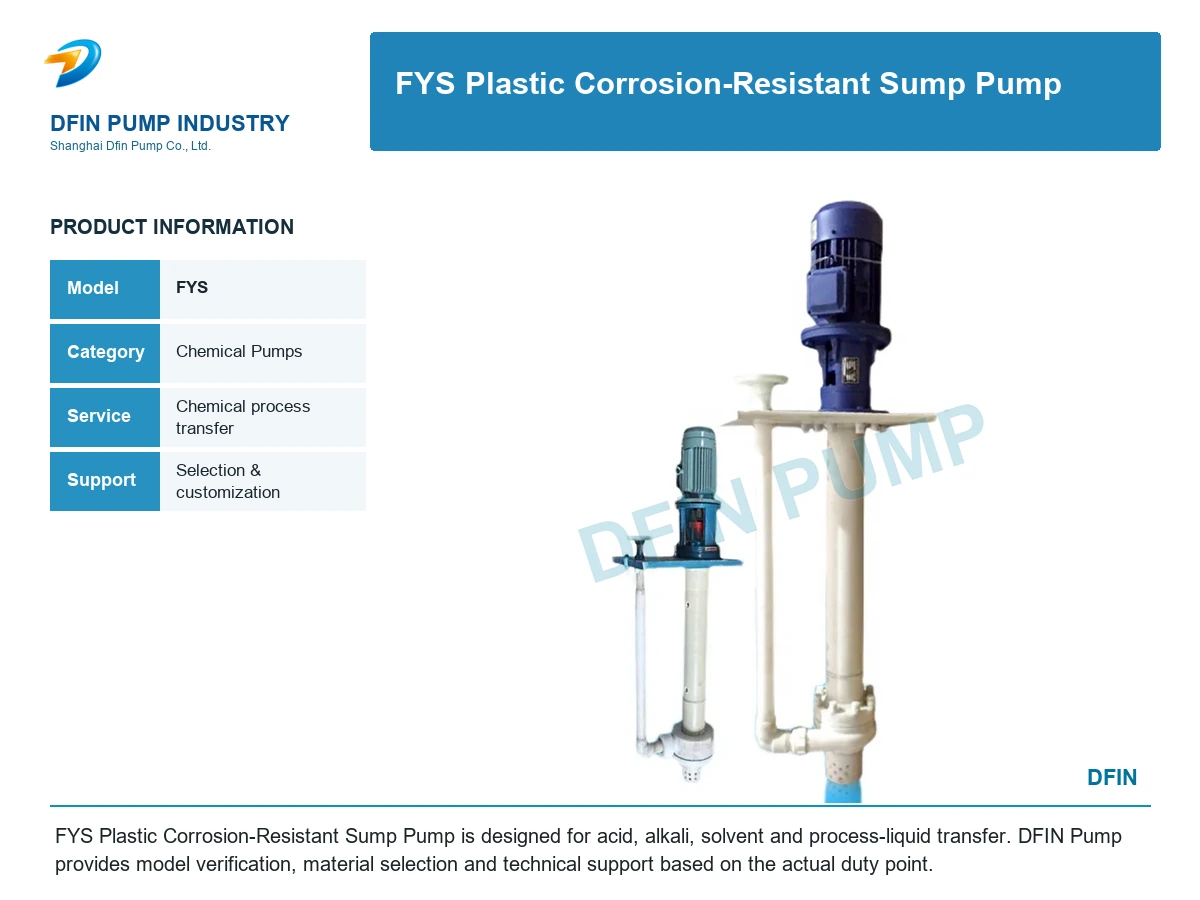

FYS Plastic Corrosion-Resistant Sump Pump
Model: FYS
FYS Plastic Corrosion-Resistant Sump Pump is designed for acid, alkali, solvent and process-liquid transfer. DFIN Pump provides model verification, material selection and technical support based on the actual duty point.
TECHNICAL DATA
Specifications, performance and construction
Confirm the final operating point, materials, motor and connection standard before ordering.
Product Overview
FYS Plastic Corrosion-Resistant Sump Pump is an industrial chemical pump selected for acid, alkali, solvent and process-liquid transfer. The final configuration should be verified against the actual liquid, duty point, temperature, installation and power supply.
Typical Applications
Acid, alkali, solvent and process-liquid transfer.
Design Features
- Corrosion-resistant wetted components
- Seal and material options
- Industrial process compatibility
- Model and material selection supported by DFIN Pump engineers
Extracted Operating Data
- 00M3/H ：Ｈ＝6m－－-50m ：n＝1450r/min－－-2900r/min ：-5℃－－-105℃
- ：Ｌ＝250－－-2500mm ：Ｑ＝1.5M3/H－－-400M3/H ：Ｈ＝6m－－-50m ：n＝1450r/min－
Values are reference data from the authorized source catalog. Confirm the selected model before ordering.
Technical Performance Data
| Model |
Flow m3/h |
Head m |
OutletDiameter mm |
Motor Power KW |
Speed r/min |
Length under fluid mm |
| 25FYS-10 | 1.5 | 10 | 20 | 1.5 | 2900 |
300 to 2500 |
| 25FYS-18 | 3.6 | 18 | 20 | 2.2 | 2900 | |
| 40FYS-15 | 5 | 15 | 32 | 3 | 2900 | |
| 40FYS-20 | 10 | 20 | 32 | 3 | 2900 | |
| 40FYS-30 | 10 | 30 | 32 | 4 | 2900 | |
| 40FYS-40 | 10 | 40 | 32 | 5.5 | 2900 | |
| 50FYS-20 | 15 | 20 | 40 | 3 | 2900 | |
| 50FYS-25 | 15 | 25 | 40 | 4 | 2900 | |
| 50FYS-30 | 15 | 30 | 40 | 5.5 | 2900 | |
| 50FYS-40 | 15 | 40 | 32 | 7.5 | 2900 | |
| 50FYS-50 | 15 | 50 | 32 | 7.5 | 2900 | |
| 65FYS-32 | 29 | 32 | 50 | 11 | 2900 | |
| 65FYS-40 | 29 | 40 | 40 | 11 | 2900 | |
| 80FYS-20 | 50 | 20 | 65 | 11 | 2900 | |
| 80FYS-30 | 50 | 30 | 65 | 15 | 2900 | |
| 80FYS-34 | 50 | 34 | 65 | 15 | 2900 | |
| 80FYS-40 | 50 | 40 | 50 | 18.5 | 2900 | |
| 100FYS-32 | 100 | 32 | 80 | 22 | 2900 | |
| 100FYS-40 | 100 | 40 | 80 | 22 | 2900 | |
| 50FYS-50 | 7.5 | 12.5 | 32 | 2.2 | 1450 | |
| 65FYS-40 | 14.5 | 10 | 40 | 3 | 1450 | |
| 80FYS-40 | 25 | 10 | 50 | 4 | 1450 | |
| 100FYS-40 | 50 | 10 | 80 | 5.5 | 1450 |
| FYS fluorinated Plastic alloy fluid failure | Reasons for potential fluorine Plastic alloy pumping FYS | FYS fluorinated Plastic alloy fluid pump |
| FYS Fluorine Plastic alloy down-pump Flow | 1. Other damage to pump overflow 2. Speed inadequate 3. Inhalation or loss of Outlet partial congestion |
Replacement 2. Check for Voltage, Motor. 3. Removal of silts |
| FYS fluorine Plastic alloy down-pumphead | 1. Wreck damage 2. Speed inadequate 3. Gases in the infusion |
1. Replacement of leaf wheels 2. Check for Voltage, Motor. Reduced liquid temperature excludes gases |
| FYS-fluorinated Plastic alloy fluid pumped under axle heat | 1. The main axis is different from the Motor axis 2. Oil shortage or deterioration in the bearings |
Readjustment of concentricity 2. Refuelling or oil exchange |
| FYS Fluorinated Plastic alloy pump Power overload | 1. Overweight media Flow exceeds usage 3. Generate mechanical friction |
1. Replacement of larger PowerMotor 2. Work by area of use 3. Inspection of wear and tear components |
| FYS fluorinated Plastic alloy fluid pumped down to a small or no liquid | Motor turned wrong. 2. Leaf core endline leachate |
1. Adjusting phase 2. Adjustment to immersion height |
| FYS fluorinated Plastic alloy liquid pump vibration or noise | 1. The main axis is different from the Motor axis 2. Rotation imbalances 3. Leaning of the nuts 4. Operation with gas or dehydration in the infusion 5. Excessive wear of water bearings and axe necks |
Readjustment of concentricity Replacement Tighten all the branches. 4. Reducing liquid temperature excludes gases and leaves are immersed in liquids 5. Replacement of water bearings and restoration of necks |
Selection Information Required
Please provide medium, concentration, flow, total head or pressure, temperature, viscosity or solids, voltage, frequency and installation method. DFIN Pump will confirm the suitable model and materials.
Catalog reference: authorized YZJ product data · Model FYS
