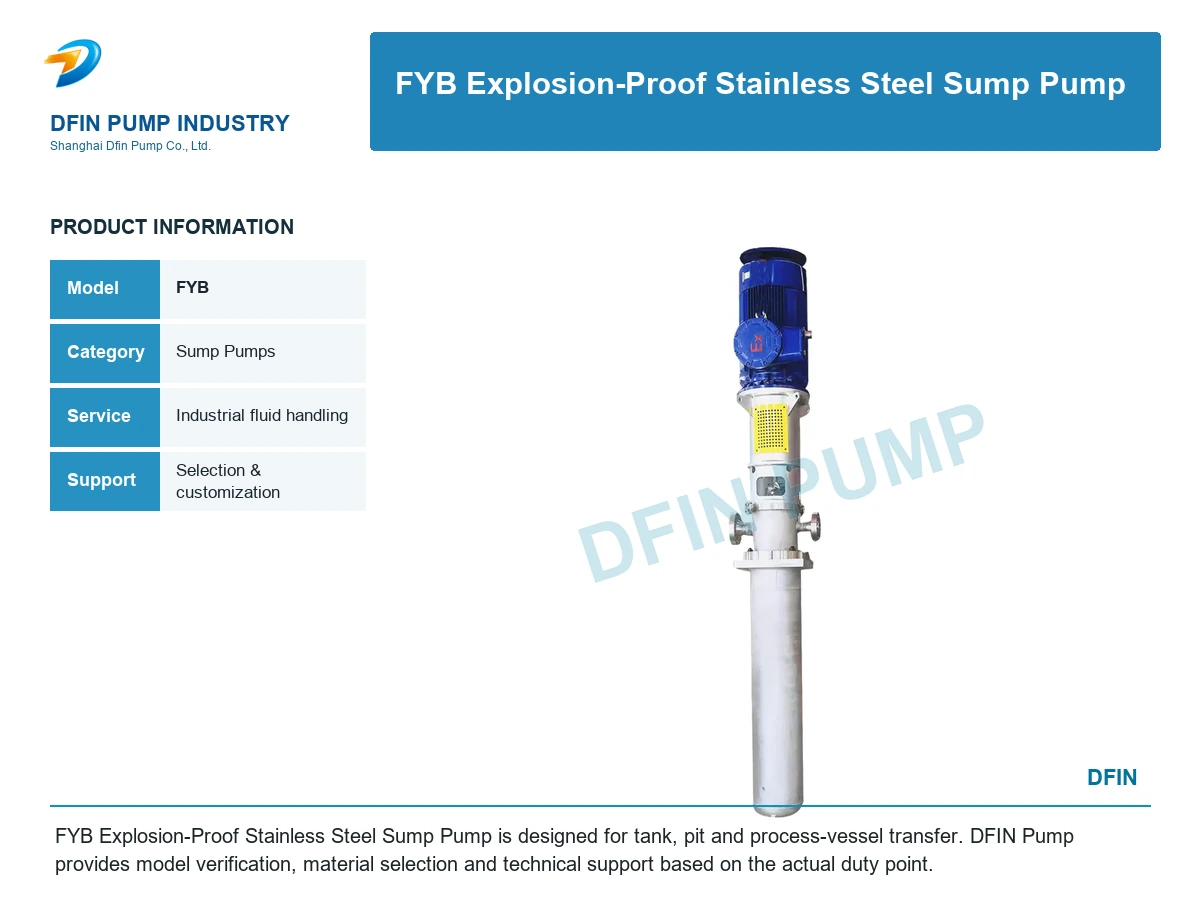

Reference image. Final construction follows the confirmed model and quotation.
Stainless Steel Submersible Pumps
FYB Explosion-Proof Stainless Steel Sump Pump
Model: FYB
FYB Explosion-Proof Stainless Steel Sump Pump is designed for tank, pit and process-vessel transfer. DFIN Pump provides model verification, material selection and technical support based on the actual duty point.
TECHNICAL DATA
Specifications, performance and construction
Confirm the final operating point, materials, motor and connection standard before ordering.
Product Overview
FYB Explosion-Proof Stainless Steel Sump Pump is an industrial sump pump selected for tank, pit and process-vessel transfer. The final configuration should be verified against the actual liquid, duty point, temperature, installation and power supply.
Typical Applications
Tank, pit and process-vessel transfer.
Design Features
- Vertical submerged wet end
- Reduced shaft-seal exposure
- Multiple immersion depths
- Model and material selection supported by DFIN Pump engineers
Extracted Operating Data
- ： ：25FYB-15 25 - 25mm Y - B - 1Cr18Ni9Ti
- F - 15 - 15mm
Values are reference data from the authorized source catalog. Confirm the selected model before ordering.
Technical Performance Data
| Model old and new | With MotorModel | FlowQ | Headm | Efficiency% | Speedrpm | |
| m3/h | L/S | |||||
| 25FYB-41 | Y112M-2B5-4 kw | 3.6 | 1 | 41 | 16 | 2900 |
| 25FYB-25 | Y90L-2B5-2.2kw | 25 | 21 | |||
| 25FYB-10 | Y90L-2B5-1.5kw | 10 | 22 | |||
| 40FYB-40 | Y132S1-2B5-5.5kw | 7.2 | 2 | 40 | 31 | 2900 |
| 40FYB-26 | Y100L-2B5-3 kw | 26 | 35 | |||
| 40FYB-16 | Y90L-2B5-2.2 kw | 16 | 40 | |||
| 50FYB-40 | Y132S2-2B5-7.5 kw | 14.4 | 4 | 40 | 42 | 2900 |
| 50FYB-25 | Y112M-2B5-4 kw | 25 | 50 | |||
| 50FYB-16 | Y100L-2B5-3 kw | 16 | 53 | |||
| 65FYB-40 | Y160M1-2B5-11 kw | 28.8 | 8 | 40 | 52 | 2900 |
| 65FYB-25 | Y132S1-2B5-5.5kw | 25 | 55 | |||
| 65FYB-10 | Y112M-2B5-4 kw | 10 | 58 | |||
| 80FYB-38 | Y160L-2B5-18.5kw | 54 | 15 | 38 | 62 | 2900 |
| 80FYB-24 | Y160L-2B5-11kw | 24 | 66 | |||
| 80FYB-15 | Y132S2-2B5-7.5 kw | 15 | 68 | |||
| 100FYB-57 | Y200L2-2B5-37kw | 108.8 | 28 | 57 | 63 | 2900 |
| 100FYB-37 | Y180M-2B5-22kw | 37 | 69 | |||
| 100FYB-23 | Y160L-2B5-18.5kw | 23 | 70 | |||
| 150FYB-35 | Y225M-4B5-45kw | 190.8 | 53 | 35 | 72 | 1480 |
| 150FYB-22 | Y200L1-4B5-30kw | 22 | 72 | |||
| 200FYB-34 | Y225M-4B5-45kw | 360 | 100 | 34 | 72 | |
| 200FYB-21 | Y200L1-4B5-30kw | 21 | 73 | |||
Selection Information Required
Please provide medium, concentration, flow, total head or pressure, temperature, viscosity or solids, voltage, frequency and installation method. DFIN Pump will confirm the suitable model and materials.
Catalog reference: authorized YZJ product data · Model FYB
