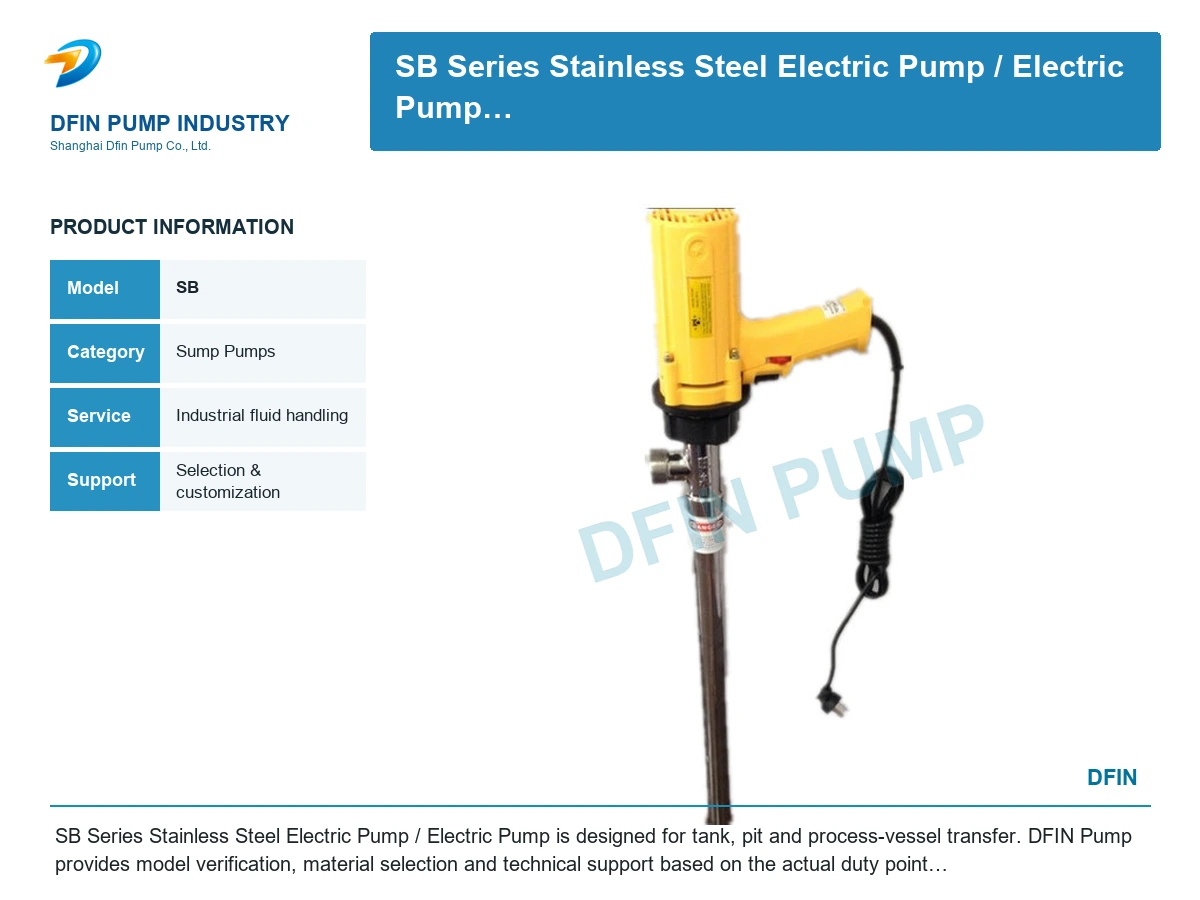

Reference image. Final construction follows the confirmed model and quotation.
Stainless Steel Submersible Pumps
SB Series Stainless Steel Electric Pump/ Electric Pump
Model: SB
SB Series Stainless Steel Electric Pump/ Electric Pump is designed for tank, pit and process-vessel transfer. DFIN Pump provides model verification, material selection and technical support based on the actual duty point.
TECHNICAL DATA
Specifications, performance and construction
Confirm the final operating point, materials, motor and connection standard before ordering.
Product Overview
SB Series Stainless Steel Electric Pump/ Electric Pump is an industrial sump pump selected for tank, pit and process-vessel transfer. The final configuration should be verified against the actual liquid, duty point, temperature, installation and power supply.
Typical Applications
Tank, pit and process-vessel transfer.
Design Features
- Vertical submerged wet end
- Reduced shaft-seal exposure
- Multiple immersion depths
- Model and material selection supported by DFIN Pump engineers
Technical Performance Data
|
Products Model |
Flow |
Flow |
Head |
Speed |
Power |
Inlet |
Outlet |
Material |
Weight |
|
m3/h |
L/min |
m |
r/min |
Kw |
mm |
mm |
Pump tube |
Kg |
|
|
SB-1 |
7.8 |
130 |
7.5 |
10000 |
1.1 |
50 |
25 |
Stainless Steel |
8 |
|
SB-1-1 |
6.6 |
110 |
7 |
10000 |
0.88 |
50 |
25 |
Stainless Steel |
7.5 |
|
SB-1-2 |
7.8 |
130 |
7.5 |
10000 |
1.1 |
50 |
25 |
Stainless Steel |
8 |
|
SB-1-3 |
6.6 |
110 |
7.5 |
10000 |
0.88 |
50 |
25 |
Stainless Steel |
7.8 |
|
SB-2 |
7.8 |
130 |
7.5 |
10000 |
1.1 |
50 |
25 |
Aluminum alloy |
5.5 |
|
SB-2-1 |
6.6 |
110 |
7.5 |
10000 |
0.88 |
50 |
25 |
Aluminum alloy |
5.3 |
|
SB-3 |
9 |
150 |
10 |
12000 |
0.88 |
50 |
25 |
Stainless Steel |
9 |
|
SB-3-1 |
9 |
150 |
10 |
12000 |
0.88 |
50 |
25 |
Stainless Steel |
9.5 |
|
SB-4 |
9 |
150 |
10 |
12000 |
0.88 |
50 |
25 |
Aluminum alloy |
7.5 |
|
SB-6 |
6 |
100 |
7 |
8000 |
0.55 |
41 |
25 |
Stainless Steel |
5.7 |
|
SB-7 |
6 |
100 |
7 |
8000 |
0.55 |
41 |
25 |
Stainless Steel |
5.5 |
|
SB-8 |
6 |
100 |
7 |
8000 |
0.55 |
41 |
25 |
Aluminum alloy |
3.8 |
|
Specification Model |
Outlet （mm） |
Flow （L/min） |
Head （m） |
Power （W） |
Voltage （V） |
Material |
|
JK-3P |
20（3/4〞） |
35-40 |
＜2 |
120 |
220 |
Stainless Steel |
|
JK-3B |
20（3/4〞） |
35-40 |
＜2 |
120 |
220 |
Aluminum alloy |
|
YBYB-40 |
20（3/4〞） |
35-40 |
＜2 |
120 |
220 |
Stainless Steel |
|
YBYB-40P |
20（3/4〞） |
35-40 |
＜2 |
120 |
220 |
Aluminum alloy |
Selection Information Required
Please provide medium, concentration, flow, total head or pressure, temperature, viscosity or solids, voltage, frequency and installation method. DFIN Pump will confirm the suitable model and materials.
Catalog reference: authorized YZJ product data · Model SB
SELECTION SUPPORT
Application-based pump selection
Send the liquid, flow, head or pressure, temperature, solids, installation, power supply and destination for a verified recommendation.
