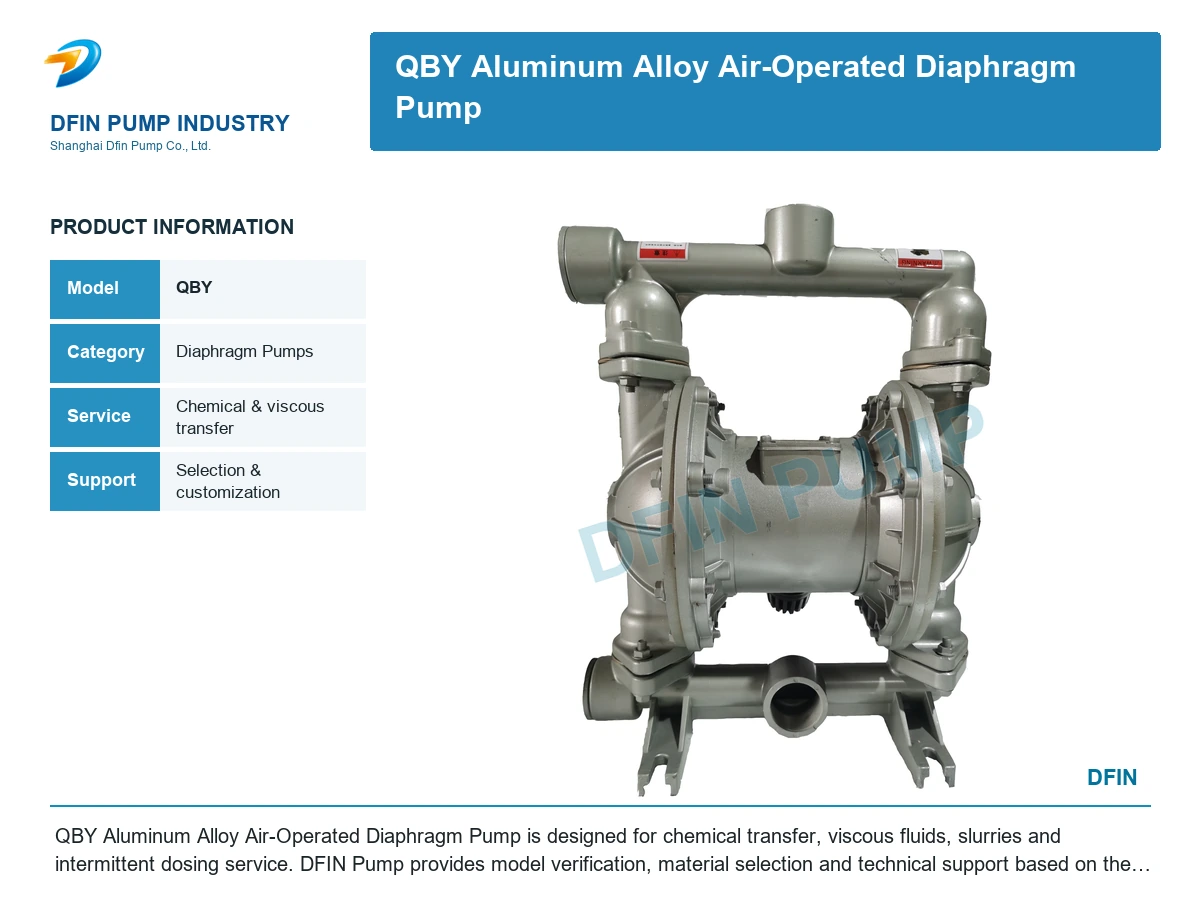

QBY Aluminum Alloy Air-Operated Diaphragm Pump
Model: QBY
QBY Aluminum Alloy Air-Operated Diaphragm Pump is designed for chemical transfer, viscous fluids, slurries and intermittent dosing service. DFIN Pump provides model verification, material selection and technical support based on the actual duty point.
TECHNICAL DATA
Specifications, performance and construction
Confirm the final operating point, materials, motor and connection standard before ordering.
Product Overview
QBY Aluminum Alloy Air-Operated Diaphragm Pump is an industrial diaphragm pump selected for chemical transfer, viscous fluids, slurries and intermittent dosing service. The final configuration should be verified against the actual liquid, duty point, temperature, installation and power supply.
Typical Applications
Chemical transfer, viscous fluids, slurries and intermittent dosing service.
Design Features
- Positive-displacement operation
- Dry-running capability subject to configuration
- Wide range of wetted materials
- Model and material selection supported by DFIN Pump engineers
Extracted Operating Data
- ：0.1-0.7MPa
- ：-15-+120℃
- ：0-30m3/h
- ：10-100mm
Values are reference data from the authorized source catalog. Confirm the selected model before ordering.
Technical Performance Data
|
model |
Port Size |
flow |
Head |
Suction Lift |
Great permission |
Large air supply pressure |
|
QBY-10 |
10 |
0.8 |
50 |
5 |
1 |
2-7 |
|
QBY-15 |
15 |
1 |
50 |
5 |
1 |
2-7 |
|
QBY-25 |
25 |
2.4 |
50 |
7 |
2.5 |
2-7 |
|
QBY-40 |
40 |
8 |
50 |
7 |
4.5 |
2-7 |
|
QBY-50 |
50 |
12 |
50 |
7 |
8 |
2-7 |
|
QBY-65 |
65 |
16 |
50 |
7 |
8 |
2-7 |
|
QBY-80 |
80 |
24 |
50 |
7 |
10 |
2-7 |
|
QBY-100 |
100 |
30 |
50 |
7 |
10 |
2-7 |
Selection Information Required
Please provide medium, concentration, flow, total head or pressure, temperature, viscosity or solids, voltage, frequency and installation method. DFIN Pump will confirm the suitable model and materials.
Catalog reference: authorized YZJ product data · Model QBY
