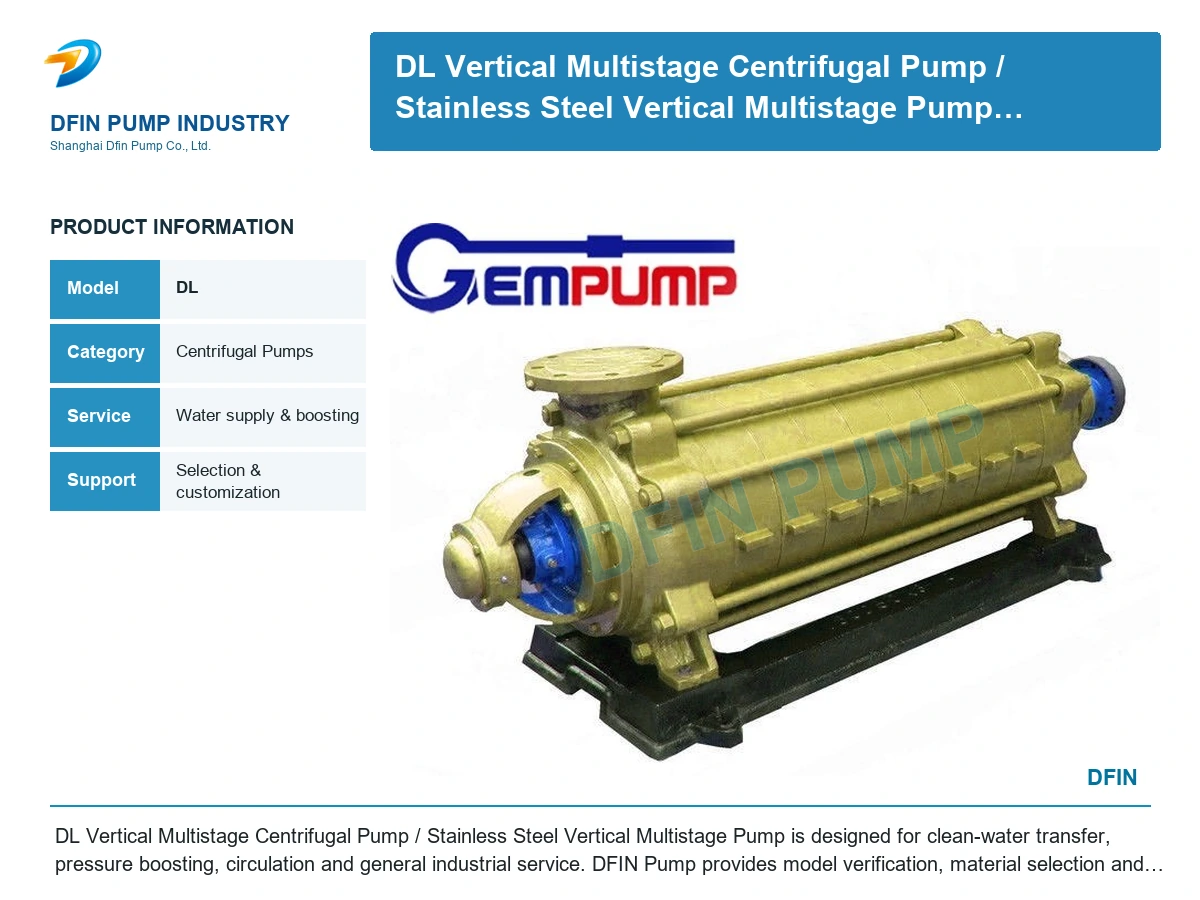

DL Vertical Multistage Centrifugal Pump/ Stainless Steel Vertical Multistage Pump

Name: DL Vertical Multistage Centrifugal Pump/ Stainless Steel Vertical Multistage Pump
Brand: DFIN PUMP
SKU: DL

Model: DL

DL Vertical Multistage Centrifugal Pump/ Stainless Steel Vertical Multistage Pump is designed for clean-water transfer, pressure boosting, circulation and general industrial service. DFIN Pump provides model verification, material selection and technical support based on the actual duty point.

TECHNICAL DATA

Specifications, performance and construction

Confirm the final operating point, materials, motor and connection standard before ordering.

Product Overview

DL Vertical Multistage Centrifugal Pump/ Stainless Steel Vertical Multistage Pump is an industrial centrifugal pump selected for clean-water transfer, pressure boosting, circulation and general industrial service. The final configuration should be verified against the actual liquid, duty point, temperature, installation and power supply.

Typical Applications

Clean-water transfer, pressure boosting, circulation and general industrial service.

Design Features

Compact hydraulic design
Stable flow with low vibration
Multiple materials and motor options
Model and material selection supported by DFIN Pump engineers

Extracted Operating Data

，、 4.9～200m3/h， 22～239m， 1.5～160KW
， φ40～φ150mm

Values are reference data from the authorized source catalog. Confirm the selected model before ordering.

Technical Performance Data

model	Level Number	Port Size (mm)	Flow (m3/h)	Head (m)	Power (KW)	Speed (r/min)	NPSHr (m)
40DL(DLR)6-12	2	40	6	24	1.5	1480	3.2
	3			36	2.2
	4			48	3
	5			60	4
	6			72	4
	7			84	5.5
	8			96	5.5
	9			108	7.5
	10			120	7.5
	11			132	7.5
	12			144	11
50DL(DLR)12.5-12.5	2	50	12.5	25	3	1480	2.2
	3			3.75	3
	4			50	4
	5			62.5	5.5
	6			75	7.5
	7			87.5	7.5
	8			100	7.5
	9			112.5	11
	10			125	11
65DL(DLR)30-15	2	65	30	30	5.5	1480	2.82
	3			45	7.5
	4			60	11
	5			75	15
	6			90	15
	7			105	18.5
	8			120	22
	9			135	22
	10			150	30
80DL(DLR)50-20	2	80	50	40	11	1480	2.2
	3			60	15
	4			80	22
	5			100	30
	6			120	3.
	7			140	37
	8			160	45
	9			180	45
	10			200	55
100DL(DLR)72-20	2	100	72	40	15	1480	2.8
	3			60	18.5
	4			80	30
	5			100	37
	6			120	37
	7			140	45
	8			160	55
	9			180	55
	10			200	75
100DL(DLR)100-20	2	100	100	40	18.5	1480	2.8
	3			60	30
	4			80	37
	5			100	45
	6			120	55
	7			140	75
	8			160	75
	9			180	90
	10			200	90
150DL(DLR)150-20	2	150	150	40	30	1480	2.8
	3			60	37
	4			80	45
	5			100	55
	6			120	75
	7			140	90
	8			160	90
	9			180	110
	10			200	132
150DL(DLR)165-20	2	150	160	50	37	1480	3.5
	3			75	55
	4			100	75
	5			125	90
	6			150	110
	7			175	132
	8			200	132
	9			225	160
	10			250	160
150DL(DLR)200-20	2	150	200	40	37	1480	3.5
	3			60	55
	4			80	73
	5			100	90
	6			120	110
	7			140	110
	8			160	132
200DL(DLR)300-20	2	200	300	40	55	1480	5
	3			60	75
	4			80	110
	5			100	132
	6			120	160
	7			140	160
	8			160	200

Selection Information Required

Please provide medium, concentration, flow, total head or pressure, temperature, viscosity or solids, voltage, frequency and installation method. DFIN Pump will confirm the suitable model and materials.

Catalog reference: authorized YZJ product data · Model DL
