Sewage Pumps

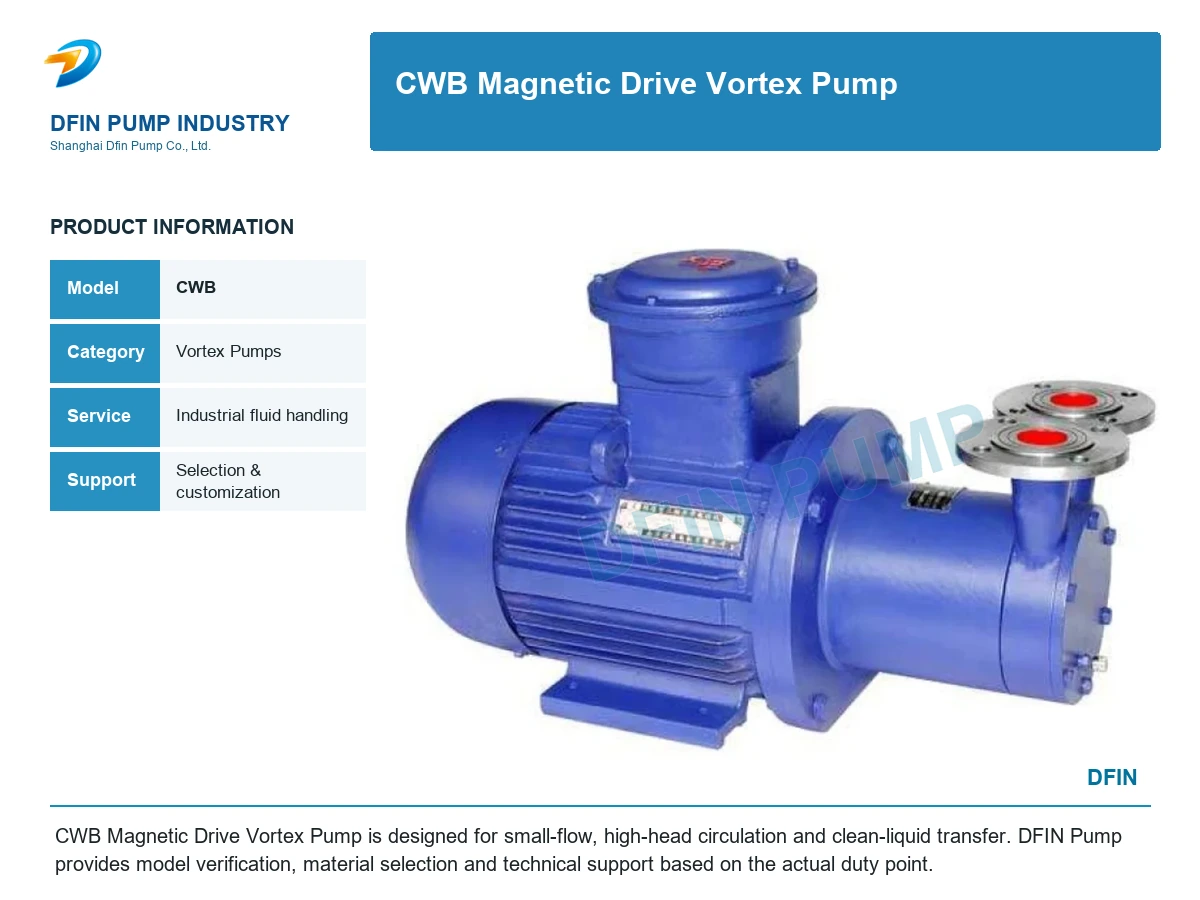

CWB Magnetic Drive Vortex Pump
Model: CWB
CWB Magnetic Drive Vortex Pump is designed for small-flow, high-head circulation and clean-liquid transfer. DFIN Pump provides model verification, material selection and technical support based on the actual duty point.
TECHNICAL DATA
Specifications, performance and construction
Confirm the final operating point, materials, motor and connection standard before ordering.
Product Overview
CWB Magnetic Drive Vortex Pump is an industrial vortex pump selected for small-flow, high-head circulation and clean-liquid transfer. The final configuration should be verified against the actual liquid, duty point, temperature, installation and power supply.
Typical Applications
Small-flow, high-head circulation and clean-liquid transfer.
Design Features
- Compact impeller design
- Stable operation
- Simple maintenance
- Model and material selection supported by DFIN Pump engineers
Technical Performance Data
| Model | Value | Inhalation Diameter （mm） |
Accomplished by Motor Power （KW） |
Pumper Material |
Speed n (r/min) |
||
|
Flow Q （m3/h） |
Head H （m） |
NPSHr （NPSH）r （m） |
|||||
| C15W-50 | 0.36 | 50 | 3.3 | 15 | 0.55 | No rust steel （1Cr18Ni9Ti) |
2900 |
| C20W-20 | 0.72 | 20 | 4.3 | 20 | 0.25 | ||
| C20W-50 | 1 | 50 | 4.3 | 20 | 2.2 | ||
| C20W-60 | 0.72 | 60 | 4.3 | 20 | 2.2 | ||
| C25W-25 | 1.44 | 25 | 4.3 | 25 | 0.55 | ||
| C25W-50 | 2 | 50 | 4.8 | 25 | 2.2 | ||
| C25W-60 | 1.44 | 60 | 4.8 | 25 | 2.2 | ||
| C32W-50 | 2.88 | 50 | 4.8 | 32 | 3 | ||
| C32W-75 | 2.88 | 75 | 5.3 | 32 | 3 | ||
| C32W-120 | 2.88 | 120 | 6.3 | 32 | 4 | ||
| C40W-150 | 5.4 | 150 | 6.8 | 40 | 7.5 | ||
| C10WL-100 | 0.48 | 100 | 4.3 | 10 | 1.5 | ||
| C10WL-110 | 0.24 | 110 | 4.3 | 10 | 1.5 | ||
| C10WL-120 | 0.12 | 120 | 4.3 | 10 | 1.5 | ||
Selection Information Required
Please provide medium, concentration, flow, total head or pressure, temperature, viscosity or solids, voltage, frequency and installation method. DFIN Pump will confirm the suitable model and materials.
Catalog reference: authorized YZJ product data · Model CWB
