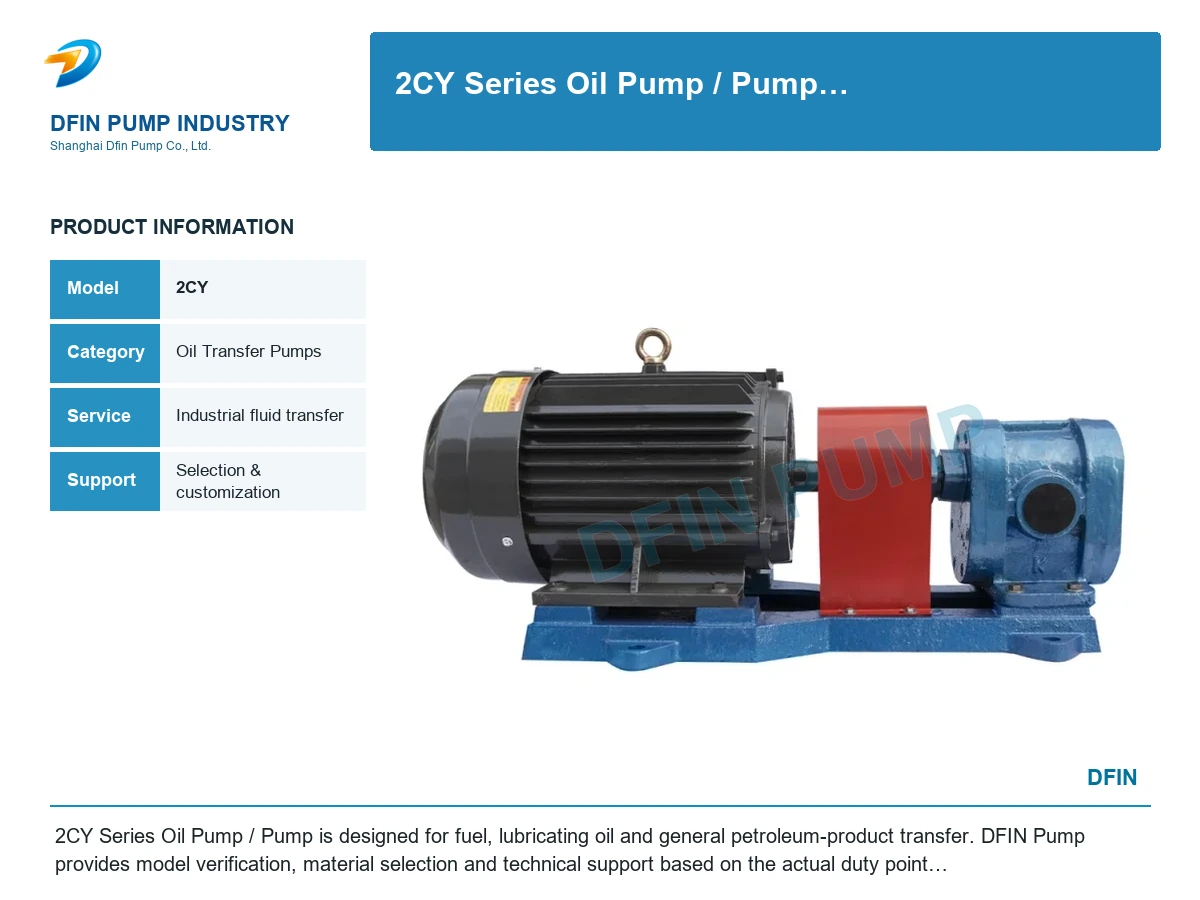

Reference image. Final construction follows the confirmed model and quotation.
Oil Transfer Pumps
2CY Series Oil Pump/ Pump
Model: 2CY
2CY Series Oil Pump/ Pump is designed for fuel, lubricating oil and general petroleum-product transfer. DFIN Pump provides model verification, material selection and technical support based on the actual duty point.
TECHNICAL DATA
Specifications, performance and construction
Confirm the final operating point, materials, motor and connection standard before ordering.
Product Overview
2CY Series Oil Pump/ Pump is an industrial oil transfer pump selected for fuel, lubricating oil and general petroleum-product transfer. The final configuration should be verified against the actual liquid, duty point, temperature, installation and power supply.
Typical Applications
Fuel, lubricating oil and general petroleum-product transfer.
Design Features
- Steady delivery
- Compact construction
- Multiple drive and seal options
- Model and material selection supported by DFIN Pump engineers
Extracted Operating Data
- , 10°E(75C.ST) , 80℃ , 、 、
Values are reference data from the authorized source catalog. Confirm the selected model before ordering.
Technical Performance Data
|
Model Specification |
Port Size |
Speed |
Flow |
Power |
Ease out the pressure. |
Allow vacuuming |
|
2CY1.1/14.5-2（KCB-18.3） |
3/4 ″ |
1450 |
18.3 |
1.5 |
1.45 |
5 |
|
2CY2/14.5-2（KCB-33.3） |
3/4 ″ |
1450 |
33.3 |
2.2 |
1.45 |
5 |
|
2CY3.3/3.3-2（KCB-55） |
1 ″ |
1450 |
55 |
1.5 |
0.33 |
5 |
|
2CY3.3/5-2（KCB-55） |
1 ″ |
1450 |
55 |
2.2 |
0.33 |
5 |
|
2CY5/3.3-2（KCB-83.3） |
1 1 / 2″ |
1450 |
83.3 |
2.2 |
0.33 |
5 |
|
2CY5/5-2（KCB83.3） |
1 1 / 2″ |
1450 |
83.3 |
3 |
0.50 |
5 |
|
2CY8/3.3-2（KCB200） |
2 ″ |
1450 |
200 |
4 |
0.33 |
5 |
|
2CY12/1.3-2（KCB200） |
2 ″ |
1450 |
200 |
4 |
0.13 |
5 |
|
2CY12/3.3-2（KCB200） |
2 ″ |
1450 |
200 |
5.5 |
0.33 |
5 |
|
2CY12/6-2（KCB200） |
2 ″ |
1450 |
200 |
5.5 , |
0.60 |
5 |
|
2CY12/10-2（KCB200） |
2 ″ |
1450 |
200 |
7.5 |
1.00 |
5 |
|
2CY18/3.6-2（KCB300） |
3 ″ |
1000 |
300 |
5.5 |
0.36 |
5 |
|
2CY18/3.6-2（KCB300） |
3 ″ |
1450 |
300 |
7.5 |
0.36 |
5 |
|
2CY29/3.6-2（KCB483.3） |
3 ″ |
1450 |
483.3 |
7.5 |
0.36 |
5 |
|
2CY29/10-2（KCB483.3） |
3 ″ |
1450 |
483.3 |
11 |
1.00 |
5 |
|
2CY38/2.8-2（KCB633-2） |
4 ″ |
1000 |
633 |
11 |
0.28 |
5 |
|
2CY38/8-2（KCB633-2） |
4 ″ |
1450 |
633 |
22 |
0.80 |
5 |
|
2CY-60/3-2（KCB960-2） |
4 ″ |
1450 |
960 |
18.5 |
0.30 |
5 |
|
2CY-60/6-2（KCB960-2） |
4 ″ |
1450 |
960 |
30 |
0.30 |
5 |
|
Model |
With Motor |
H |
H1 |
L |
L1 |
L2 |
L3 |
L4 |
B |
A |
s |
|
2CY1.08 |
Y90L-4 |
115 |
227 |
512 |
426 |
50 |
68 |
280 |
220 |
180 |
95 |
|
2CY2.1 |
Y100L2-4 |
126 |
295 |
573 |
473 |
57 |
73 |
320 |
250 |
205 |
110 |
|
2CY3 |
Y112M-4 |
126 |
305 |
587 |
480 |
57 |
73 |
320 |
290 |
||
|
2CY4.2 |
Y132S-4 |
168 |
375 |
702 |
612 |
72 |
98 |
430 |
340 |
250 |
142 |
|
2CY7.5 |
Y132M-4 |
168 |
375 |
744 |
612 |
72 |
98 |
430 |
340 |
|
Phenomenon |
Causes |
Troubleshooting |
||
|
No platoon. Oil or Oil. Small
|
1. Inhalation altitude exceeding rated values 2. Inhalation of leaks in the pipeline Three, not the right direction. 4. Inhalation pipe congestion or valve closure 5. Safety valve death or injury 6. Low liquid temperature and increased viscosity |
Improved inhaled surfaces Check the interfaces so they can be sealed. 3. Corrected in the direction indicated by the pump Check if the pipes are blocked and the valves are fully open. 5. Dismantling of safety valves and grinding of valve holes with fine grinding 6. Non-pressure for heating liquids or ^ |
||
|
seal Oil spill.
|
1. Sealring wear 2. Closure of filling wear and tear 3. Impairment of mechanical seals or scratches 4. Mechanical seal spring failure |
1. Replacement of seals 2. Regulated filling caps are relaxed so that they are not missing and the axes can be rotated; supplementary fillings 3. Replacement of a moving ring or rearrangement 4. Change springs |
||
|
Noise It's a shock. Big
|
1. Blockage of inhalation tubes or filters 2. Lightness of the inhaler tube to the liquid surface 3. Into the air inside the pipe Four, there's too much resistance to draining. 5. Serious wear and tear on gear bearings or sides 6. Too much viscosity in inhalation fluid 7. Inhalation altitude exceeding rated values |
1. Elimination of pollution from filtering networks 2. Inhalation tubes shall reach below the liquid surface 3. Check the links and seal them 4. Check for leaking pipes and valves. 5. Dismantling and cleaning and repairing defects or replacing 6. Temperature-reducing viscous treatment 7. Reducing the level and length of suction |
||
Selection Information Required
Please provide medium, concentration, flow, total head or pressure, temperature, viscosity or solids, voltage, frequency and installation method. DFIN Pump will confirm the suitable model and materials.
