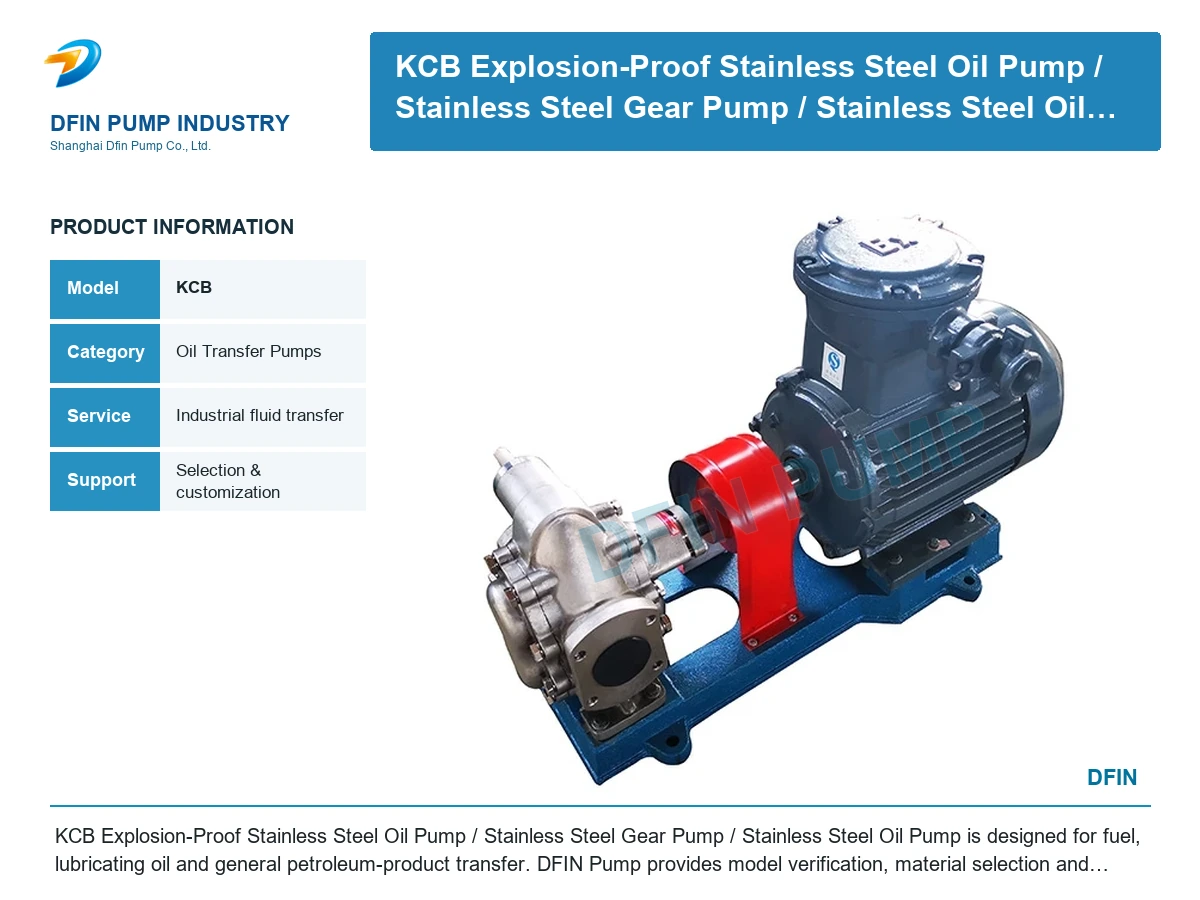

KCB Explosion-Proof Stainless Steel Oil Pump/ Stainless Steel Gear Pump/ Stainless Steel Oil Pump

Gear pump failure

Reason analysis

Troubleshooting

KCB gear pumps are either non-oil or low discharge

1. Inhalation altitude exceeding rated values
2. Inhalation of leaks in the pipeline
3. The rotation is not in the right direction
4. Inhalation pipe congestion or valve closure
5. Death or injury to safety valves
6. Low liquid temperature and increased viscosity

1. Increased inhaled surface
2. Check the interfaces for sealing of sealed materials such as cotton
3. Directional correction indicated by the pumping
4. Check whether the pipes are blocked and whether the valves are fully open
5. Dismantling of safety valves and grinding of valve holes with fine grinding.
6. Give hydrothermal rest or, if not possible, reduce discharge pressure or release Flow

Oil spill from KCB gear pump seal

1. The axle seal is not adjusted
Seals are worn and gap is increased
3. The graft face of the mechanical sealed static ball is damaged or is defective, such as a prick, a scratch, etc.
4. Springs loose

Readjustment
2. Tightening of nuts or replacement of seals
3. Replacement of motion rings or grinding
Change springs

High noise or vibration from KCB gear pump

Inhalation tube or filter blockage
2. Inhalation tube reaches shallower surfaces
3. Access to air within pipelines
There's too much resistance to venting.
5. Serious wear and tear of gear bearings or sides
6. Interference in the turnover
7. Inhalation of liquids is too sticky
Inhalation altitude above rated weight

1. Elimination of filtration web contamination
2. Inhalation tubes should extend to the depth of the liquid pool or so
3. Check the links and seal them
4. Check for leaking pipes and valves
5. Dismantling, repairing or replacing defects
6. Dismantling and troubleshooting
7. Legacy determinations and treatment under article 6 of the first phenomenon in Table II
8. Improvement of the inhaled surface
