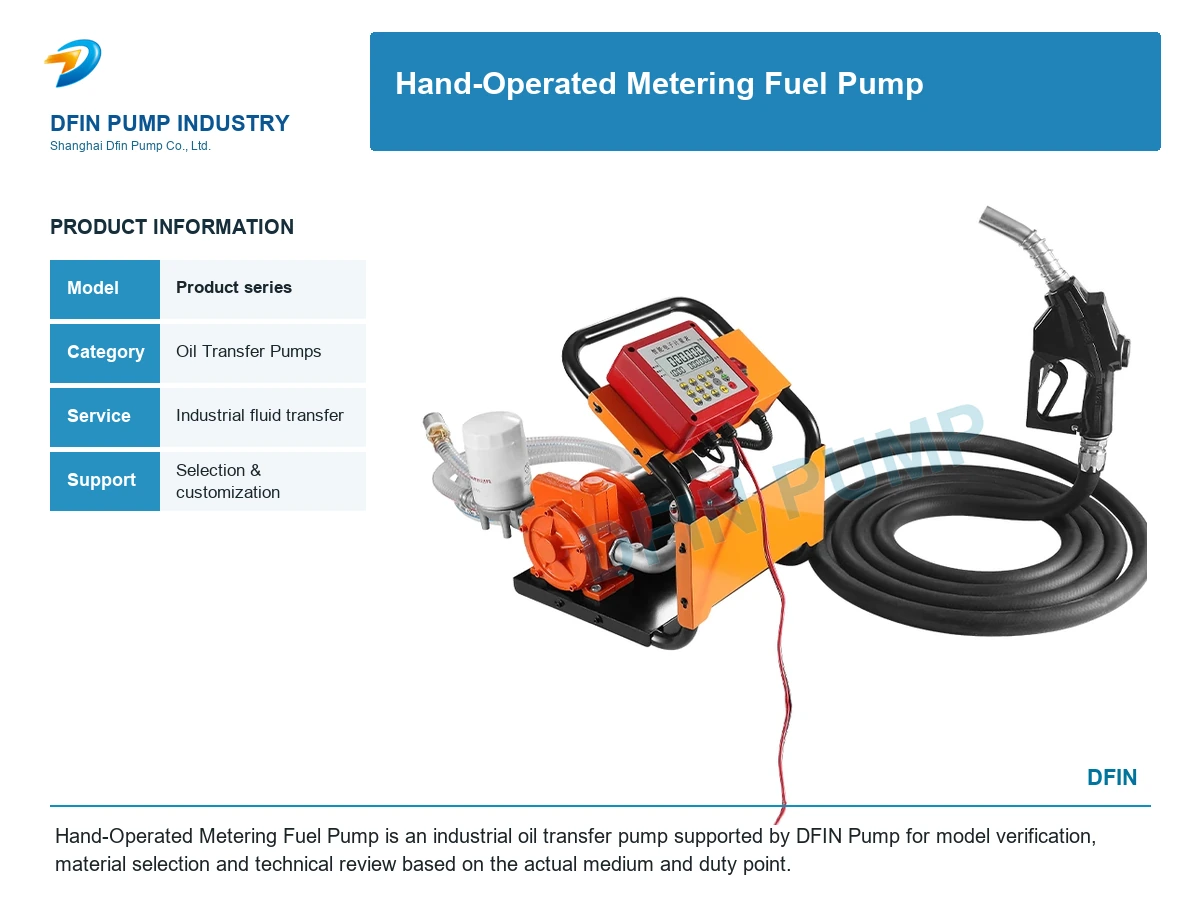

Reference image. Final construction follows the confirmed model and quotation.
Oil Transfer Pumps
Hand-Operated Metering Fuel Pump
Model: Available on request
Hand-Operated Metering Fuel Pump is an industrial oil transfer pump supported by DFIN Pump for model verification, material selection and technical review based on the actual medium and duty point.
TECHNICAL DATA
Specifications, performance and construction
Confirm the final operating point, materials, motor and connection standard before ordering.
Product Overview
Hand-Operated Metering Fuel Pump is an industrial oil transfer pump selected for fuel, lubricating oil and general petroleum-product transfer. The final configuration should be verified against the actual liquid, duty point, temperature, installation and power supply.
Typical Applications
Fuel, lubricating oil and general petroleum-product transfer.
Design Features
- Steady delivery
- Compact construction
- Multiple drive and seal options
- Model and material selection supported by DFIN Pump engineers
Extracted Operating Data
- ：25mm ：55～65L/min ：5m ：25m
- ：±1% ：0.75KW ：380V ：75kg ：999L
Values are reference data from the authorized source catalog. Confirm the selected model before ordering.
Technical Performance Data
| Port Size(mm) | Flow(L/min) | Suction Lift(m) | Head(m) | Measuring precision |
| 25 | 40-65 | 4-5 | 20-25 | ±1% |
Selection Information Required
Please provide medium, concentration, flow, total head or pressure, temperature, viscosity or solids, voltage, frequency and installation method. DFIN Pump will confirm the suitable model and materials.
Catalog reference: authorized YZJ product data · Model available on request
SELECTION SUPPORT
Application-based pump selection
Send the liquid, flow, head or pressure, temperature, solids, installation, power supply and destination for a verified recommendation.
