Other Industrial Pumps

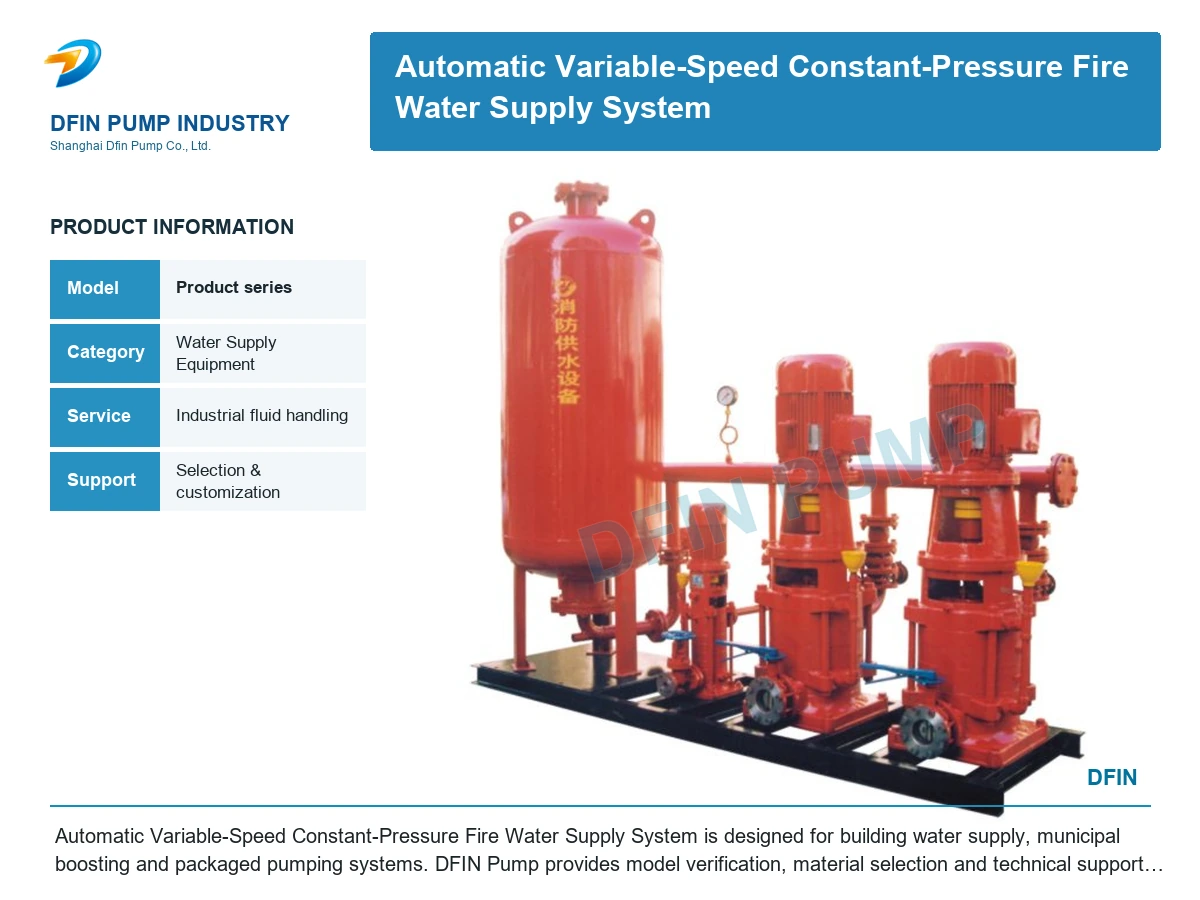

Automatic Variable-Speed Constant-Pressure Fire Water Supply System
Model: Available on request
Automatic Variable-Speed Constant-Pressure Fire Water Supply System is designed for building water supply, municipal boosting and packaged pumping systems. DFIN Pump provides model verification, material selection and technical support based on the actual duty point.
TECHNICAL DATA
Specifications, performance and construction
Confirm the final operating point, materials, motor and connection standard before ordering.
Product Overview
Automatic Variable-Speed Constant-Pressure Fire Water Supply System is an industrial water supply equipment selected for building water supply, municipal boosting and packaged pumping systems. The final configuration should be verified against the actual liquid, duty point, temperature, installation and power supply.
Typical Applications
Building water supply, municipal boosting and packaged pumping systems.
Design Features
- Integrated pumps and controls
- Constant-pressure operation
- Project-specific configuration
- Model and material selection supported by DFIN Pump engineers
Extracted Operating Data
- ：≤360m3/h ：≤2.5MPa ：-20℃～110℃ ：≤315kW
- ：≤0.01MPa
- ：≤360m3/h ：≤2.5MPa ：-20℃～110℃ ：≤315kW ：≤0.01MPa
Values are reference data from the authorized source catalog. Confirm the selected model before ordering.
Technical Performance Data
|
The device's Headm |
20 |
26 |
32 |
40 |
50 |
60 |
70 |
80 |
100 |
120 |
|
Water supply heightm |
10 |
14 |
18 |
25 |
32 |
38 |
46 |
55 |
72 |
88 |
|
Flowm3/h for devices |
6 |
12 |
18 |
25 |
36 |
50 |
|
Number of water users |
20~30 |
40~60 |
60~100 |
100~150 |
150~200 |
200~300 |
|
Flowm3/h for devices |
75 |
100 |
150 |
200 |
250 |
|
Number of water users |
400~500 |
600~1000 |
1000~1500 |
1500~2000 |
2000~3000 |
Selection Information Required
Please provide medium, concentration, flow, total head or pressure, temperature, viscosity or solids, voltage, frequency and installation method. DFIN Pump will confirm the suitable model and materials.
Catalog reference: authorized YZJ product data · Model available on request
