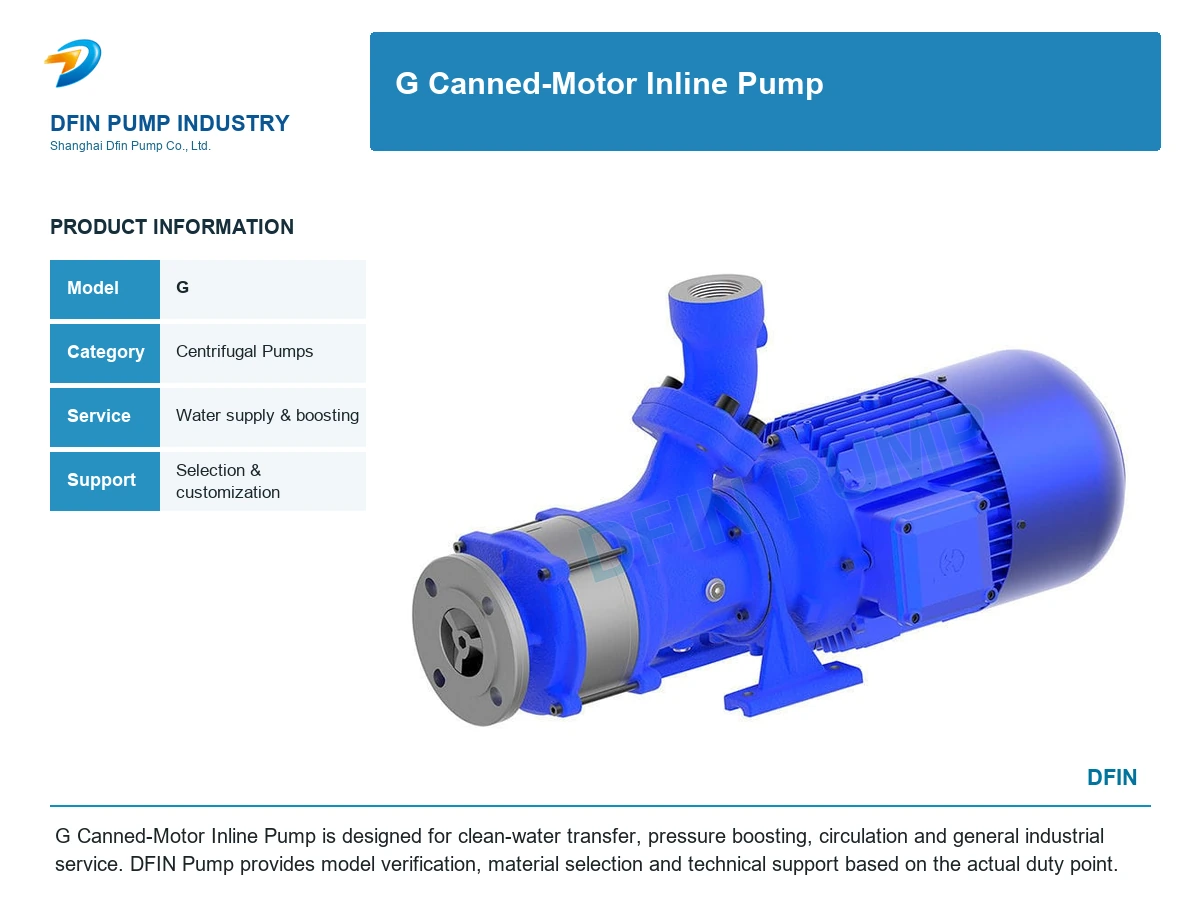

G Canned-Motor Inline Pump

Name: G Canned-Motor Inline Pump
Brand: DFIN PUMP
SKU: G

Model: G

G Canned-Motor Inline Pump is designed for clean-water transfer, pressure boosting, circulation and general industrial service. DFIN Pump provides model verification, material selection and technical support based on the actual duty point.

TECHNICAL DATA

Specifications, performance and construction

Confirm the final operating point, materials, motor and connection standard before ordering.

Product Overview

G Canned-Motor Inline Pump is an industrial centrifugal pump selected for clean-water transfer, pressure boosting, circulation and general industrial service. The final configuration should be verified against the actual liquid, duty point, temperature, installation and power supply.

Typical Applications

Clean-water transfer, pressure boosting, circulation and general industrial service.

Design Features

Compact hydraulic design
Stable flow with low vibration
Multiple materials and motor options
Model and material selection supported by DFIN Pump engineers

Extracted Operating Data

3、 1.2Mpa， 0.5Mpa,
2、 80℃, 120℃
4、 40℃， 95%

Values are reference data from the authorized source catalog. Confirm the selected model before ordering.

Technical Performance Data

No.	Model	Flow		Head(m)	Efficiency	Speed	Motor Power(kw)	RequiredNPSHr
No.	Model	m3/h	L/S	Head(m)	Efficiency	Speed	Motor Power(kw)	RequiredNPSHr
1	PBG40-100	6.3	1.75	12.5	54	1450	0.55	3.5
2	PBG40-100A	5.6	1.56	10	52	1450	0.37	3.5
3	PBG40-125	6.3	1.75	20	46	1450	1.1	3.5
4	PBG40-125A	5.6	1.56	16	45	2900	0.75	3.5
5	PBG40-160	6.3	1.75	32	40	2900	2.2	3.5
6	PBG40-160A	5.9	1.64	28	39	2900	1.5	3.5
7	PBG40-160B	5.5	1.53	24	38	2900	1.1	3.5
8	PBG40-200	6.3	1.75	50	33	2900	4	3.5
9	PBG40-200A	5.9	1.64	44	31	2900	3	3.5
10	PBG40-200B	5.3	1.47	36	29	2900	2.2	3.5
11	PBG40-250	6.3	1.75	80	28	2900	7.5	3.5
12	PBG40-250A	5.9	1.64	70	28	2900	5.5	3.5
13	PBG40-250B	5.5	1.53	60	27	2900	4	3.5
14	PBG40-100(I)	12.5	3.47	12.5	62	1450	1.1	3.5
15	PBG40-100(I)A	11	3.05	10	60	1450	0.75	3.5
16	PBG40-125(I)	12.5	3.47	20	58	1450	1.5	3.5
17	PBG40-125(I)A	11	3.05	16	57	1450	1.1	3.5
18	PBG40-160(I)	12.5	3.47	32	52	2900	3	3.5
19	PBG40-160(I)A	11.7	3.25	28	51	2900	2.2	3.5
20	PBG40-160(I)B	10.4	2.89	22	50	2900	1.5	3.5
21	PBG40-200(I)	12.5	3.47	50	46	2900	5.5	3.5
22	PBG40-200(I)A	11.7	3.25	44	45	2900	4	3.5
23	PBG40-200(I)B	10.6	2.94	36	44	2900	3	3.5
24	PBG40-250(I)	12.5	3.47	80	38	2900	11	3.5
25	PBG40-250(I)A	11.6	3.22	70	38	2900	7.5	3.5
26	PBG40-250(I)B	10.8	3	60	37	2900	7.5	3.5
27	PBG40-250(I)C	10	2.78	52	36	2900	5.5	3.5
28	PBG50-100	12.5	3.47	12.5	62	1450	1.1	3.5
29	PBG50-100A	11	3.05	10	60	1450	0.75	3.5
30	PBG50-125	12.5	3.47	20	58	1450	1.5	3.5
31	PBG50-125A	11	3.05	16	57	1450	1.1	3.5
32	PBG50-160	12.5	3.47	32	52	2900	3	3.5
33	PBG50-160A	11.7	3.25	28	51	2900	2.2	3.5
34	PBG50-160B	10.4	2.89	22	50	2900	1.5	3.5
35	PBG50-200	12.5	3.47	50	46	2900	5.5	3.5
36	PBG50-200A	11.7	3.25	44	45	2900	4	3.5
37	PBG50-200B	10.6	2.94	36	44	2900	3	3.5
38	PBG50-250	12.5	3.47	80	38	2900	11	3.5
39	PBG50-250A	11.6	3.22	70	38	2900	7.5	3.5
40	PBG50-250B	10.8	3	60	37	2900	7.5	3.5
41	PBG50-250C	10	2.78	52	36	2900	5.5	3.5
42	PBG50-100(I)	25	6.94	12.5	69	1450	1.5	3.8
43	PBG50-100(I)A	22.3	6.19	10	67	1450	1.1	3.8
44	PBG50-125(I)	25	6.94	20	68	1450	3	3.8
45	PBG50-125(I)A	22.3	6.49	16	66	1450	2.2	3.8
46	PBG50-160(I)	25	6.94	32	63	1450	4	3.8
47	PBG50-160(I)A	23.4	6.5	28	62	1450	4	3.8
48	PBG50-160(I)B	21.6	6	24	58	1450	3	3.8
49	PBG50-200(I)	25	6.94	50	58	2900	7.5	3.8
50	PBG50-200(I)A	23.5	6.53	44	57	2900	7.5	3.8
51	PBG50-200(I)B	21.8	6.06	38	55	2900	5.5	3.8
52	PBG50-250(I)	25	6.94	80	50	2900	15	3.8
53	PBG50-250(I)A	23.4	6.5	70	50	2900	11	3.8
54	PBG50-250(I)B	21.6	6	60	48	2900	11	3.8
55	PBG50-315(I)	25	6.94	125	40	2900	30	3.8
56	PBG50-315(I)A	23.7	6.58	113	40	2900	22	3.8
57	PBG50-315(I)B	22.5	6.25	101	39	2900	18.5	3.8
58	PBG50-315(I)C	20.6	5.72	85	38	2900	15	3.8
59	PBG65-100	25	6.94	12.5	69	1450	1.2	3.8
60	PBG65-100A	22.3	6.19	10	67	1450	1.1	3.8
61	PBG65-125	25	6.94	20	68	1450	3	3.8
62	PBG65-125A	22.3	6.19	16	66	1450	2.2	3.8
63	PBG65-160	25	6.94	32	63	1450	4	3.8
64	PBG65-160A	23.4	6.5	28	62	1450	4	3.8
65	PBG65-160B	21.6	6	24	58	1450	3	3.8
66	PBG65-200	25	6.94	50	58	2900	7.5	3.8
67	PBG65-200A	23.5	6.53	44	57	2900	7.5	3.8
68	PBG65-200B	21.8	6.06	38	55	2900	5.5	3.8
69	PBG65-250	25	6.94	80	50	2900	15	3.8
70	PBG65-250A	23.4	6.5	70	50	2900	11	3.8
71	PBG65-250B	21.6	6	60	49	2900	11	3.8
72	PBG65-315	25	6.94	125	40	2900	30	3.8
73	PBG65-315A	23.7	6.58	113	40	2900	22	3.8
74	PBG65-315B	22.5	6.25	101	39	2900	18.5	3.8
75	PBG65-315C	20.6	5.72	85	38	2900	15.5	3.8
76	PBG65-100(I)	50	13.9	12.5	73	1450	3	4.2
77	PBG65-100(I)A	44.7	12.5	10	72	1450	2.2	4.2
78	PBG65-125(I)	50	13.9	20	72.5	1450	5.5	4.2
79	PBG65-125(I)A	45	12.5	16	71	1450	4	4.2
80	PBG65-160(I)	50	13.9	32	71	1450	7.5	4.2
81	PBG65-160(I)A	46.7	13	28	70	1450	7.5	4.2
82	PBG65-160(I)B	43.3	12	24	69	1450	5.5	4.2
83	PBG65-200(I)	50	13.9	50	67	2900	15	4.2
84	PBG65-200(I)A	47	13.1	44	66	2900	11	4.2
85	PBG65-200(I)B	43.5	12.1	38	65	2900	7.5	4.2
86	PBG65-250(I)	50	13.9	80	59	2900	22	4.2
87	PBG65-250(I)A	46.7	13	70	59	2900	18.5	4.2
88	PBG65-250(I)B	43.3	12	60	58	2900	15	4.2
89	PBG65-315(I)	50	13.9	125	54	2900	34	4.2
90	PBG65-315(I)A	46.5	12.9	110	54	2900	30	4.2
91	PBG65-315(I)B	44.5	12.4	100	53	2900	30	4.2
92	PBG65-315(I)C	41	11.4	85	51	2900	22	4.2
93	PBG80-100	50	13.9	12.5	73	1450	3	4.2
94	PBG80-100A	44.7	12.4	10	72	1450	2.2	4.2
95	PBG80-125	50	13.9	20	72.5	1450	5.5	4.2
96	PBG80-125A	45	12.5	16	71	1450	4	4.2
97	PBG80-160	50	13.9	32	71	1450	7.5	4.2
98	PBG80-160A	46.7	13	28	70	1450	7.5	4.2
99	PBG80-160B	43.3	12	24	69	1450	5.5	4.2
100	PBG80-200	50	13.9	50	67	2900	15.5	4.2
101	PBG80-200A	47	13.1	44	66	2900	11	4.2
102	PBG80-200B	43.5	12.1	38	65	2900	7.5	4.2
103	PBG80-250	50	13.9	80	59	2900	22	4.2
104	PBG80-250A	46.7	13	70	59	2900	18.5	4.2
105	PBG80-250B	43.3	12	60	58	2900	15	4.2
106	PBG80-315	50	13.9	125	54	2900	37	4.2
107	PBG80-315A	46.5	12.9	110	54	2900	30	4.2
108	PBG80-315B	44.5	12.4	100	53	2900	30	4.2
109	PBG80-315C	41	11.4	85	51	2900	22	4.2
110	PBG80-100(I)	100	27.8	12.5	76	1450	5.5	4.2
111	PBG80-100(I)A	89	24.7	10	74	1450	4	4.2
112	PBG80-125(I)	100	27.8	20	76	1450	11	4.2
113	PBG80-125(I)A	89	24.7	16	74	1450	7.5	4.2
114	PBG80-160(I)	100	27.8	32	76	1450	15	4.2
115	PBG80-160(I)A	93.5	26	28	74	1450	11	4.2
116	PBG80-160(I)B	86.6	24.1	24	72	1450	11	4.2
117	PBG80-200(I)	100	27.8	50	74	1450	22	4.2
118	PBG80-200(I)A	93.5	26	44	73	1450	18.5	5.5
119	PBG80-200(I)B	87	24.2	38	71	1450	15	5.5
120	PBG100-100	100	27.8	12.5	76	1450	5.5	5.5
121	PBG100-100A	89	24.7	10	74	1450	4	5.5
122	PBG100-125	100	27.8	20	76	1450	11	5.5
123	PBG100-125A	89	24.7	16	74	1450	7.5	5.5
124	PBG100-160	100	27.8	32	76	1450	15	5.5
125	PBG100-160A	93.5	26	28	74	1450	11	5.5
126	PBG100-160B	86.6	24.1	24	72	1450	11	5.5
127	PBG100-200	100	27.8	50	74	1450	22	5.5
128	PBG100-200A	93.5	26	44	73	1450	18.5	5.5
129	PBG100-200B	87	27.2	38	71	1450	15	5.5
130	PBG125-100	160	44.4	12.5	82	1450	11	5.5
131	PBG125-100A	143	39.7	10	77	1450	7.5	5.5
132	PBG125-125	160	44.4	20	80	1450	15	5.5
133	PBG125-25A	143	39.7	16	77	1450	11	5.5
134	PBG125-160	160	44.4	32	78	1450	22	5.5
135	PBG125-160A	150	41.7	28	76	1450	18.5	5.5
136	PBG125-1160B	138	38.3	24	73	1450	15	5.5
137	PBG125-200	160	44.4	50	77	1450	37	5.5
138	PBG125-200A	150	41.7	44	76	1450	30	5.5
139	PBG125-200B	138	38.3	37.5	75	1450	22	5.5
140	PBG150-200	200	55.6	12.5	78	1450	15	5
141	PBG150-200A	179	49.7	10	76	1450	11	5
142	PBG150-250	200	55.6	20	79	1450	18.5	5
143	PBG150-250A	184.4	51.2	17	78	1450	15	5
144	PBG150-250B	167	46.4	14	76	1450	11	5
145	PBG150-315	200	55.6	32	78	1450	30	5.5
146	PBG150-315A	187	51.9	28	77	1450	22	5.5
147	PBG150-315B	173	48.1	24	76	1450	18.5	5.5
148	PBG150-400	200	55.6	50	75	1450	45	5.5
149	PBG150-400A	187	51.9	44	74	1450	37	5.5
150	PBG150-400B	174	48.3	38	73	1450	30	5.5
151	PBG150-400C	160	44.4	32	71	1450	22	5.5
152	PBG200-200	200	55.6	12.5	78	1450	15	5
153	PBG200-200A	179	49.7	10	76	1450	11	5
154	PBG200-250	200	55.9	20	79	1450	18.5	5
155	PBG200-250A	184.4	51.2	17	78	1450	15	5
156	PBG200-250B	167	46.4	14	76	1450	11.1	5
157	PBG200-315	200	55.6	32	78	1450	30	5.5
158	PBG200-315A	187	51.9	28	77	1450	22	5.5
159	PBG200-315B	173	48.1	24	76	1450	18.5	5.5
160	PBG200-400	200	55.6	50	75	1450	45	5.5
161	PBG200-400A	187	51.9	44	74	1450	37	5.5
162	PBG200-400B	174	48.3	38	73	1450	30	5.5
163	PBG200-400C	160	44.4	32	71	1450	22	5.5
164	PBG200-200(I)	400	111.1	12.5	80	1450	22	5.5
165	PBG200-200(I)A	358	99.4	10	78	1450	18.5	5.5
166	PBG200-250(I)	400	111.4	20	80	1450	30	5.5
167	PBG200-250(I)A	358	99.4	16	78	1450	22	5.5
168	PBG200-250(I)B	322	89.4	13	75	1450	18.5	5.5
169	PBG200-315(I)	400	111.4	32	80	1450	55	5.5
170	PBG200-315(I)A	374	103.9	28	79	1450	45	5.5
171	PBG200-315(I)B	346	96.1	24	78	1450	37	5.5
172	PBG200-400(I)	400	111.4	50	81	1450	75	5.5
173	PBG200-400(I)A	374	103.9	44	80	1450	75	5.5
174	PBG200-400(I)B	346	96.1	30	78	1450	55	5.5
175	PBG200-400(I)C	320	88.9	32	76	1450	45	5.5
176	PBG300-235	720	200	18	81	970	55	6
177	PBG300-235A	657	182.5	15	79	970	45	6
178	PBG300-235B	600	167	12.5	77	970	37	6
179	PBG300-300	720	200	28	81	970	75	6
180	PBG300-300A	666	185	24	80	970	75	6
181	PBG300-300B	623	173.1	21	79	970	55	6
182	PBG300-380	720	200	44	84	970	132	6
183	PBG300-380A	666	185	38	80	970	110	6
184	PBG300-380B	614	170.6	32	78	970	90	6
185	PBG300-235(I)	1080	300	40	82	970	160	6
186	PBG300-235(I)A	965	268.1	32	80	970	132	6

Selection Information Required

Please provide medium, concentration, flow, total head or pressure, temperature, viscosity or solids, voltage, frequency and installation method. DFIN Pump will confirm the suitable model and materials.

Catalog reference: authorized YZJ product data · Model G
