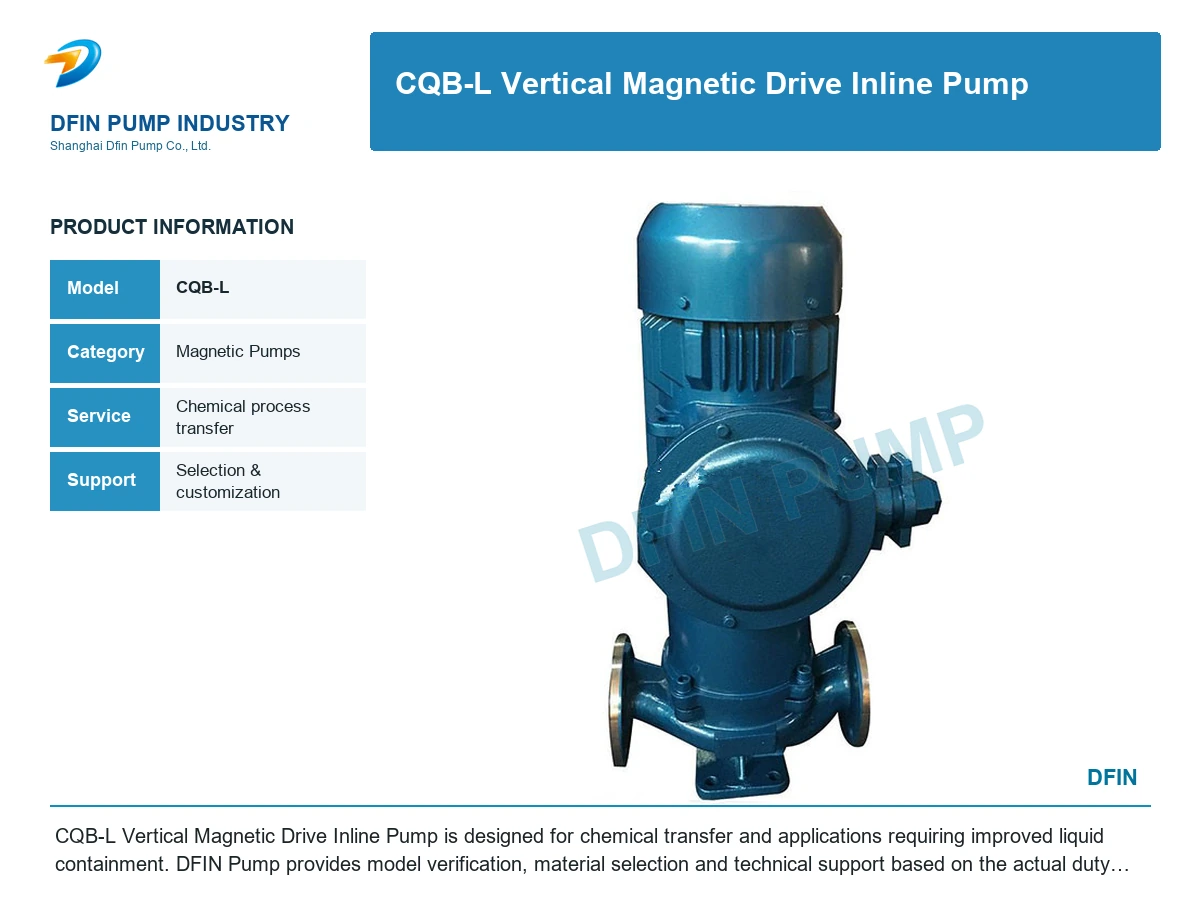

Reference image. Final construction follows the confirmed model and quotation.
Magnetic Pumps
CQB-L Vertical Magnetic Drive Inline Pump
Model: CQB-L
CQB-L Vertical Magnetic Drive Inline Pump is designed for chemical transfer and applications requiring improved liquid containment. DFIN Pump provides model verification, material selection and technical support based on the actual duty point.
TECHNICAL DATA
Specifications, performance and construction
Confirm the final operating point, materials, motor and connection standard before ordering.
Product Overview
CQB-L Vertical Magnetic Drive Inline Pump is an industrial magnetic pump selected for chemical transfer and applications requiring improved liquid containment. The final configuration should be verified against the actual liquid, duty point, temperature, installation and power supply.
Typical Applications
Chemical transfer and applications requiring improved liquid containment.
Design Features
- Sealless magnetic coupling
- Corrosion-resistant material options
- Compact and low-maintenance construction
- Model and material selection supported by DFIN Pump engineers
Technical Performance Data
| 1 | pump casing | 2 | impeller | 3 | sealing ring | 4 | Bearing body |
| 5 | Isolation sleeve | 6 | thrust ring | 7 | Bearing | 8 | Bushing |
| 9 | axis | 10 | Internal magnet assembly | 11 | nut | 12 | Connecting frame |
| 13 | External magnet assembly | 14 | Motor |
| model | Port Size(mm) | Flow (m3/h) | Head (m) | Motor Power (kw) | Voltage (v) | |
| Inlet | Outlet | |||||
| CQB16-8L | 16 | 16 | 1.5 | 8 | 0.12 | 220/380 |
| CQB20-12L | 20 | 20 | 3 | 12 | 0.37 | 220/380 |
| CQB25-15L | 25 | 25 | 6.6 | 15 | 1.1 | 380 |
| CQB32-15L | 32 | 32 | 6.6 | 15 | 1.1 | 380 |
| CQB32-28L | 32 | 32 | 6.6 | 28 | 1.1 | 380 |
| CQB32-32L | 32 | 32 | 3.2 | 32 | 1.5 | 380 |
| CQB40-20L | 40 | 40 | 10.8 | 20 | 2.2 | 380 |
| CQB40-32L | 40 | 40 | 12 | 32 | 4 | 380 |
| CQB40-50L | 40 | 40 | 6.3 | 50 | 5.5 | 380 |
| CQB50-25L | 50 | 50 | 14.4 | 25 | 4 | 380 |
| CQB50-40L | 50 | 50 | 13.2 | 40 | 4 | 380 |
| CQB50-50L | 50 | 50 | 13.2 | 50 | 5.5 | 380 |
| CQB50-80L | 50 | 50 | 12.5 | 80 | 18.5 | 380 |
| CQB65-25L | 65 | 65 | 15 | 25 | 5.5 | 380 |
| CQB65-35L | 65 | 65 | 27 | 35 | 7.5 | 380 |
| CQB65-50L | 65 | 65 | 25 | 50 | 15 | 380 |
| CQB65-80L | 65 | 65 | 25 | 80 | 22 | 380 |
| CQB80-20L | 80 | 80 | 50 | 20 | 7.5 | 380 |
| CQB80-32L | 80 | 80 | 50 | 32 | 15 | 380 |
| CQB80-50L | 80 | 80 | 50 | 50 | 22 | 380 |
| CQB80-80L | 80 | 80 | 50 | 80 | 37 | 380 |
| CQB100-20L | 100 | 100 | 100 | 20 | 15 | 380 |
| CQB100-32L | 100 | 100 | 100 | 32 | 22 | 380 |
| CQB100-50L | 100 | 100 | 100 | 50 | 37 | 380 |
| CQB100-80L | 100 | 100 | 100 | 80 | 55 | 380 |
| Note: CQB20-12---CQB100-80 in the table can be equipped with explosion-proof motor | ||||||
Selection Information Required
Please provide medium, concentration, flow, total head or pressure, temperature, viscosity or solids, voltage, frequency and installation method. DFIN Pump will confirm the suitable model and materials.
Catalog reference: authorized YZJ product data · Model CQB-L
