Chemical Pumps

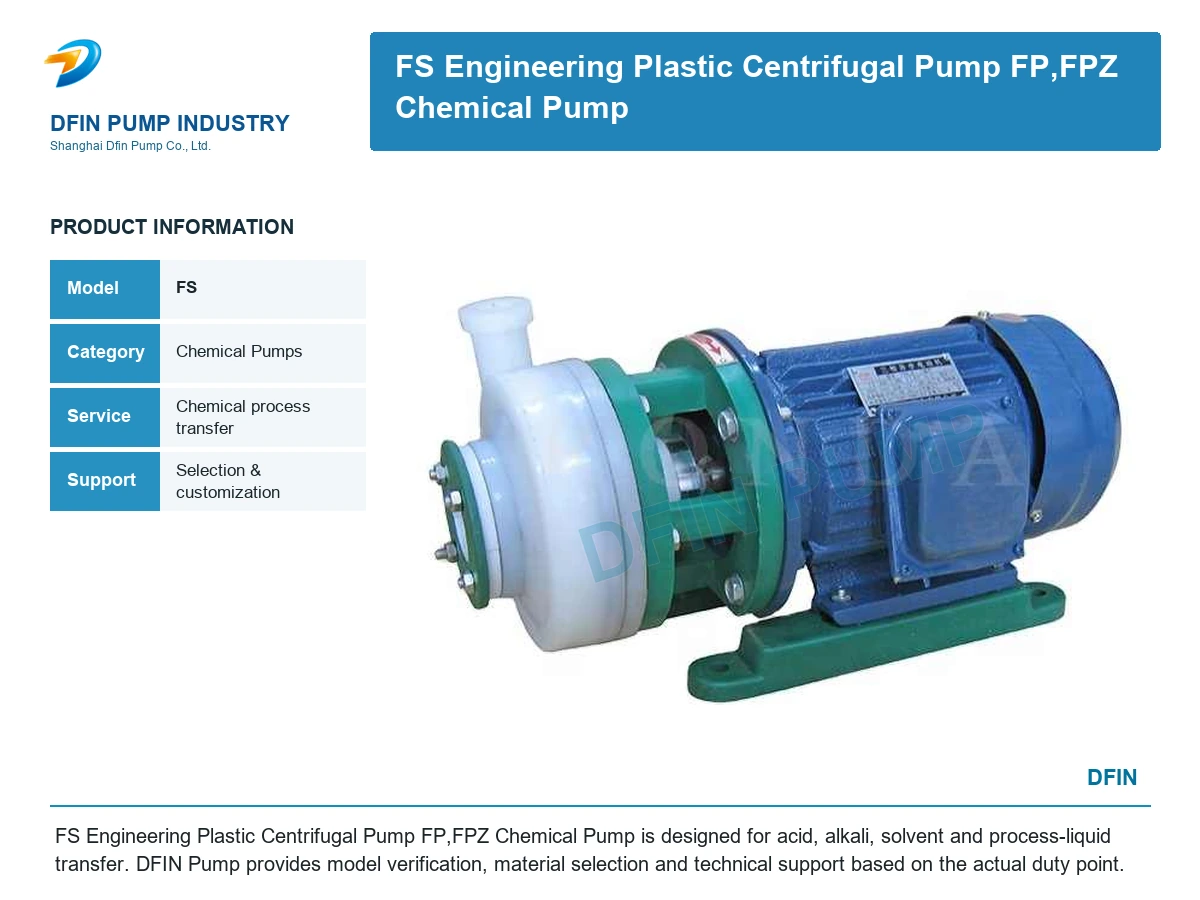

FS Engineering Plastic Centrifugal Pump FP,FPZ Chemical Pump
Model: FS
FS Engineering Plastic Centrifugal Pump FP,FPZ Chemical Pump is designed for acid, alkali, solvent and process-liquid transfer. DFIN Pump provides model verification, material selection and technical support based on the actual duty point.
TECHNICAL DATA
Specifications, performance and construction
Confirm the final operating point, materials, motor and connection standard before ordering.
Product Overview
FS Engineering Plastic Centrifugal Pump FP,FPZ Chemical Pump is an industrial chemical pump selected for acid, alkali, solvent and process-liquid transfer. The final configuration should be verified against the actual liquid, duty point, temperature, installation and power supply.
Typical Applications
Acid, alkali, solvent and process-liquid transfer.
Design Features
- Corrosion-resistant wetted components
- Seal and material options
- Industrial process compatibility
- Model and material selection supported by DFIN Pump engineers
Technical Performance Data
|
Model |
Port Size（mm） |
Flow |
Head |
Suction Lift |
Speed |
Voltage |
Motor Power |
|
|
Inlet |
Outlet |
|||||||
|
FS32-25-100(104) |
32 |
25 |
5 |
7 |
6 |
2900 |
220 |
0.55 |
|
FS32-25-105(103) |
32 |
25 |
6.3 |
8 |
6 |
380 |
0.75 |
|
|
FS40-32-125(102) |
40 |
32 |
12.5 |
20 |
6 |
380 |
1.5 |
|
|
FS65-50-150(101) |
65 |
50 |
25 |
25 |
6 |
380 |
4 |
|
|
model |
flow & nbsp; volume (m3/h) |
Jan process(m) |
Motor Power(kw) |
& nbsp; Speed (r/min) |
Effect Rate （%） |
Inlet×Outlet (mm) |
|
32FP-11 |
3.6 |
11 |
0.75 |
2840 |
46 |
32×25 |
|
40FP-18 |
10 |
18 |
1.5 |
2840 |
55 |
40×32 |
|
50FP-22 |
15 |
22 |
2.2 |
2840 |
52 |
50×40 |
|
50FP-25 |
15 |
25 |
3 |
2840 |
56 |
50×40 |
|
65FP-28 |
18 |
28 |
4 |
2840 |
53 |
65×50 |
|
65FP-32 |
28 |
32 |
5.5 |
2840 |
67 |
65×50 |
|
80FP-30 |
50 |
30 |
7.5 |
2840 |
68 |
80×65 |
|
100FP-40 |
100 |
40 |
15 |
2840 |
71 |
100×80 |
| Media | concentration | RPP enhanced polycrete Plastic | Media | concentration | RPP Enhanced Polycrete Plastic | ||||
| 25oC | 65oC | 90oC | 20oC | 60oC | 80oC | ||||
| Sulphurate H2SO4 | 98% | √ | √ | О | Sulphurate H2SO4 | <30% | √ | x |
|
| 70% | √ | √ |
|
30-70% | О | x |
|
||
| 1-50% | √ | √ | √ | >70% | x | x |
|
||
| Nitrate HNO3 | Heavy | √ | √ | О | Nitrate HNO3 | 10% | √ | О |
|
| 20% | √ | √ | √ | 20% | √ |
|
|
||
| 10% | √ | √ | √ | 25-35% | О |
|
|
||
|
|
|
|
|
>50% | √ | x |
|
||
| Hcl hydrochloric acid | 0-30% | √ | О | x | Hcl hydrochloric acid | >30% | √ | x |
|
| Hydrofluoro acid |
|
√ | x | x | Hydrofluoro acid | >10% | √ | x |
|
| 40-48% | √ | x |
|
||||||
| vinegar & nbsp; Acid | Various concentrations | √ | √ | √ | vinegar & nbsp; Acid
phosphorus Acid |
>20% | √ | О |
|
| phosphorus Acid |
|
√ | √ | √ | >30% | x | x |
|
|
| sodium hydroxide |
|
√ | √ | √ | sodium hydroxide |
|
√ | √ | √ |
| Sodium chloride |
|
√ | √ | √ | Sodium chloride |
|
√ | √ | x |
| Sodium chloride |
|
√ | √ |
|
|||||
| Ethyl alcohol |
|
√ | √ | √ | Ethyl alcohol |
|
√ | √ |
|
| bleach solution |
|
√ | √ | √ | bleach solution |
|
О | О | О |
Selection Information Required
Please provide medium, concentration, flow, total head or pressure, temperature, viscosity or solids, voltage, frequency and installation method. DFIN Pump will confirm the suitable model and materials.
Catalog reference: authorized YZJ product data · Model FS
