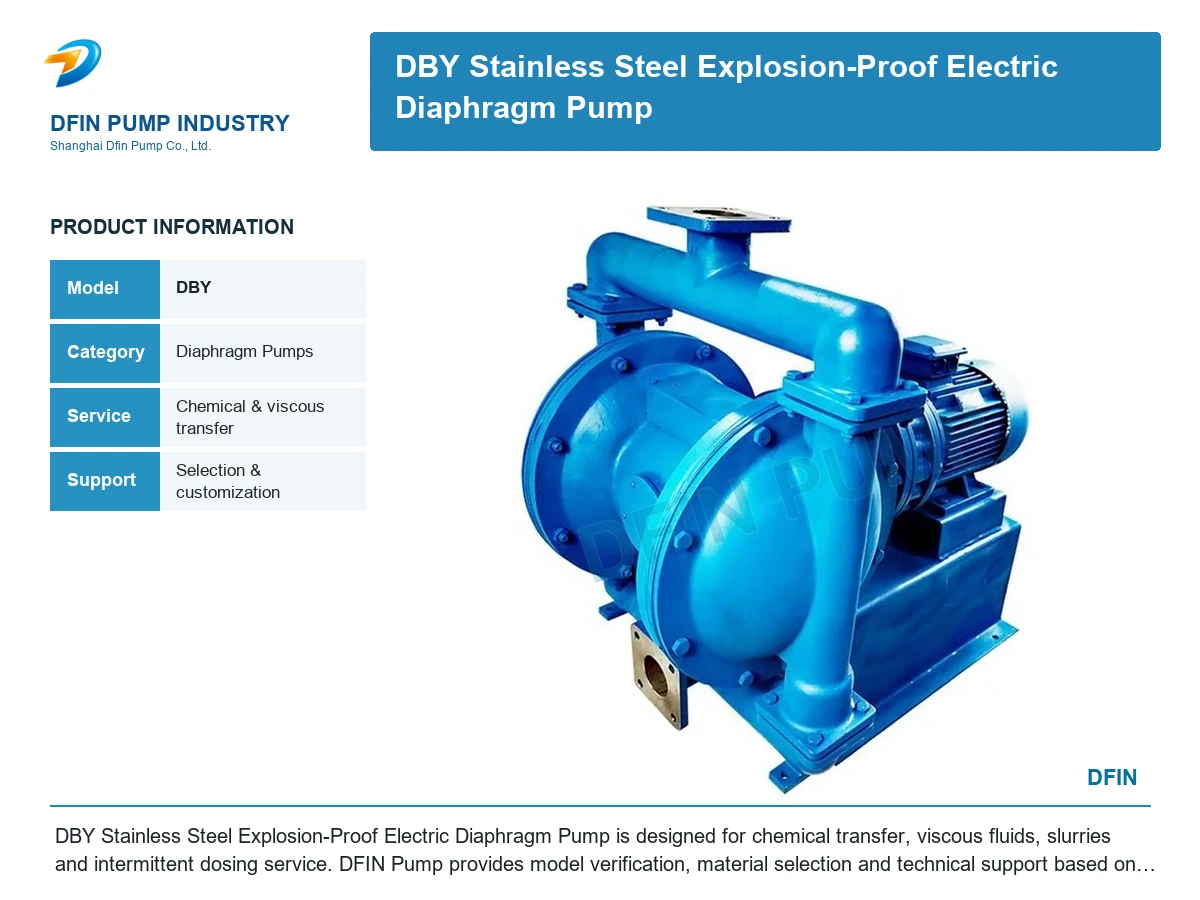

Reference image. Final construction follows the confirmed model and quotation.
Pneumatic Diaphragm Pumps
DBY Stainless Steel Explosion-Proof Electric Diaphragm Pump
Model: DBY
DBY Stainless Steel Explosion-Proof Electric Diaphragm Pump is designed for chemical transfer, viscous fluids, slurries and intermittent dosing service. DFIN Pump provides model verification, material selection and technical support based on the actual duty point.
TECHNICAL DATA
Specifications, performance and construction
Confirm the final operating point, materials, motor and connection standard before ordering.
Product Overview
DBY Stainless Steel Explosion-Proof Electric Diaphragm Pump is an industrial diaphragm pump selected for chemical transfer, viscous fluids, slurries and intermittent dosing service. The final configuration should be verified against the actual liquid, duty point, temperature, installation and power supply.
Typical Applications
Chemical transfer, viscous fluids, slurries and intermittent dosing service.
Design Features
- Positive-displacement operation
- Dry-running capability subject to configuration
- Wide range of wetted materials
- Model and material selection supported by DFIN Pump engineers
Technical Performance Data
|
model |
Flow （m3/h） |
Head （m） |
Suction Lift （m） |
Great permission Over granular Diameter （mm） |
Operating temperature℃ |
Speed （r/min） |
Motor Power （KW） |
|
|
Cast Iron |
Stainless Steel |
|||||||
|
DBY-10 |
0.5 |
30 |
7 |
1 |
90 |
150 |
1450 |
0.55 |
|
DBY-15 |
0.75 |
30 |
7 |
1 |
90 |
150 |
1450 |
0.55 |
|
DBY-25 |
3.5 |
30 |
7 |
2.5 |
90 |
150 |
1450 |
1.5 |
|
DBY-40 |
4.5 |
30 |
7 |
2.5 |
90 |
150 |
1450 |
1.5 |
|
DBY-50 |
6.5 |
30 |
7 |
3 |
90 |
150 |
1450 |
2.2 |
|
DBY-65 |
8 |
30 |
7 |
4.5 |
90 |
150 |
1450 |
2.2 |
|
DBY-80 |
16 |
30 |
7 |
8 |
90 |
150 |
1450 |
5.5 |
|
DBY-100 |
20 |
30 |
7 |
8 |
90 |
150 |
1450 |
5.5 |
Selection Information Required
Please provide medium, concentration, flow, total head or pressure, temperature, viscosity or solids, voltage, frequency and installation method. DFIN Pump will confirm the suitable model and materials.
