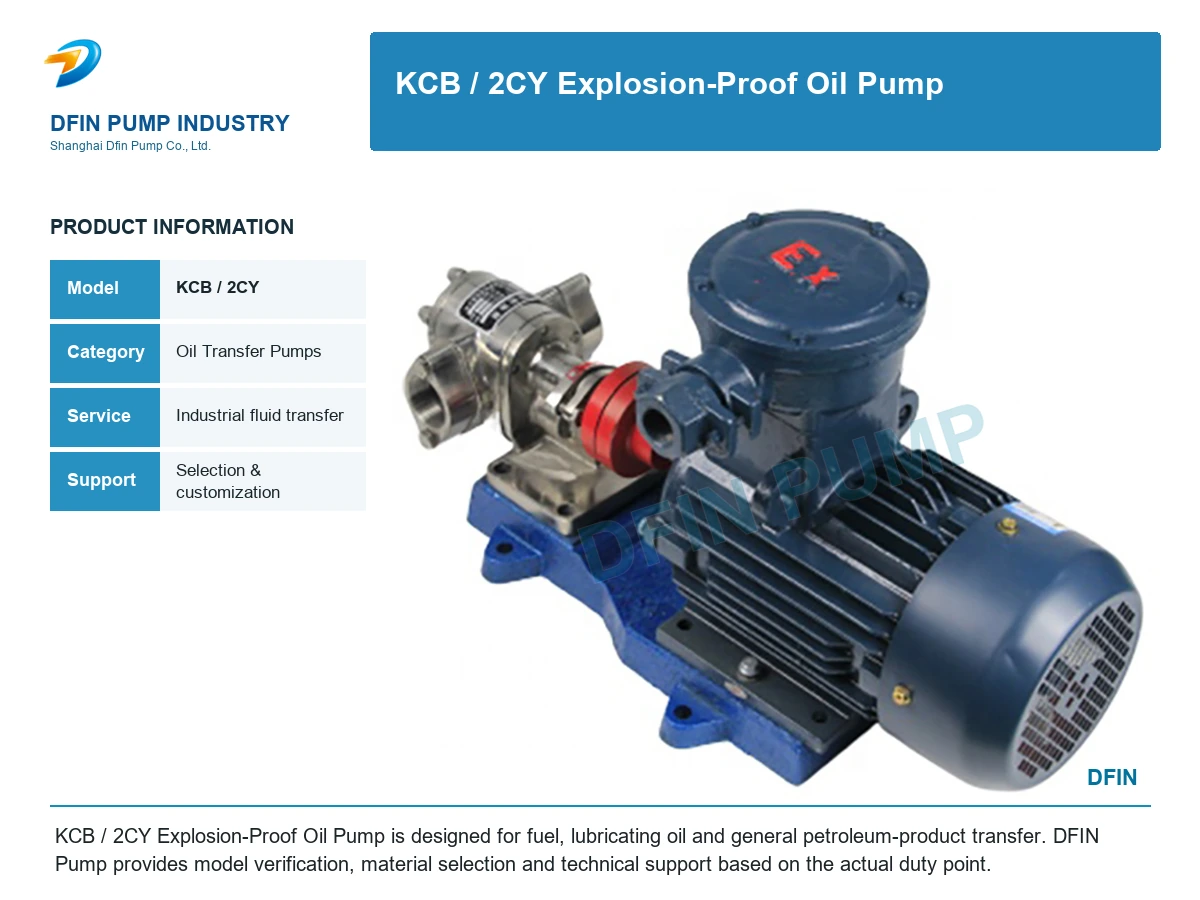

Reference image. Final construction follows the confirmed model and quotation.
Oil Transfer Pumps
KCB/2CY Explosion-Proof Oil Pump
Model: KCB/2CY
KCB/2CY Explosion-Proof Oil Pump is designed for fuel, lubricating oil and general petroleum-product transfer. DFIN Pump provides model verification, material selection and technical support based on the actual duty point.
TECHNICAL DATA
Specifications, performance and construction
Confirm the final operating point, materials, motor and connection standard before ordering.
Product Overview
KCB/2CY Explosion-Proof Oil Pump is an industrial oil transfer pump selected for fuel, lubricating oil and general petroleum-product transfer. The final configuration should be verified against the actual liquid, duty point, temperature, installation and power supply.
Typical Applications
Fuel, lubricating oil and general petroleum-product transfer.
Design Features
- Steady delivery
- Compact construction
- Multiple drive and seal options
- Model and material selection supported by DFIN Pump engineers
Technical Performance Data
| model Model |
Flow m3/h |
pressure MPa |
Vacuity m.H2O |
Port Size mm |
Enter Outlet Distance K |
With Motor |
Power KW |
|
KCB18.3 2CY1.1/14.5 |
1.1 | 1.45MPa | 5 | G3/4" | 200 | Y90L-4 | 1.5KW |
|
KCB33.3 2CY2/14.5 |
2 | 1.45MPa | 5 | G3/4" | 200 | Y100L1-4 | 2.2KW |
|
KCB55 2CY3.3/3.3 |
3.3 | 0.33MPa | 5 | G1" | 200 | Y90L-4 | 1.5KW |
|
KCB83.3 2CY5/3.3 |
5 | 0.33MPa | 5 | G11/2" | 200 | Y100L2-4 | 2.2KW |
|
KCB133 2CY8/3.3 |
8 | 0.33MPa | 5 | G2" | 260 | Y132S-6 | 3KW |
| 2CY8/6 | 8 | 0.6MPa | 5 | G2" | 260 | Y132M1-6 | 4KW |
| 2CY8/10 | 8 | 1.0MPa | 5 | G2" | 260 | Y132M2-6 | 5.5KW |
| 2CY12/1.3 | 12 | 0.13MPa | 5 | G2" | 260 | Y112M-4 | 4KW |
|
KCB200 2CY12/3.3 |
12 | 0.33MPa | 5 | G2" | 260 | Y132S-4 | 5.5KW |
| 2CY12/6 | 12 | 0.6MPa | 5 | G2" | 260 | Y132S-4 | 5.5KW |
| 2CY12/10 | 12 | 1.0MPa | 5 | G2" | 260 | Y132M-4 | 7.5KW |
|
KCB300 2CY18/3.6 |
18 | 0.36MPa | 5 | 70 | 234 | Y132M2-6 | 5.5KW |
| 2CY18/6 | 18 | 0.6MPa | 5 | 70 | 234 | Y160M-6 | 7.5KW |
|
KCB483 2CY29/3.6 |
29 | 0.36MPa | 5 | 70 | 234 | Y132M-4 | 7.5KW |
| 2CY29/6 | 29 | 0.6MPa | 5 | 70 | 234 | Y160M-4 | 11KW |
|
KCB633 2CY38/2.8 |
38 | 0.28MPa | 5 | 100 | 280 | Y160L-6 | 11KW |
| 2CY38/6 | 38 | 0.6MPa | 5 | 100 | 280 | Y200L2-6 | 22KW |
|
KCB960 2CY60/3 |
60 | 0.3MPa | 5 | 100 | 280 | Y180L-4 | 22KW |
| 2CY100/3 | 100 | 0.3MPa | 5 | 150 | 400 | Y250M-8 | 30KW |
| 2CY100/6 | 100 | 0.6MPa | 5 | 150 | 400 | Y315S-8 | 55KW |
| 2CY120/3 | 120 | 0.3MPa | 5 | 150 | 400 | Y250M-8 | 30KW |
| 2CY120/6 | 120 | 0.6MPa | 5 | 150 | 400 | Y315S-8 | 55KW |
| 2CY150/3 | 150 | 0.3MPa | 5 | 150 | 400 | Y280S-8 | 37KW |
| 2CY150/6 | 150 | 0.6MPa | 5 | 150 | 400 | Y315M1-8 | 75KW |
| model |
Flow m3/h |
pressure MPa |
Vacuity m.H2O |
in and out Port Size mm |
Match Motor Model |
Power KW |
| 2CY1.08/10 | 1.08 tons | 1MPa | 5 meters. | G3/4" | Y802-4 | 0.75KW |
| 2CY1.08/25 | 1.08 tons | 2.5MPa | 5 meters. | G3/4" | Y90L-4 | 1.5KW |
| 2CY2.1/10 | 2.1 tonnes | 1MPa | 5 meters. | G1" | Y90L-4 | 1.5KW |
| 2CY2.1/25 | 2.1 tonnes | 2.5MPa | 5 meters. | G1" | Y100L2-4 | 3KW |
| 2CY3/10 | 3 tons | 1MPa | 5 meters. | G1" | Y100L1-4 | 2.2KW |
| 2CY3/25 | 3 tons | 2.5MPa | 5 meters. | G1" | Y112M-4 | 4KW |
| 2CY4.2/10 | 4.2 tons | 1MPa | 5 meters. | G11/4" | Y100L2-4 | 3KW |
| 2CY4.2/25 | 4.2 tons | 2.5MPa | 5 meters. | G11/4" | Y132S-4 | 5.5KW |
| 2CY7.5/10 | 7.5 tons | 1MPa | 5 meters. | G11/2" | Y112M-4 | 4KW |
| 2CY7.5/25 | 7.5 tons | 2.5MPa | 5 meters. | G11/2" | T132M-4 | 7.5KW |
| 2CY12/6 | 12 tons | 0.6MPa | 5 meters. | G2" | Y132S-4 | 5.5KW |
| 2CY12/10 | 12 tons | 1MPa | 5 meters. | G2" | Y132M-4 | 7.5KW |
| 2CY18/3.6 | 18 tons | 0.36MPa | 5 meters. | 75 | Y132M2-6 | 5.5KW |
| 2CY29/3.6 | 29 tons | 0.36MPa | 5 meters. | 75 | Y132M-4 | 7.5KW |
Selection Information Required
Please provide medium, concentration, flow, total head or pressure, temperature, viscosity or solids, voltage, frequency and installation method. DFIN Pump will confirm the suitable model and materials.
