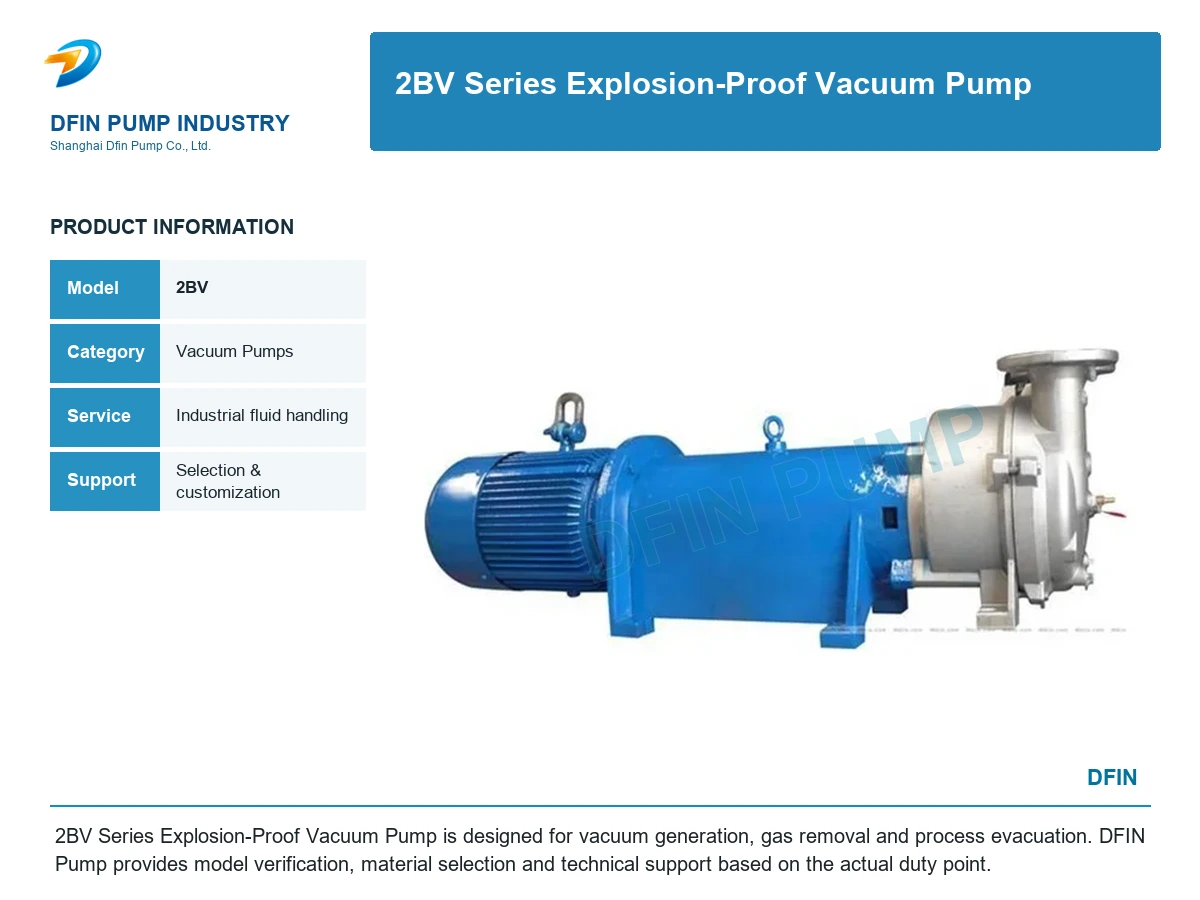

Reference image. Final construction follows the confirmed model and quotation.
Vacuum Pumps
2BV Series Explosion-Proof Vacuum Pump
Model: 2BV
2BV Series Explosion-Proof Vacuum Pump is designed for vacuum generation, gas removal and process evacuation. DFIN Pump provides model verification, material selection and technical support based on the actual duty point.
TECHNICAL DATA
Specifications, performance and construction
Confirm the final operating point, materials, motor and connection standard before ordering.
Product Overview
2BV Series Explosion-Proof Vacuum Pump is an industrial vacuum pump selected for vacuum generation, gas removal and process evacuation. The final configuration should be verified against the actual liquid, duty point, temperature, installation and power supply.
Typical Applications
Vacuum generation, gas removal and process evacuation.
Design Features
- Stable vacuum performance
- Industrial-duty construction
- Application-specific material options
- Model and material selection supported by DFIN Pump engineers
Technical Performance Data
| Vacuum Filter | (Chemical filtration plant, chemical treatment plant, iron ore plant, mining industry, phosphorous fertilizer plant, paper mill, poultry processing plant, coal selection plant) | Vapour recovery |
| Water from pumps | ||
| Condenser water tank recharge | ||
| Vacuum distillation | (milk, food, chemical, pulp) | Dry |
| Vacuum disinfection | Hospital, infirmary, laboratory | Timber treatment/drying |
| Squeeze out of shape. | (Plastic Industry) | Medical/laboratory vacuum |
| Form | (Pristic, polyethylene, rubber, tyre etc. manufacturing) | Solvent recovery |
| Infiltration | (Food processing, wood processing, textile factories, plywood plants, construction of utility poles, etc.) | Soil purification |
| Vacuum packaging | ||
| Liquid out of air. | (food processing, water softening, bottling plants) | Extract |
| Compressed air regeneration | Pulp, steel, cars, glass, chemicals. | tannery |
| Food processing | Food processing plant, milk factory | Canned |
| Model | Air mass (m3/min) | Maximum vacuum (MPa) |
Motor Power (kw) |
Pumped (r.p.m) | Work fluid Flow (L/min) | Noise (A) |
Weight (kg) |
| 2BV2060 | 0.45 | 0.097 | 0.81 | 2880 | 2 | 62 | 37 |
| 2BV2061 | 0.86 | 0.097 | 1.45 | 2880 | 2 | 65 | 41 |
| 2BV2070 | 1.33 | 0.097 | 2.35 | 2850 | 2.5 | 66 | 66 |
| 2BV2071 | 1.83 | 0.097 | 3.85 | 2860 | 4.2 | 72 | 85 |
| 2BV5110 | 2.75 | 0.097 | 4 | 1450 | 6.7 | 63 | 120 |
| 2BV5111 | 3.83 | 0.097 | 5.5 | 1450 | 8.3 | 68 | 150 |
| 2BV5121 | 4.66 | 0.097 | 7.5 | 1450 | 10 | 69 | 210 |
| 2BV5131 | 6.66 | 0.097 | 11 | 1430 | 15 | 73 | 280 |
| 2BV5161 | 8.33 | 0.097 | 15 | 970 | 20 | 74 | 390 |
Selection Information Required
Please provide medium, concentration, flow, total head or pressure, temperature, viscosity or solids, voltage, frequency and installation method. DFIN Pump will confirm the suitable model and materials.
Catalog reference: authorized YZJ product data · Model 2BV
SELECTION SUPPORT
Application-based pump selection
Send the liquid, flow, head or pressure, temperature, solids, installation, power supply and destination for a verified recommendation.
