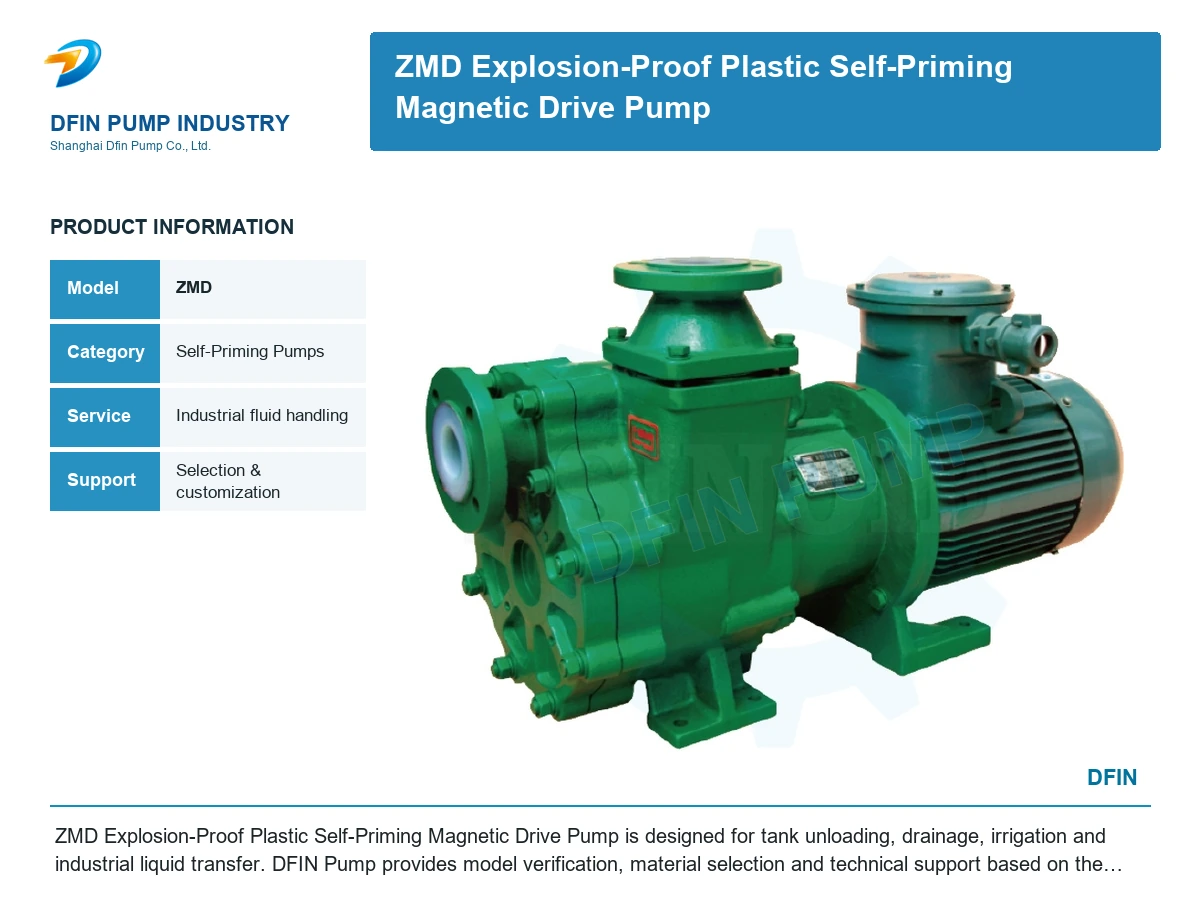

Reference image. Final construction follows the confirmed model and quotation.
Magnetic Pumps
ZMD Explosion-Proof Plastic Self-Priming Magnetic Drive Pump
Model: ZMD
ZMD Explosion-Proof Plastic Self-Priming Magnetic Drive Pump is designed for tank unloading, drainage, irrigation and industrial liquid transfer. DFIN Pump provides model verification, material selection and technical support based on the actual duty point.
TECHNICAL DATA
Specifications, performance and construction
Confirm the final operating point, materials, motor and connection standard before ordering.
Product Overview
ZMD Explosion-Proof Plastic Self-Priming Magnetic Drive Pump is an industrial self-priming pump selected for tank unloading, drainage, irrigation and industrial liquid transfer. The final configuration should be verified against the actual liquid, duty point, temperature, installation and power supply.
Typical Applications
Tank unloading, drainage, irrigation and industrial liquid transfer.
Design Features
- Self-priming operation
- Simple pipework arrangement
- Easy inspection and maintenance
- Model and material selection supported by DFIN Pump engineers
Technical Performance Data
|
model |
flow |
Yang Cheng |
Motor Power |
NPSHr（m） |
Port Size |
efficiency （%） |
Weight |
|
|
Inlet（mm） |
Outlet（mm） |
|||||||
|
40ZMD-20F |
6 |
20 |
2.2 |
3.0 |
40 |
25 |
33 |
110 |
|
40ZMD-25F |
6 |
25 |
4 |
3.0 |
30 |
110 |
||
|
40ZMD-32F |
6 |
32 |
4 |
3.0 |
29 |
110 |
||
|
50ZMD-20F |
15 |
20 |
2.2 |
3.0 |
50 |
32 |
35 |
188 |
|
50ZMD-25F |
15 |
25 |
4 |
3.0 |
41 |
188 |
||
|
50ZMD-32F |
15 |
32 |
5.5 |
3.0 |
38 |
188 |
||
|
50ZMD-45F |
15 |
48 |
7.5 |
3.5 |
48 |
200 |
||
|
65ZMD-25F |
30 |
25 |
7.5 |
3.5 |
65 |
50 |
51 |
200 |
|
65ZMD-32F |
30 |
32 |
7.5 |
3.5 |
52 |
200 |
||
|
65ZMD-45F |
30 |
45 |
11 |
3.5 |
56 |
280 |
||
|
80ZMD-25F |
60 |
25 |
11 |
3.5 |
80 |
65 |
58 |
280 |
|
80ZMD-32F |
60 |
32 |
11 |
3.5 |
55 |
280 |
||
|
80ZMD-45F |
50 |
45 |
18.5 |
4.5 |
52 |
240 |
||
|
Note: If the specification Model exceeds this range, our factory can adjust it according to user requirements. |
||||||||
Selection Information Required
Please provide medium, concentration, flow, total head or pressure, temperature, viscosity or solids, voltage, frequency and installation method. DFIN Pump will confirm the suitable model and materials.
Catalog reference: authorized YZJ product data · Model ZMD
