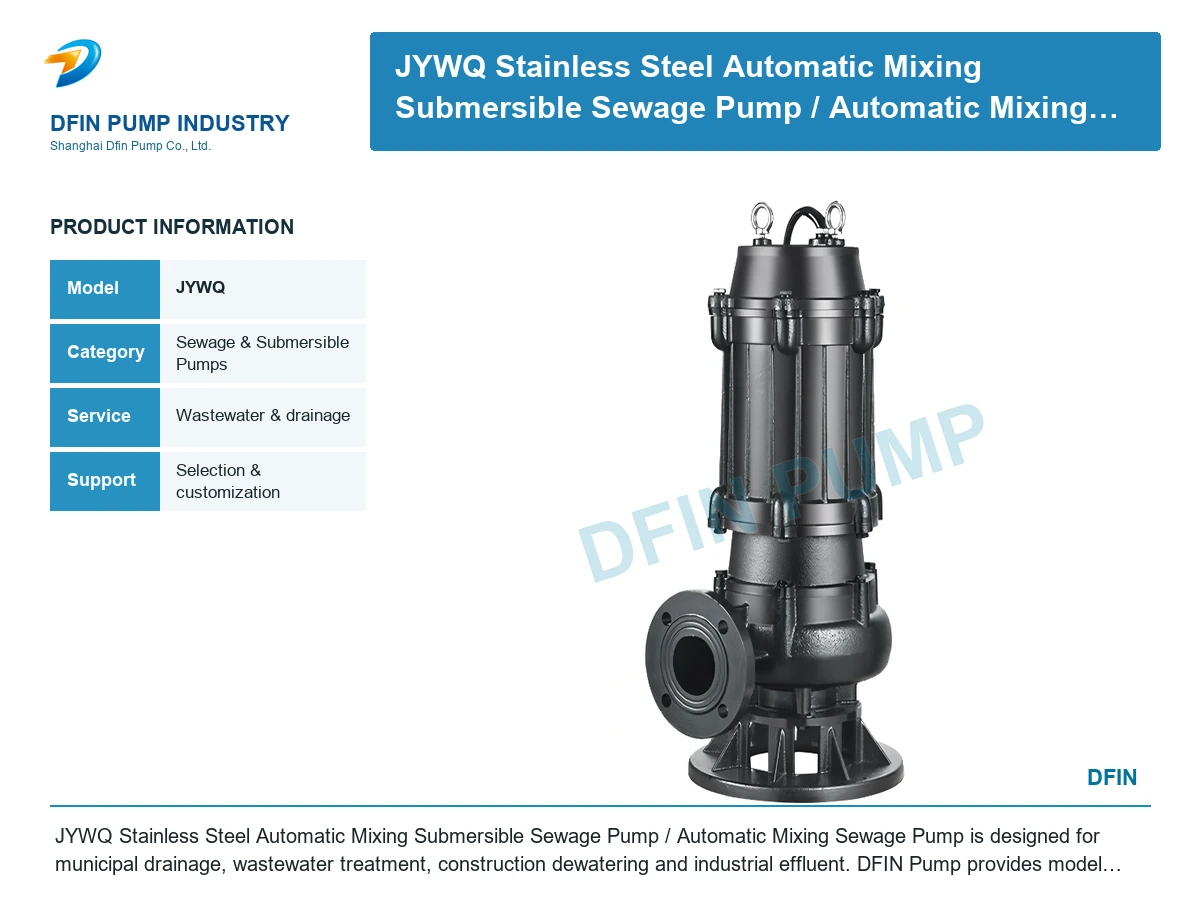

JYWQ Stainless Steel Automatic Mixing Submersible Sewage Pump/ Automatic Mixing Sewage Pump

Reference image. Final construction follows the confirmed model and quotation.

Stainless Steel Submersible Pumps

JYWQ Stainless Steel Automatic Mixing Submersible Sewage Pump/ Automatic Mixing Sewage Pump

Model: JYWQ

JYWQ Stainless Steel Automatic Mixing Submersible Sewage Pump/ Automatic Mixing Sewage Pump is designed for municipal drainage, wastewater treatment, construction dewatering and industrial effluent. DFIN Pump provides model verification, material selection and technical support based on the actual duty point.

TECHNICAL DATA

Specifications, performance and construction

Confirm the final operating point, materials, motor and connection standard before ordering.

Product Overview

JYWQ Stainless Steel Automatic Mixing Submersible Sewage Pump/ Automatic Mixing Sewage Pump is an industrial sewage & submersible pump selected for municipal drainage, wastewater treatment, construction dewatering and industrial effluent. The final configuration should be verified against the actual liquid, duty point, temperature, installation and power supply.

Typical Applications

Municipal drainage, wastewater treatment, construction dewatering and industrial effluent.

Design Features

  • Solids-handling hydraulic passage
  • Submersible or dry-installed configurations
  • Automatic control options
  • Model and material selection supported by DFIN Pump engineers

Extracted Operating Data

  • ：1.1-90KW ：40-300MM ：1200-3000MM ：＜60℃ 1-1.3KG/DM3 PH ：4-9
  • ：7-900m3/h ：6-40M ：1.1-90KW ：40-300MM ：1200-3000MM ：＜60℃

Values are reference data from the authorized source catalog. Confirm the selected model before ordering.

Technical Performance Data

No. Model Out
Port Size
(mm) 		Rated
Flow
(m3/h) 		Rated
Head
(mm) 		Smuggle
Diameter
(mm) 		Speed

(r/min) 		Efficiency

(%) 		Automatic

Concort
1 JYWQ50-12-15-1200-1.5 50 12 15 1200 2900 48 CAK-50
2 JYWQ50-20-7-1200-1.1 50 20 7 1200 2900 62 CAK-50
3 JYWQ50-10-10-1200-1.1 50 10 10 1200 2900 56 CAK-50
4 JYWQ50-15-15-1200-2.2 50 15 15 1200 2900 51 CAK-50
5 JYWQ50-25-10-1200-2.2 50 25 10 1200 2900 65 CAK-50
6 JYWQ50-15-20-1200-2.2 50 15 20 1200 2900 56 CAK-50
7 JYWQ50-20-15-1200-2.2 50 20 15 1200 2900 56 CAK-50
8 JYWQ50-42-9-1200-3 50 42 9 1200 2900 56 CAK-50
9 JYWQ50-17-25-1200-3 50 17 25 1200 2900 56 CAK-50
10 JYWQ50-25-22-1200-4 50 25 22 1200 2900 62 CAK-50
11 JYWQ50-40-15-1400-4 50 40 15 1400 2900 70 CAK-50
12 JYWQ50-25-32-1600-5.5 50 25 32 1600 2900 52 CAK-50
13 JYWQ50-40-30-1600-7.5 50 40 30 1600 2900 68 CAK-50
14 JYWQ65-25-15-1400-3 65 25 150 1400 2900 65 CAK-65
15 JYWQ65-37-13-1400-3 65 37 13 1400 2900 62 CAK-65
16 JYWQ65-25-28-1400-4 65 25 28 1400 2900 60 CAK-65
17 JYWQ80-40-7-1600-2.2 80 40 7 1600 2900 54 CAK-80
18 JYWQ80-29-8-1600-2.2 80 29 8 1600 2900 54 CAK-80
19 JYWQ80-43-13-1600-4 80 43 13 1600 2900 63 CAK-80
20 JYWQ80-50-10-1600-3 80 50 10 1600 1450 76 CAK-80
21 JYWQ80-40-15-1600-4 80 40 15 1600 2900 70 CAK-80
22 JYWQ80-60-13-1600-4 80 60 13 1600 2900 70 CAK-80
23 JYWQ80-35-25-1600-5.5 80 35 25 1600 2900 64 CAK-80
24 JYWQ80-50-25-1600-7.5 80 50 25 1600 2900 70 CAK-80
25 JYWQ80-50-30-1600-7.5 80 50 30 1600 2900 70 CAK-80
26 JYWQ100-80-9-2000-4 100 80 9 2000 1450 62 CAK-100
27 JYWQ100-110-10-2000-5.5 100 110 10 2000 1450 71 CAK-100
28 JYWQ100-70-15-2000-5.5 100 70 15 2000 1450 71 CAK-100
29 JYWQ100-100-15-2000-7.5 100 100 15 2000 1450 73 CAK-100
30 JYWQ100-80-20-2000-7.5 100 70 20 2000 2900 71 CAK-100
31 JYWQ100-50-35-2000-11 100 100 35 2000 2900 68 CAK-100
32 JYWQ100-70-22-2000-7.5 100 80 22 2000 2900 70 CAK-100
33 JYWQ100-100-22-2000-15 100 150 22 2000 1450 61 CAK-100
34 JYWQ100-80-30-2000-15 100 210 30 2000 1450 67 CAK-100
35 JYWQ150-150-10-2000-7.5 150 250 10 2000 1450 75 CAK-150
36 JYWQ150-210-7-2500-7.5 150 150 7 2500 1450 78 CAK-150
37 JYWQ150-250-6-2500-7.5 150 200 6 2500 1450 79 CAK-150
38 JYWQ150-150-15-2500-11 150 65 15 2500 1450 79 CAK-150
39 JYWQ150-200-10-2500-15 150 180 10 2500 1450 73 CAK-150
40 JYWQ150-65-40-3200-18.5 150 150 40 3200 1450 58 CAK-150
41 JYWQ150-180-22-2600-18.5 150 110 22 2600 1450 75 CAK-150
42 JYWQ150-150-26-2600-18.5 150 300 26 2600 1450 72 CAK-150
43 JYWQ150-110-30-2600-18.5 150 130 30 2600 1450 72 CAK-150
44 JYWQ150-300-15-2600-22 150 100 15 2600 1450 76 CAK-150
45 JYWQ150-130-30-2600-22 150 300 30 2600 1450 70 CAK-150
46 JYWQ150-100-40-3000-30 150 250 40 3000 1450 64 CAK-150
47 JYWQ200-300-7-3000-11 200 300 7 3000 1450 75 CAK-200
48 JYWQ200-250-11-3000-15 200 250 11 3000 1450 72 CAK-200
49 JYWQ200-300-10-3000-15 200 300 10 3000 1450 75 CAK-200
50 JYWQ200-250-15-3000-18.5 200 250 15 3000 1450 72 CAK-200
51 JYWQ200-400-10-3000-22 200 400 10 3000 1450 75 CAK-200
52 JYWQ200-200-20-3000-22 200 200 20 3000 1450 73 CAK-200
53 JYWQ200-250-22-3000-30 200 250 22 3000 1450 73 CAK-200
54 JYWQ250-600-7-3000-22 250 600 7 3000 1450 78 CAK-250
55 JYWQ250-600-9-3000-30 250 600 9 3000 1450 78 CAK-250
Fault phenomena Reason analysis Troubleshooting
Can not start and run Voltage is too low. Reconciliation of working on a regular time for voltage or Voltage
The wheel is stuck in a pile of stuff. Clear the groceries.
Spoiling of a leaf wheel due to damage to a screw or a flat key Replacement of damaged parts
Overload. Transtroverted parts are stuck in foreign objects or excess parts Reassembly, clear the aliens.
Axle bearing damage, axle deformation Change bearings, correct axes.
Insufficient Flow Inhalation or exit tube blocked Clear the mess and keep it clear.
MotorSpeed was below the rating Raised
The wheel broke. Replace impeller
Head is too high Lower Head
♪ Turning the other way ♪ Change to
The medium is too dense or not well supplied Scattering mediums, increasing supply
Noise and vibrating There's friction between the wheel and the pump. Check and adjust the assembly of the pumps
Axle bearings damaged or less oil Change bearings or refuelling
Spear loose. Change the screwdriver.
There's a groceries in the pump. Clear the groceries.
There's air in the inhaler. Control low water level
1, Motor Protector 7. Pumps
Cable outage tubes 8. Floating ball switches
3. Watersheds 9-Wayboards
Cables 10, the chain.
5. Water hoses Eleven, hook.
6. The hoses. 12, Float fixed.
1. Ventilation festival 9-Standing 17, Elevator
2. Pre-burials Ten, the coupling. 18, support frame.
3-Inflating 11. Suberfect pumps Cables for discharge
4-Lock valves 12, Float Switches (water level switches)
Five, stop valves. 13, Separator 20, Motor Protector
6-Brush 14 Float fixed shelf
7. Track 15, the chain.
Water outlet 16. Linkage

Selection Information Required

Please provide medium, concentration, flow, total head or pressure, temperature, viscosity or solids, voltage, frequency and installation method. DFIN Pump will confirm the suitable model and materials.

Catalog reference: authorized YZJ product data · Model JYWQ
