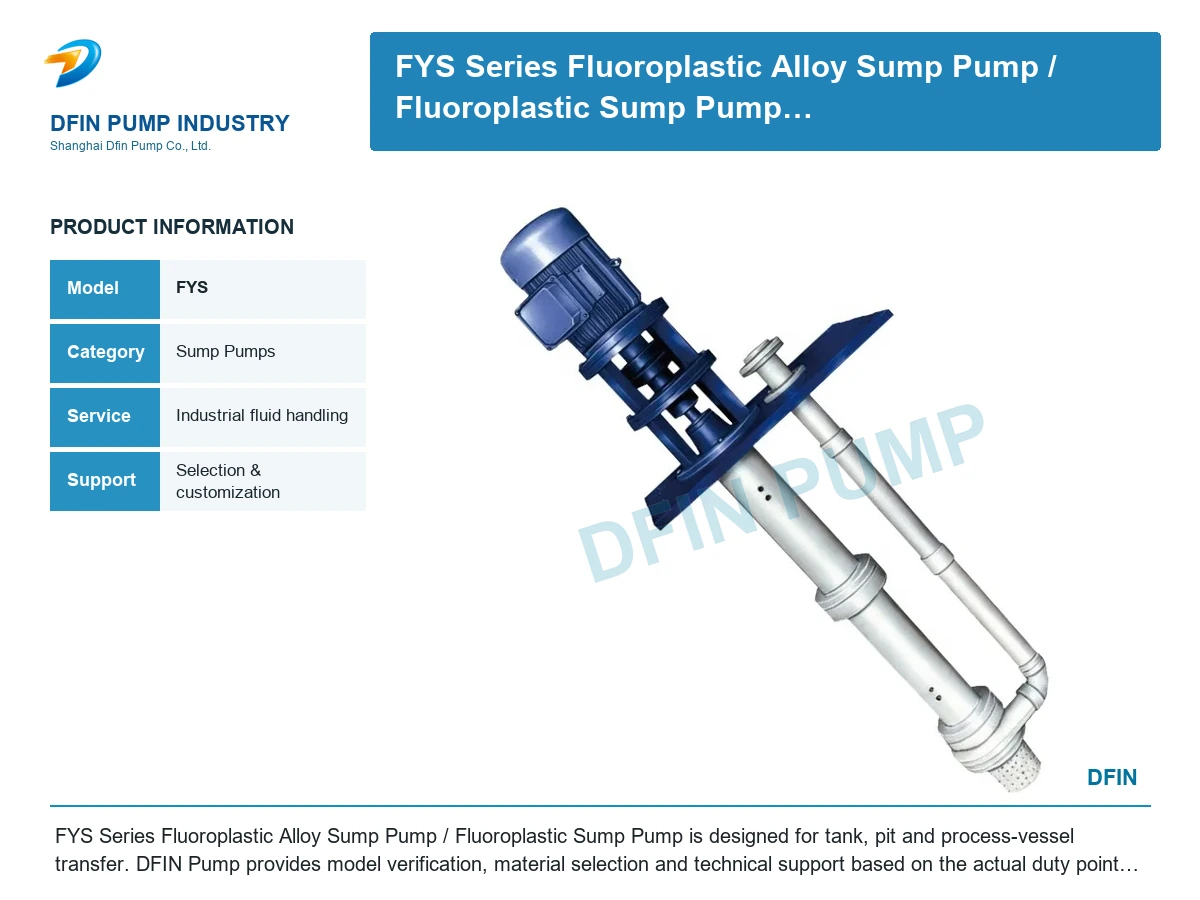

Reference image. Final construction follows the confirmed model and quotation.
Sewage Pumps
FYS Series Fluoroplastic Alloy Sump Pump/ Fluoroplastic Sump Pump
Model: FYS
FYS Series Fluoroplastic Alloy Sump Pump/ Fluoroplastic Sump Pump is designed for tank, pit and process-vessel transfer. DFIN Pump provides model verification, material selection and technical support based on the actual duty point.
TECHNICAL DATA
Specifications, performance and construction
Confirm the final operating point, materials, motor and connection standard before ordering.
Product Overview
FYS Series Fluoroplastic Alloy Sump Pump/ Fluoroplastic Sump Pump is an industrial sump pump selected for tank, pit and process-vessel transfer. The final configuration should be verified against the actual liquid, duty point, temperature, installation and power supply.
Typical Applications
Tank, pit and process-vessel transfer.
Design Features
- Vertical submerged wet end
- Reduced shaft-seal exposure
- Multiple immersion depths
- Model and material selection supported by DFIN Pump engineers
Extracted Operating Data
- ， 0℃-80℃， 、
Values are reference data from the authorized source catalog. Confirm the selected model before ordering.
Technical Performance Data
|
model |
Flow |
Head m |
With Motor kw |
Speed r/min |
Efficiency % |
|
25FYS-10 |
1.5 |
10 |
2.2 |
2900 |
0.14 |
|
25FYS-18 |
3.6 |
18 |
2.2 |
2900 |
0.65 |
|
40FYS-15 |
5 |
15 |
2.2 |
2900 |
0.43 |
|
40FYS-20 |
10 |
20 |
3 |
2900 |
1.18 |
|
40FYS-30 |
10 |
30 |
4 |
2900 |
2.04 |
|
40FYS-40 |
10 |
40 |
4 |
2900 |
3.1 |
|
50FYS-20 |
15 |
20 |
4 |
2900 |
1.6 |
|
50FYS-25 |
15 |
25 |
4 |
2900 |
2.12 |
|
50FYS-30 |
15 |
30 |
5.5 |
2900 |
3.06 |
|
50FYS-50 |
12.5 |
50 |
7.5 |
2900 |
4.25 |
|
65FYS-25 |
25 |
25 |
5.5 |
2900 |
3.1 |
|
65FYS-32 |
29 |
32 |
5.5 |
2900 |
4.5 |
|
65FYS-50 |
29 |
50 |
11 |
2900 |
7.45 |
|
80FYS-20 |
50 |
20 |
11 |
2900 |
3.8 |
|
80FYS-30 |
50 |
30 |
15 |
2900 |
6.38 |
|
80FYS-50 |
50 |
50 |
18.5 |
2900 |
11.34 |
|
100FYS-32 |
100 |
32 |
22 |
2900 |
11.5 |
|
100FYS-40 |
100 |
40 |
22 |
2900 |
19.7 |
Selection Information Required
Please provide medium, concentration, flow, total head or pressure, temperature, viscosity or solids, voltage, frequency and installation method. DFIN Pump will confirm the suitable model and materials.
Catalog reference: authorized YZJ product data · Model FYS
