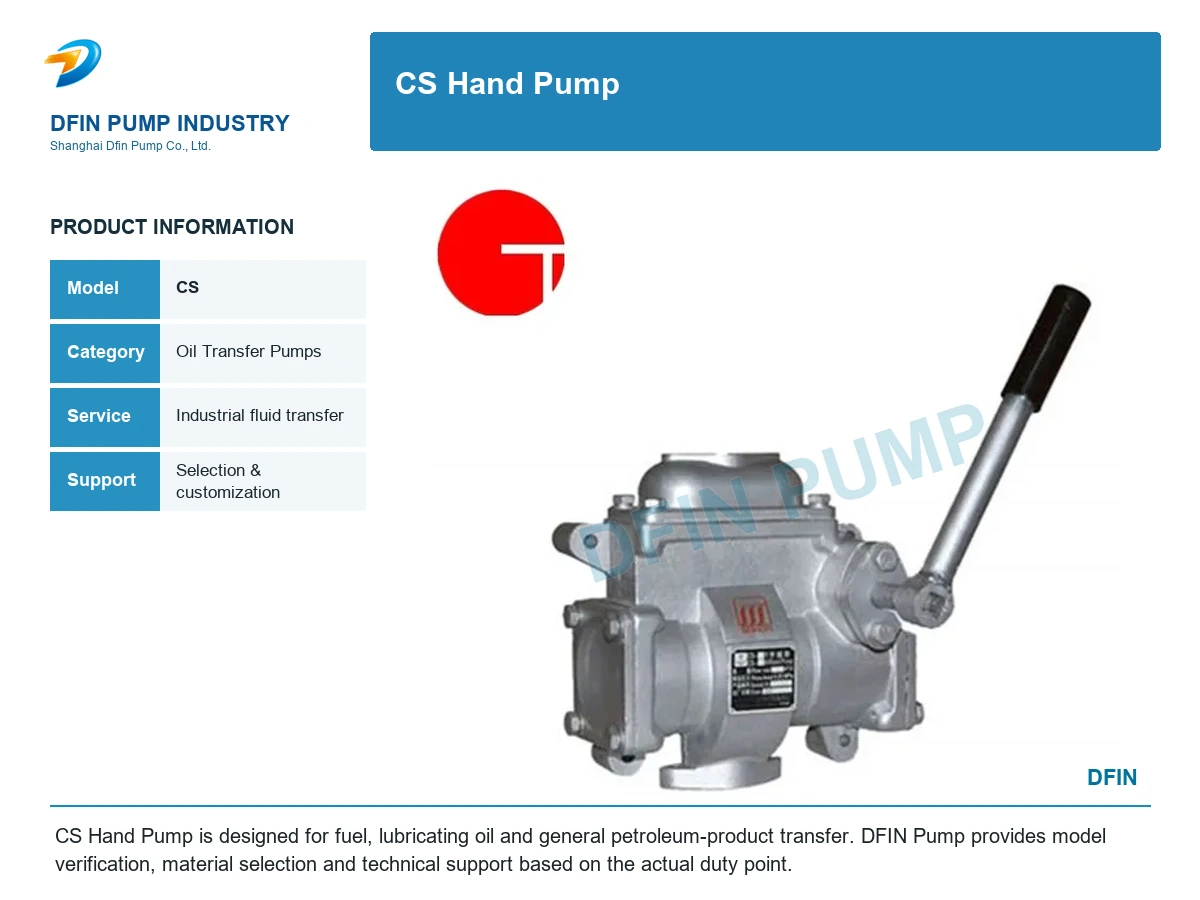

CS Hand Pump
Model: CS
CS Hand Pump is designed for fuel, lubricating oil and general petroleum-product transfer. DFIN Pump provides model verification, material selection and technical support based on the actual duty point.
TECHNICAL DATA
Specifications, performance and construction
Confirm the final operating point, materials, motor and connection standard before ordering.
Product Overview
CS Hand Pump is an industrial oil transfer pump selected for fuel, lubricating oil and general petroleum-product transfer. The final configuration should be verified against the actual liquid, duty point, temperature, installation and power supply.
Typical Applications
Fuel, lubricating oil and general petroleum-product transfer.
Design Features
- Steady delivery
- Compact construction
- Multiple drive and seal options
- Model and material selection supported by DFIN Pump engineers
Technical Performance Data
| model | CS-20 pumps | CS-25 Pumps | CS-32 pumps |
| Flowm3/min | 0.02 m3/min | 0.032m3/min | 0.04 m3/min |
| Out of pressure, Mpa. | 0.25mPa | 0.25mPa | 0.25mPa |
| Inhalation vacuum heightm | 5m (water column) | 5m (water column) | 5m (water column) |
| Pistol processmm | 70mm | 70mm | 90mm |
| Number of repeats/mins | 50 times/min | 50 times/min | 50 times/min |
| Pump tank Diametermm | φ65 | φ75 | φ88mm |
| Handheld kg | ≈18kg | ≈230N | ≈28kg |
| Port Sizem | φ20mm | φ25 | φ32mm |
| Weightkg | 6kg/set | 8.5kg/set | 12kg/set |
|
model |
CS-20 |
CS-25 |
CS-32 |
CS-38 |
|
A |
180 |
205 |
225 |
280 |
|
B |
152 |
180 |
200 |
245 |
|
C |
63 |
70 |
81 |
70 |
|
D |
213 |
220 |
249 |
260 |
|
E |
134 |
150 |
165 |
180 |
|
Other Name |
& nbsp; & nbsp; & nbsp; & nbsp; & nbsp; |
Mark & nbsp; & nbsp; & nbsp; accurate & nbsp; |
|
& nbsp; pump & nbsp; & nbsp; & nbsp; body |
ZL102 |
GB1173-74 |
|
Guy |
ZL102 |
GB1173-74 |
|
& nbsp; Live |
ZL102 |
GB1173-74 |
|
Cylinders |
HT20-40 |
GB 976-67 |
|
Valve |
2cr13 |
GB1220-75 |
|
& nbsp; Valve & nbsp; & nbsp; |
H62 |
YB 553-71 |
|
Axes |
2cr13 |
GB1220-75 |
|
Combination |
2cr13 |
GB1220-75 |
|
& nbsp; H-type tank kit |
H62 |
YB 553-71 |
Selection Information Required
Please provide medium, concentration, flow, total head or pressure, temperature, viscosity or solids, voltage, frequency and installation method. DFIN Pump will confirm the suitable model and materials.
