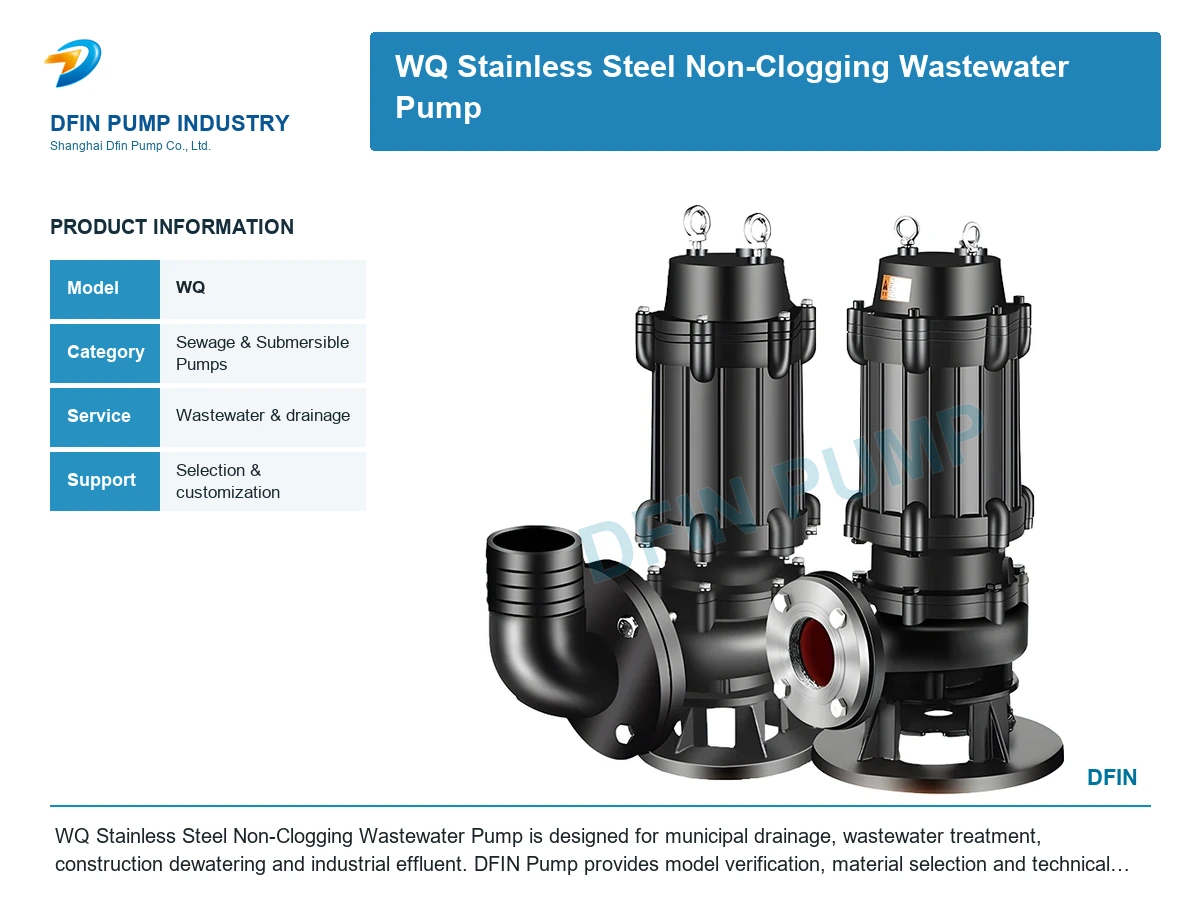

WQ Stainless Steel Non-Clogging Wastewater Pump

Name: WQ Stainless Steel Non-Clogging Wastewater Pump
Brand: DFIN PUMP
SKU: WQ

Model: WQ

WQ Stainless Steel Non-Clogging Wastewater Pump is designed for municipal drainage, wastewater treatment, construction dewatering and industrial effluent. DFIN Pump provides model verification, material selection and technical support based on the actual duty point.

TECHNICAL DATA

Specifications, performance and construction

Confirm the final operating point, materials, motor and connection standard before ordering.

Product Overview

WQ Stainless Steel Non-Clogging Wastewater Pump is an industrial sewage & submersible pump selected for municipal drainage, wastewater treatment, construction dewatering and industrial effluent. The final configuration should be verified against the actual liquid, duty point, temperature, installation and power supply.

Typical Applications

Municipal drainage, wastewater treatment, construction dewatering and industrial effluent.

Design Features

Solids-handling hydraulic passage
Submersible or dry-installed configurations
Automatic control options
Model and material selection supported by DFIN Pump engineers

Extracted Operating Data

1、 60℃， 1～1.3kg/dm3

Values are reference data from the authorized source catalog. Confirm the selected model before ordering.

Technical Performance Data

1	Signal Line	2	Motor connects.	3	Operator Box	4	Moto Guy.
5	Bearing	6	Motor Shell	7	Tsing!	8	Rotation (axis)
9	Oil room	10	The oil probe.	11	mechanical seal	12	Backboard
13	impeller	14	Pump body	15	Blending wheel	16	Underground


Serial number	model	Diameter (mm)	flow (m3/h)	Yang Cheng (m)	Rotation speed (r/min)	Power (kw)	efficiency (%)	Water pump electrical controller	Automatic coupler with WQ
1	25QW8-22-1.1	25	8	22	2825	1.1	38.1	QZD-1.1	/
2	32QW12-15-1.1	32	12	15	2825	1.1	40	QZD-1.1	/
3	40QW15-15-1.5	40	15	15	2840	1.5	45.1	QZD-1.5	40
4	40QW15-30-2.2	40	15	30	2840	2.2	18	QZD-2.2	40
5	50QW20-7-0.75	50	20	7	1390	0.75	54	QZD-0.75	40
6	50QW10-10-0.75	50	10	10	1390	0.75	56	QZD-0.75	50
7	50QW20-15-1.5	50	20	15	2840	1.5	55	QZD-1.5	50
8	50QW15-25-2.2	50	15	25	2840	2.2	56	QZD-2.2	50
9	50QW18-30-3	50	18	30	2880	3.0	58	QZD-3.0	50
10	50QW25-32-5.5	50	25	32	2900	5.5	53	QZD-5.5	50
11	50QW20-40-7.5	50	20	40	2900	7.5	55	QZD-7.5	50
12	65QW25-15-2.2	65	25	15	2840	2.2	52	QZD-2.2	50
13	65QW37-13-3	65	37	13	2880	3.0	55	QZD-3.0	65
14	65QW25-30-4	65	25	30	2890	4.0	58	QZD-4.0	65
15	65QW30-40-7.5	65	30	40	2900	7.5	56	QZD-7.5	65
16	65QW35-50-11	65	35	50	2930	11	60	QZD-11	65
17	65QW35-60-15	65	35	60	2930	15	63	QZD-15	65
18	80QW40-7-2.2	80	40	7	1420	2.2	52	QZD-2.2	65
19	80QW43-13-3	80	43	13	2880	3.0	50	QZD-3.0	80
20	80QW40-15-4	80	40	15	2890	4.0	57	QZD-4.0	80
21	80QW65-25-7.5	80	65	25	2900	7.5	56	QZD-7.5	80
22	100QW80-10-4	100	80	10	1440	4.0	62	QZD-4.0	80
23	100QW110-10-5.5	100	110	10	1440	5.5	66	QZD-5.5	100
24	100QW100-15-7.5	100	100	15	1440	7.5	67	QZD-7.5	100
25	100QW85-20-7.5	100	85	20	1400	7.5	68	QZD-7.5	100
26	100QW100-25-11	100	100	25	1460	11	65	JJ1-11	100
27	100QW100-30-15	100	100	30	1470	15	66	JJ1-26	100
28	100QW100-35-18.5	100	100	35	1460	18.5	65	JJ1-18.5	100
29	125QW130-15-11	125	130	15	1460	11	62	JJ1-11	100
30	125QW130-25-15	125	130	20	1440	15	63	JJ1-15	125
31	150QW145-6-7.5	150	145	6	1470	7.5	63	QZD7.5	125
32	150QW180-15-15	150	180	15	1470	15	65	JJ1-15	150
33	150QW180-20-18.5	150	180	20	1470	18.5	75	JJ1-18.5	150
34	150QW180-25-22	150	180	25	1470	22	76	JJ1-22	150
35	150QW130-30-22	150	130	30	1470	22	75	JJ1-22	150
36	150QW180-30-30	150	180	30	970	30	73	JJ1-30	150
37	150QW200-30-37	150	200	30	970	37	70	JJ1-37	150
38	200QW300-7-11	200	300	7	1470	11	73	JJ1-11	150
39	200QW250-11-15	200	250	11	1470	15	74	JJ1-15	200
40	200QW400-10-22	200	400	10	1470	22	76	JJ1-22	200
41	200QW400-13-30	200	400	13	1470	30	73	JJ1-30	200
42	200QW250-11-15	200	250	15	1470	18.5	72	JJ1-18.5	200
43	200QW300-15-22	200	300	15	1470	22	73	JJ1-22	200
44	200QW250-22-30	200	250	22	1470	30	71	JJ1-30	200
45	200QW350-25-37	200	350	25	1470	37	75	JJ1-37	200
46	200QW400-30-55	200	400	30	1480	55	70	JJ1-55	200
47	250QW600-9-30	250	600	9	980	30	74	JJ1-30	250
48	250QW600-12-37	250	600	12	1480	37	78	JJ1-37	250
49	250QW600-15-45	250	600	15	1480	45	75	JJ1-45	250
50	250QW600-20-55	250	600	20	1480	55	73	JJ1-55	250
51	250QW600-25-75	250	600	25	1480	75	73	JJ1-75	250
52	300QW800-12-45	300	800	12	1480	45	76	JJ1-45	300
53	300QW500-15-45	300	500	15	980	45	70	JJ1-45	300
54	300QW800-15-55	300	800	15	980	55	73	JJ1-55	300
55	300QW600-20-55	300	600	20	980	55	75	JJ1-55	300
56	300QW800-20-75	300	800	20	980	75	78	JJ1-75	300
57	300QW950-20-90	300	950	20	980	90	80	JJ1-90	300
58	300QW1000-25-110	300	1000	25	980	110	82	JJ1-110	300
59	300QW1100-10-55	300	1100	10	980	55	84.5	JJ1-55	300
60	350QW1500-15-90	350	1500	15	980	90	83.1	JJ1-90	350
61	350QW1200-18-90	350	1200	18	980	90	83.2	JJ1-90	350
62	350QW1100-28-132	350	1100	28	740	132	78.5	JJ1-132	350
63	350QW1000-36-160	350	1000	36	740	160	82.1	JJ1-160	350
64	400QW1500-10-75	400	1500	10	980	75	82.1	JJ1-75	400
65	400QW2000-15-132	400	2000	15	740	132	82.5	JJ1-132	400
66	400QW1700-22-160	400	1700	22	740	160	82.1	JJ1-160	400
67	400QW1500-26-160	400	1500	26	740	160	83.5	JJ1-160	400
68	400QW1700-30-200	400	1700	30	740	200	83.5	JJ1-200	400
69	400QW1800-32-250	400	1800	32	740	250	82.1	JJ1-200	400
70	400QW1760-7.5-55	400	1760	7.5	580	55	82.3	JJ1-55	400
71	500QW2500-10-110	500	2500	10	740	110	82	JJ1-110	500
72	500QW2600-15-160	500	2600	15	740	160	83	JJ1-160	500
73	500QW3000-15-220	500	3000	15	740	220	83	JJ1-220	500
74	500QW2400-22-220	500	2400	22	740	220	84	JJ1-220	500
75	500QW2600-24-250	500	2600	24	740	250	82	JJ1-250	500
76	500QW3000-24-280	500	3000	24	740	280	82	JJ1-280	500

Selection Information Required

Please provide medium, concentration, flow, total head or pressure, temperature, viscosity or solids, voltage, frequency and installation method. DFIN Pump will confirm the suitable model and materials.

Catalog reference: authorized YZJ product data · Model WQ
