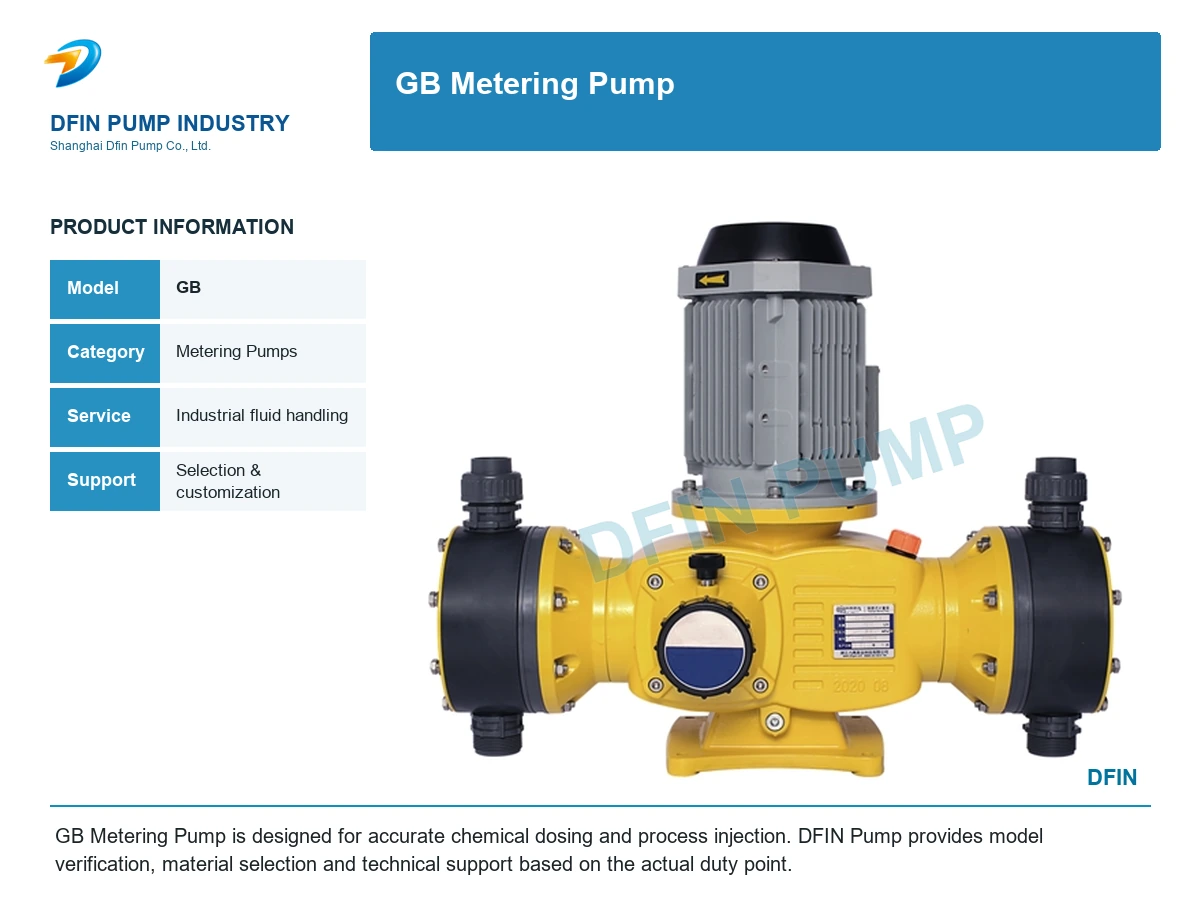

Reference image. Final construction follows the confirmed model and quotation.
Metering Pumps
GB Metering Pump
Model: GB
GB Metering Pump is designed for accurate chemical dosing and process injection. DFIN Pump provides model verification, material selection and technical support based on the actual duty point.
TECHNICAL DATA
Specifications, performance and construction
Confirm the final operating point, materials, motor and connection standard before ordering.
Product Overview
GB Metering Pump is an industrial metering pump selected for accurate chemical dosing and process injection. The final configuration should be verified against the actual liquid, duty point, temperature, installation and power supply.
Typical Applications
Accurate chemical dosing and process injection.
Design Features
- Controlled delivery
- Adjustable capacity
- Chemical-compatible materials
- Model and material selection supported by DFIN Pump engineers
Extracted Operating Data
- :0-1800 L/H : 0-0.6 MPA : 750W, 1.1KW, 1.5KW, 220
- :0-1800 L/H : 0-0.6 MPA : 750W, 1.1KW, 1.5KW, 220V / 380V / 420V / 110V, 5
Values are reference data from the authorized source catalog. Confirm the selected model before ordering.
Technical Performance Data
|
Model |
FlowL/h |
Pressure Mpa |
Scramble (min-1) |
Motor Power(kw) |
in and out |
Weight(kg) |
|
(mm) |
||||||
|
GB 380/0.6 |
380 |
0.6 |
48 |
0.75 |
DN25 |
40 |
|
GB 500/0.6 |
500 |
0.6 |
96 |
0.75 |
||
|
GB 650/0.6 |
650 |
0.6 |
96 |
1.1 |
||
|
GB 850/0.5 |
850 |
0.5 |
144 |
1.1 |
||
|
GB 1000/0.4 |
1000 |
0.4 |
144 |
1.1 |
||
|
GB 1400/0.3 |
1400 |
0.3 |
144 |
1.5 |
DN40 |
50 |
|
GB 1800/0.3 |
1800 |
0.3 |
144 |
1.5 |
50 |
Selection Information Required
Please provide medium, concentration, flow, total head or pressure, temperature, viscosity or solids, voltage, frequency and installation method. DFIN Pump will confirm the suitable model and materials.
