Metering Pumps

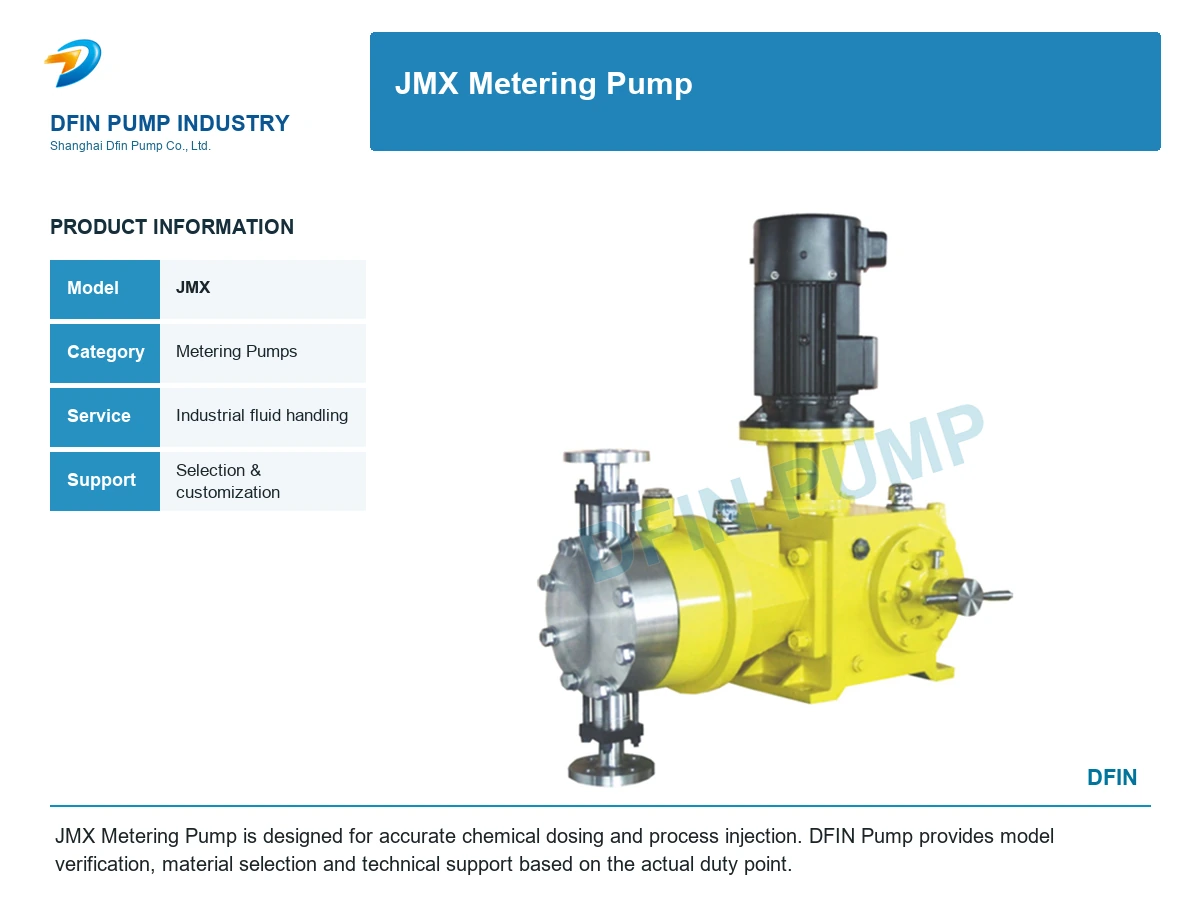

JMX Metering Pump
Model: JMX
JMX Metering Pump is designed for accurate chemical dosing and process injection. DFIN Pump provides model verification, material selection and technical support based on the actual duty point.
TECHNICAL DATA
Specifications, performance and construction
Confirm the final operating point, materials, motor and connection standard before ordering.
Product Overview
JMX Metering Pump is an industrial metering pump selected for accurate chemical dosing and process injection. The final configuration should be verified against the actual liquid, duty point, temperature, installation and power supply.
Typical Applications
Accurate chemical dosing and process injection.
Design Features
- Controlled delivery
- Adjustable capacity
- Chemical-compatible materials
- Model and material selection supported by DFIN Pump engineers
Extracted Operating Data
- : 0-560 L/H : 0-0.6 MPA : 370W / 550W,220V / 380V
Values are reference data from the authorized source catalog. Confirm the selected model before ordering.
Technical Performance Data
|
Model |
Flow(l/h) |
Pressure (MPA) |
Scramble (min-1) |
Power(kw) |
Port Size (DN) |
Weight(kg) |
|
JMX 80/0.6 |
80 |
0.6 |
48 |
0.37 |
DN15 |
18 |
|
JMX 120/0.5 |
120 |
0.5 |
72 |
0.37 |
DN15 |
18 |
|
JMX 160/0.5 |
160 |
0.5 |
96 |
0.37 |
DN15 |
18 |
|
JMX 240/0.4 |
240 |
0.4 |
144 |
0.55 |
DN15 |
18 |
|
JMX 360/0.4 |
360 |
0.4 |
96 |
0.55 |
DN25 |
25 |
|
JMX 450/0.4 |
450 |
0.4 |
144 |
0.55 |
DN25 |
25 |
|
JMX 560/0.3 |
560 |
0.3 |
144 |
0.55 |
DN25 |
25 |
Selection Information Required
Please provide medium, concentration, flow, total head or pressure, temperature, viscosity or solids, voltage, frequency and installation method. DFIN Pump will confirm the suitable model and materials.
Catalog reference: authorized YZJ product data · Model JMX
SELECTION SUPPORT
Application-based pump selection
Send the liquid, flow, head or pressure, temperature, solids, installation, power supply and destination for a verified recommendation.
