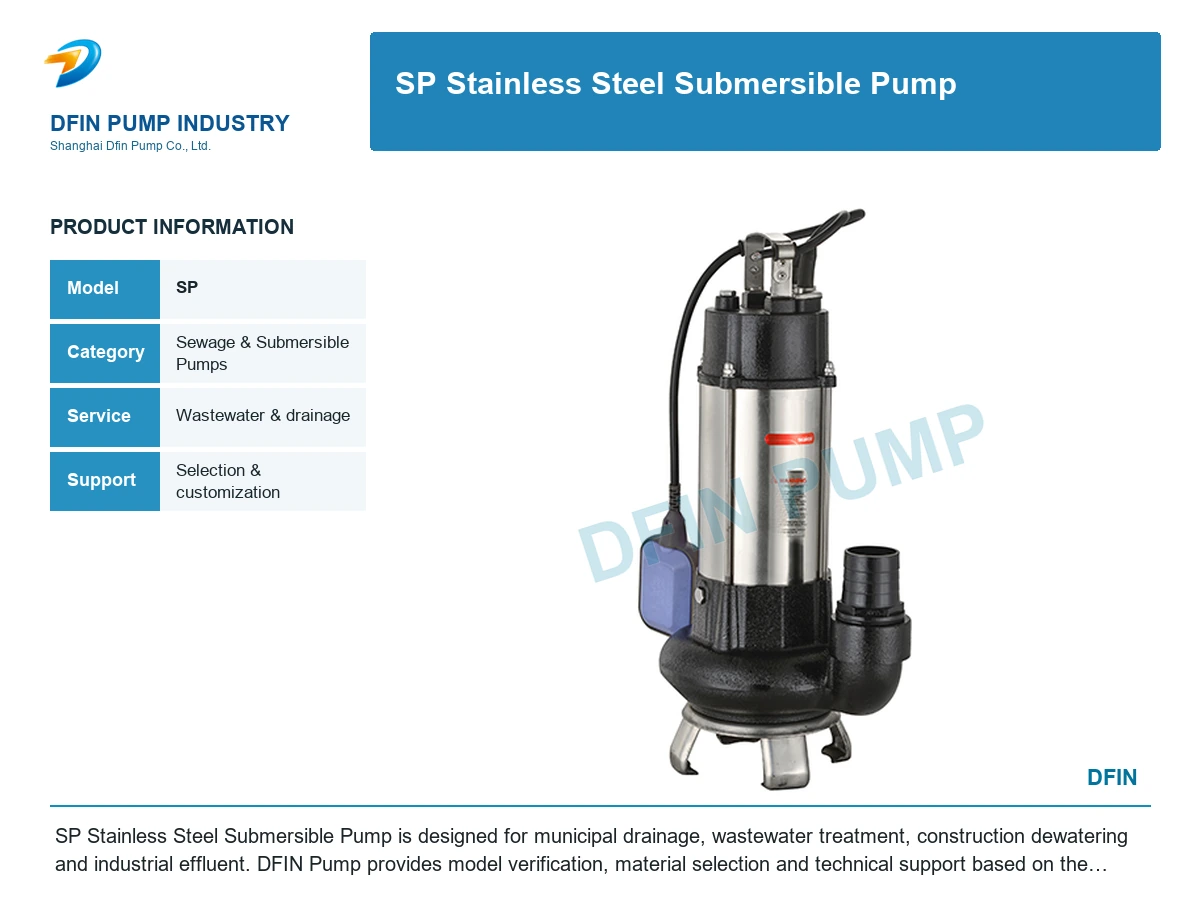

SP Stainless Steel Submersible Pump

Name: SP Stainless Steel Submersible Pump
Brand: DFIN PUMP
SKU: SP

Model: SP

SP Stainless Steel Submersible Pump is designed for municipal drainage, wastewater treatment, construction dewatering and industrial effluent. DFIN Pump provides model verification, material selection and technical support based on the actual duty point.

TECHNICAL DATA

Specifications, performance and construction

Confirm the final operating point, materials, motor and connection standard before ordering.

Product Overview

SP Stainless Steel Submersible Pump is an industrial sewage & submersible pump selected for municipal drainage, wastewater treatment, construction dewatering and industrial effluent. The final configuration should be verified against the actual liquid, duty point, temperature, installation and power supply.

Typical Applications

Municipal drainage, wastewater treatment, construction dewatering and industrial effluent.

Design Features

Solids-handling hydraulic passage
Submersible or dry-installed configurations
Automatic control options
Model and material selection supported by DFIN Pump engineers

Technical Performance Data

Number 50Hz	Motor Power		Three-phase current.	Single-phase current			Q	Flow								Out. Port Size	Application Well trail
			Three-phase current.	Single-phase current			m3/h	0	0.6	1.2	2	2.4	3	3.6	4.2
			380V	220V			l/min	0	10	20	33	40	50	60	70
	HP	Kw	A	A	μF	VC	H m	Head
4SP2-6	0.5	0.37	1.8	3.6	15	450		37	33	30	26	24	20	13	2	30mm 1"1/4G	100 mm
4SP2-9	0.5	0.37	1.8	3.6	15	450		56	50	45	40	36	30	19	4
4SP2-13	0.75	0.55	2	4.8	20	450		81	72	65	53	52	43	27	5
4SP2-18	1	0.75	2.5	6.3	30	450		112	99	90	80	72	59	38	7
4SP2-23	1.5	1.1	3.4	8.6	40	450		143	127	115	103	92	76	48	9
4SP2-28	2	1.5	4.4	10	50	450		174	154	140	125	112	92	59	11
4SP2-33	2	1.5	4.4	10	50	450		205	182	165	148	132	109	69	13
4SP2-40	3	2.2	6.2	14	60	450		248	220	198	179	160	132	84	16
4SP2-48	3	2.2	6.2	14	60	450		298	264	240	215	192	158	101	19
4SP2-55	4	3	8.3	-	-	-		336	303	275	247	220	182	116	22

Model 50Hz	Motor Power		Three-phase current.	Single-phase current			Q	Flow								Out. Port Size	Application Well trail
			Three-phase current.	Single-phase current			m3/h	0	1.2	2.4	3	3.6	4.2	4.8	6
			380V	220V			l/min	0	20	40	50	60	70	80	100
	HP	Kw	A	A	μF	VC	H m	Head
4SP3-5	0.5	0.37	1.8	3.6	15	450		31	27	25	22	19	17	11	-	30mm 1"1/4G	100 mm
4SP3-6	0.5	0.37	1.8	3.6	15	450		37	33	29	26	23	19	13	4
4SP3-9	0.75	0.55	2	4.8	20	450		56	50	43	40	35	28	19	7
4SP3-12	1	0.75	2.5	6.3	30	450		74	66	58	53	46	37	26	9
4SP3-15	1.5	1.1	3.4	8.6	40	450		93	83	72	66	57	47	32	11
4SP3-18	1.5	1.1	3.4	8.6	40	450		112	99	86	79	69	56	39	13
4SP3-22	2	1.5	4.4	10	50	450		136	121	106	97	84	68	47	16
4SP3-25	2	1.5	4.4	10	50	450		155	138	120	110	96	78	54	18
4SP3-32	3	2.2	6.2	14	60	450		198	176	154	141	123	99	68	23
4SP3-39	4	3	8.3	-	-	-		242	215	187	172	149	121	83	29
4SP3-44	4	3	8.3	-	-	-		272	242	211	194	169	136	94	32

Model 50Hz	Motor Power		Three-phase current.	Single-phase current			Q	Flow							Out. Port Size	Application Well trail
			Three-phase current.	Single-phase current			m3/h	0	2.4	3.6	5	5.4	6	6.6
			380V	220V			l/min	0	40	60	83	90	100	110
	HP	Kw	A	A	μF	VC	H m	Head
4SP5-4	0.5	0.37	1.8	3.6	15	450		25	21	20	16	15	12	8	40mm 1"1/2G	100 mm
4SP5-6	0.75	0.55	2	4.8	20	450		38	32	30	25	23	18	13
4SP5-8	1	0.75	2.5	6.3	30	450		50	43	40	33	30	24	17
4SP5-12	1.5	1.1	3.4	8.6	40	450		76	64	60	51	46	37	25
4SP5-17	2	1.5	4.4	10	50	450		107	90	84	72	65	52	36
4SP5-22	3	2.2	6.2	14	60	450		139	117	109	94	84	67	46
4SP5-25	3	2.2	6.2	14	60	450		158	133	124	107	95	76	53
4SP5-33	4	3	8.3	-	-	-		208	176	164	141	125	101	69
4SP5-38	5.5	4	10.3	-	-	-		239	202	188	162	144	116	80
4SP5-40	5.5	4	10.3	-	-	-		252	213	198	171	152	122	84
4SP5-44	5.5	4	10.3	-	-	-		277	234	218	188	167	134	92
4SP5-52	7.5	5.5	14	-	-	-		328	277	258	223	198	159	109

Model 50Hz	Motor Power		Three-phase current.	Single-phase current			Q	Flow							Out. Port Size	Application Well trail
			Three-phase current.	Single-phase current			m3/h	0	3.6	4.8	6	8	10	12
			380V	220V			l/min	0	60	80	110	133	166	200
	HP	Kw	A	A	μF	VC	H m	Head
4SP8-1	0.75	0.55	2	4.8	20	450		9	8	7	6	4	3	2	50mm 2"G	100 mm
4SP8-2	0.75	0.55	2	4.8	20	450		14	13	12	10	8	8	4
4SP8-3	1	0.75	2.5	6.3	30	450		19	18	17	15	13	11	6
4SP8-4	1	0.75	2.5	6.3	30	450		25	24	22	20	18	14	8
4SP8-5	1	0.75	2.5	6.3	30	450		31	28	27	25	22	17	10
4SP8-7	1.5	1.1	3.4	8.6	40	450		43	39	37	35	30	23	13
4SP8-10	2	1.5	4.4	10	50	450		62	56	53	50	43	33	19
4SP8-12	3	2.2	6.2	14	60	450		74	67	64	60	52	40	23
4SP8-14	3	2.2	6.2	14	60	450		87	78	74	70	60	46	27
4SP8-18	4	3	8.3	-	-	-		112	101	95	89	77	59	34
4SP8-21	5.5	4	10.3	-	-	-		130	118	111	104	90	69	40
4SP8-24	5.5	4	10.3	-	-	-		149	134	127	119	103	79	46
4SP8-30	7.5	5.5	14	-	-	-		186	168	159	148	129	99	57
4SP8-35	7.5	5.5	14	-	-	-		217	196	186	172	151	116	67
4SP8-40	10	7.5	18.5	-	-	-		248	224	212	197	172	132	76
4SP8-44	10	7.5	18.5	-	-	-		273	246	233	217	189	145	84

Model 50Hz	Motor Power		Three-phase current.	Single-phase current			Q	Flow								Out. Port Size	Application Well trail
			Three-phase current.	Single-phase current			m3/h	0	3	6	9	12	14	18	21
			380V	220V			l/min	0	50	100	150	200	233	300	350
	HP	Kw	A	A	μF	VC	H m	Head
4SP14-1	0.75	0.55	2	4.8	20	450		8	7	6	5	3.5	1.5	-	-	50mm 2"G	100 mm
4SP14-2	1	0.75	2.5	6.3	30	450		11	10	8	7	6	4	-	-
4SP14-3	1	0.75	2.5	6.3	30	450		16	15	13	12	11	9	4	-
4SP14-4	1.5	1.1	3.4	8.6	40	450		21	20	18	17	16	14	9	2
4SP14-5	2	1.5	4.4	10	50	450		34	32	30	28	25	22	14	4
4SP14-7	3	2.2	6.2	14	60	450		48	44	42	39	34	30	19	6
4SP14-10	4	3	8.3	-	-	-		68	63	60	55	49	42	27	8
4SP14-13	5.5	4	10.3	-	-	-		88	82	77	72	64	53	35	11
4SP14-15	7.5	5.5	14	-	-	-		102	95	89	83	74	61	41	13
4SP14-18	7.5	5.5	14	-	-	-		122	114	107	99	88	73	49	15
4SP14-21	10	7.5	18.5	-	-	-		143	133	125	116	103	85	57	17
4SP14-25	10	7.5	18.5	-	-	-		170	158	149	138	123	101	68	21

Type 50Hz	Motor Power		San current 380v	Q	flow								Out. Port Size (mm)	Application Well trail (mm)
				m3/h	0	3	6	9	12	15	18	21
				l/min	0	50	100	150	200	250	300	350
	HP	Kw	A	H m	Jan Process
6SP17-9	7.5	5.5	13		97	96	94	90	85	76	63	45	G3"	100
6SP17-12	10	7.5	17		130	128	126	120	113	102	84	60
6SP17-15	12.5	9.2	21		162	160	157	150	141	127	105	75
6SP17-18	15	11	24		195	192	188	180	170	152	126	90
6SP17-21	17.5	13	28		227	224	220	210	198	178	147	105
6SP17-24	20	15	32		260	256	251	241	226	203	168	120
6SP17-30	25	18.5	40		324	320	314	301	283	254	210	150
6SP17-36	30	22	46		389	384	377	361	339	305	252	180
6SP17-43	35	26	54		465	459	150	431	405	364	301	215

model 50Hz	Motor Power		San current 380v	Q	flow Volume										Out. Port Size (mm)	Application Well trail (mm)
				m3/h	0	6	12	18	24	28	30	36	42	48
				l/min	0	100	200	300	400	467	500	600	700	800
	HP	Kw	A	H m	& nbsp; & nbsp; & nbsp; Process
6SP30-5	7.5	5.5	13		57	55	52	49	45	42	39	31	22	10	G3"	100
6SP30-7	10	7.5	17		80	77	72	68	63	59	55	43	31	13
6SP30-9	12.5	9.2	21		103	99	93	87	81	76	70	56	40	17
6SP30-12	15	11	24		137	132	124	116	108	101	94	74	53	23
6SP30-14	18	13	28		160	154	144	136	126	122	109	87	62	27
6SP30-16	20	15	32		182	176	165	155	144	136	125	99	70	30
6SP30-19	25	18.5	40		217	209	196	184	171	160	148	118	84	36
6SP30-23	30	22	46		262	253	237	223	207	189	179	143	101	44
6SP30-28	35	26	54		319	308	288	271	252	232	218	174	123	53

model 50Hz	Motor Power		San current 380v	Q	flow Volume												Out. Port Size (mm)	Application Well trail (mm)
				m3/h	0	6	12	18	24	30	36	42	48	54	60	66
				l/min	0	100	200	300	400	500	600	700	800	900	1000	1100
	HP	Kw	A	H m	Jan Process
6SP46-4	10	7.5	17		50	49.5	49	47	44	40	37	34	30	23	17	9	G3"	100
6SP46-5	10	7.5	17		63	62	61	59	55	50	46	43	37	29	22	12
6SP46-6	12.5	9.2	21		75	74	73	71	65	60	55	51	44	35	26	14
6SP46-7	15	11	24		88	87	85	83	76	70	64	60	52	41	30	16
6SP46-8	18	13	28		100	99	98	94	87	80	74	68	59	46	34	18
6SP46-10	20	15	32		125	124	122	118	109	100	92	85	74	58	43	23
6SP46-12	25	18.5	40		150	149	146	142	131	120	110	102	89	70	52	28
6SP46-14	30	22	46		175	174	171	165	153	140	129	119	104	81	60	32
6SP46-16	35	26	54		200	198	195	189	174	160	147	136	118	93	69	37
6SP46-18	40	30	62		225	223	220	212	196	180	170	163	150	140	97	41

model 50Hz	Motor Power		San current 380v	Q	flow													Out. Port Size (mm)	Application Well trail (mm)
				m3/h	0	6	12	18	24	30	36	42	48	54	60	66	72
				l/min	0	100	200	300	400	500	600	700	800	900	1000	1100	1200
	HP	Kw	A	H m	Jan
6SP60-4	10	7.5	17		57	55	54	52	50	48	45	42	41	39	36	30	24	G3"	100
6SP60-5	12.5	9.2	21		71	69	67	66	63	60	57	53	51	49	45	38	31
6SP60-6	15	11	24		85	82	80	78	75	71	68	63	62	59	83	46	37
6SP60-7	18	13	28		99	96	94	62	88	83	79	74	72	69	62	53	43
6SP60-8	20	15	32		112	109	107	105	100	95	90	84	82	78	71	61	49
6SP60-10	25	18.5	40		141	137	134	131	125	119	113	105	103	98	89	76	61
6SP60-12	30	22	46		169	164	161	157	150	143	136	126	123	118	107	91	73
6SP60-14	35	26	54		197	192	188	183	175	167	158	147	143	137	125	106	85
6SP60-16	40	30	62		226	219	214	210	200	190	181	168	164	157	142	122	98

Selection Information Required

Please provide medium, concentration, flow, total head or pressure, temperature, viscosity or solids, voltage, frequency and installation method. DFIN Pump will confirm the suitable model and materials.

Catalog reference: authorized YZJ product data · Model SP

SELECTION SUPPORT

Application-based pump selection

Send the liquid, flow, head or pressure, temperature, solids, installation, power supply and destination for a verified recommendation.
