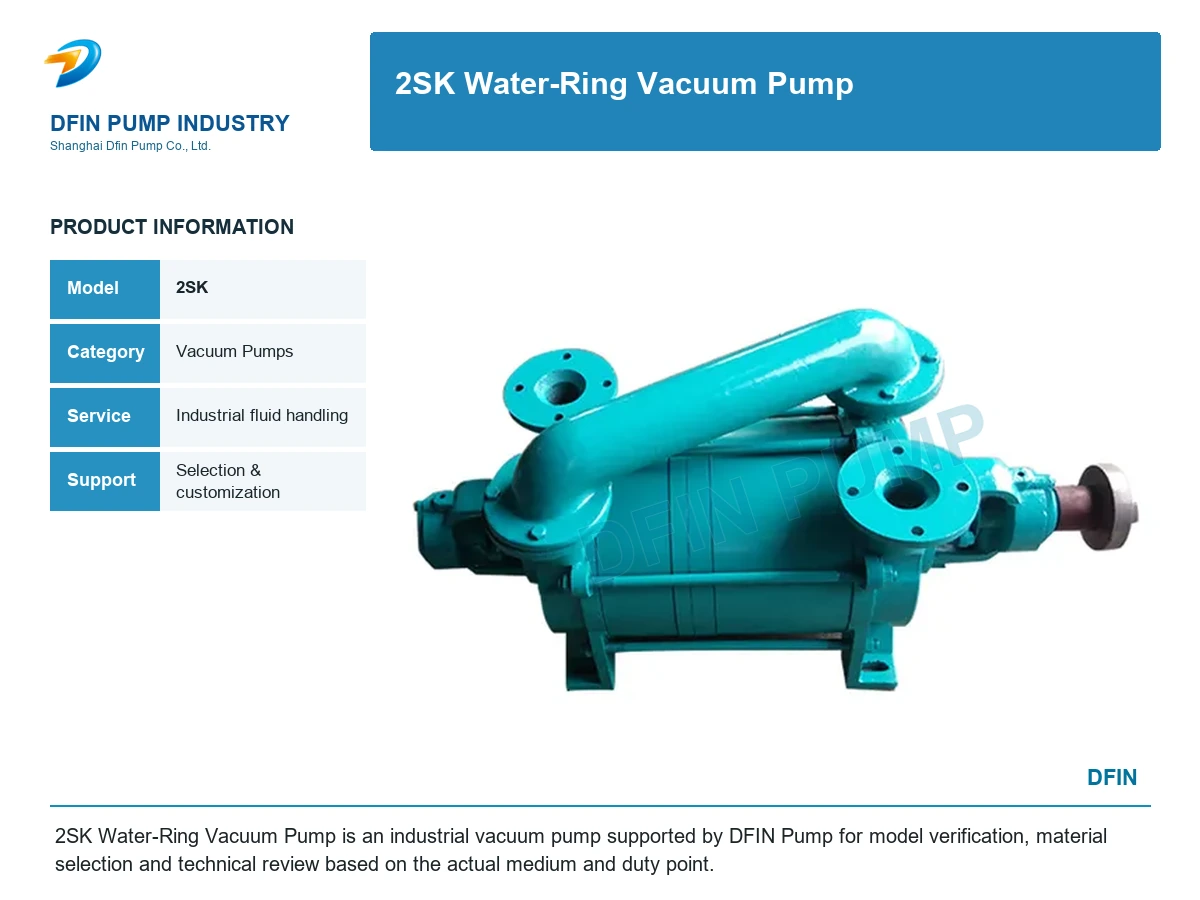

2SK Water-Ring Vacuum Pump
Model: 2SK
2SK Water-Ring Vacuum Pump is an industrial vacuum pump supported by DFIN Pump for model verification, material selection and technical review based on the actual medium and duty point.
TECHNICAL DATA
Specifications, performance and construction
Confirm the final operating point, materials, motor and connection standard before ordering.
Product Overview
2SK Water-Ring Vacuum Pump is an industrial vacuum pump selected for vacuum generation, gas removal and process evacuation. The final configuration should be verified against the actual liquid, duty point, temperature, installation and power supply.
Typical Applications
Vacuum generation, gas removal and process evacuation.
Design Features
- Stable vacuum performance
- Industrial-duty construction
- Application-specific material options
- Model and material selection supported by DFIN Pump engineers
Technical Performance Data
| Model | Gas extraction m3/min |
Maximum pressure. MPa (mmHg) |
Motor Power KW |
Speed (Transfer/minute) r.p.m |
Water supply (L/min) L/min |
Breathe in. Port Size |
|
| Atmospheric Volume | No less than 0.093 MPa for inhalation pressure | ||||||
| 2SK-0.4 | 0.4 | 0.25 | -0.096(-725) | 2.2 | 2840 | 3～5 | G1" |
| 2SK-0.8 | 0.8 | 0.5 | -0.096(-725) | 3 | 2880 | 5～8 | G1" |
| 2SK-1.5 | 1.5 | 0.9 | -0.096(-725) | 4 | 1440 | 10～15 | φ40 |
| 2SK-3 | 3 | 2 | -0.097(-730) | 7.5 | 1440 | 15～20 | φ40 |
| 2SK-6 | 6 | 4 | -0.098(-735) | 15 | 1450 | 25～35 | φ70 |
| 2SK-12 | 12 | 8 | -0.098(-735) | 22 | 970 | 40～50 | φ100 |
| 2SK-20 | 20 | 14 | -0.098(-735) | 55 | 740 | 60～80 | φ125 |
| 2SK-30 | 30 | 20 | -0.098(-735) | 75 | 740 | 70～90 | φ125 |
| Model | Gas extraction m3/min |
Maximum pressure MPa (mmHg) |
PowerKW
|
Speedr.p.m |
Water supply L/min |
||
|
Inhalation pressure - 0.093 MPa (-7000mmHg) |
Inhalation pressure - 0.097 MPa (-730 mmHg) |
Inhalation pressure - 0.099 MPa (-750mmHg) |
|||||
| 2SK-0.4P1 | 0.28 | 0.24 | 0.2 | -0.099(-750) | 2.2 | 2840 | 3～5 |
| 2SK-0.8P1 | 0.56 | 0.48 | 0.4 | -0.099(-750) | 3 | 2880 | 5～8 |
| 2SK-1.5P1 | 1.05 | 0.9 | 0.75 | -0.099(-750) | 4 | 1440 | 10～15 |
| 2SK-3P1 | 2.1 | 1.8 | 1.5 | -0.099(-750) | 7.5 | 1440 | 15～20 |
| 2SK-6P1 | 4.2 | 3.6 | 3 | -0.099(-750) | 15 | 1450 | 25～35 |
| 2SK-12P1 | 8.4 | 7.2 | 6 | -0.099(-750) | 22 | 970 | 40～50 |
| 2SK-20P1 | 14 | 12 | 10 | -0.099(-750) | 55 | 740 | 60～80 |
| 2SK-30P1 | 21 | 18 | 15 | -0.099(-750) | 75 | 740 | 70～90 |
| Model | A | B | C | D | E | F | G | H | I | J | K | L | M | N | P | R |
| 2SK-0.4 | 310 | 350 | 20 | 590 | 125 | 200 | 235 | φ14 | 280 | 102 | G1" | φ25 | 104 | 36 | 5 | 15 |
| 2SK-0.8 | 335 | 375 | 20 | 660 | 150 | 210 | 260 | φ14 | 280 | 102 | G1" | φ25 | 104 | 36 | 5 | 15 |
| Model | A | A′ | B | B′ | C | D | D′ | E | F | G | H | I | J | K | L | M | N | P | S | T | Z | n1 | n2 | d1 | d2 | d3 | d4 | d5 | d6 | d7 |
| 2SK-3P1 | 710 | ∕ | 400 | 400 | 1136 | 460 | 460 | 1346 | 427 | 491 | 275 | 35 | 159 | 214 | 167 | 344 | 162 | 99 | 357 | 570 | G1/2" | 4 | 4 | 18 | 120 | 152 | 18 | 110 | 150 | 14 |
| 2SK-6P1 | 863 | ∕ | 420 | 420 | 1391 | 470 | 470 | 1623 | 500 | 608 | 315 | 30 | 218 | 234 | 183 | 429 | 210 | 99 | 515 | 734 | G1/2" | 4 | 4 | 18 | 120 | 152 | 18 | 125 | 160 | 18 |
| 2SK-12P1 | 10375 | ∕ | 520 | 460 | 1642 | 580 | 520 | 1965 | 615 | 750 | 375 | 30 | 216 | 246 | 183 | 599 | 280 | 120 | 565 | 800 | G1/2" | 6 | 6 | 14 | 150 | 180 | 14 | 170 | 200 | 27 |
| 2SK-20P1 | 700 | 700 | 690 | ∕ | 1972 | 750 | ∕ | 2526 | 840 | 100 | 4500 | 30 | 306 | 283 | 225 | 619 | 350 | 180 | 774 | 1022 | G3/4" | 8 | 8 | 18 | 200 | 235 | 18 | 200 | 235 | 27 |
| 2SK-30P1 | 810 | 750 | 720 | ∕ | 2215 | 780 | ∕ | 2715 | 840 | 100 | 4500 | 30 | 344 | 283 | 225 | 749 | 350 | 180 | 1016 | 1264 | G3/4" | 8 | 8 | 18 | 200 | 235 | 18 | 200 | 235 | 27 |
| Model | A | B | C | D | E | F | G | H | I | J | K | L | M | N | P | Z | n | d1 | d2 | d3 | d4 | d5 | d6 | d7 | d8 | d9 |
| 2SK-1.5P1 | 605 | 125 | 125 | 950 | 1150 | 212 | 144 | 252 | 360 | 404 | 584 | 764 | 255 | 410 | 25 | G1/2" | 4 | φ140 | φ110 | φ40 | M12 | φ120 | φ92 | φ40 | φ18 | φ14 |
| Model | A | B | C | D | E | F | G | H | I | J | Z1 | Z2 | d1 | d2 | d3 | d4 | n |
| 2SK-6P1 | 900 | 760 | 680 | 500 | 240 | 500 | 500 | 410 | 60 | 80 | G1/2" | φ65 | 65 | 160 | 130 | 14 | 4 |
| 2SK-12P1 | 1250 | 1100 | 1000 | 650 | 260 | 500 | 615 | 690 | 60 | 80 | G1/2" | φ80 | 80 | 185 | 150 | 18 | 4 |
| 2SK-20P1 | 1300 | 1100 | 1000 | 650 | 260 | 500 | 840 | 690 | 60 | 80 | G3/4" | φ80 | 125 | 235 | 200 | 18 | 8 |
| 2SK-30P1 | 1300 | 1100 | 1000 | 650 | 260 | 500 | 840 | 690 | 60 | 80 | G3/4" | φ80 | 125 | 235 | 200 | 18 | 8 |
| Fault | Reasons for 2SK loop vacuum pump | 2SK waterring vacuum pump |
| There's not enough gas. | 1. Too wide a gap | 1. Adjustment gap |
| 2. Leakage at filling | 2. Tightening or replacing fillings | |
| 3. High ring temperature | 3. Increasing water supply | |
| 4. Leakage of pipeline systems | 4. Tighten French bolts, replace gaskets or weld cracks, etc. | |
| Lower vacuum. | 1. Pipeline systems | |
| One French connection leaks. | One, one screw the flannel bolt or replace the gasket. | |
| 2 pipes have cracks. | 2 Welding or replacement | |
| Water rings pumps | ||
| 1 filling leak | 2 and 1 pressure fillings to replace new fillings | |
| There's too much gap between two wheels and the side cover. | 2 Replace gasket adjustment gap | |
| It's three years old. | 3. Reduced water temperature | |
| 4 insufficient water | 4 Increase in water supply | |
| 5 parts rubbed and heated up, resulting in an increase in the temperature of the water ring | 5 Adjustment or re-installation | |
| Vibration or sound | 1. Fence loose on the ground | Tightening the ankle bolts |
| 2. Alien grinding in pumps | 2. Stoppump inspection to extract aliens | |
| Three, leaves fall. | 3. Replacement of leaves | |
| Air erosion | 4. Open inhaler valves | |
| Axis fever. | 1. Insufficient lubricants | 1. Check for lubrication, refuelling |
| Overstretched pressure of filling | 2. Release appropriate filling caps | |
| 3. No sealed water or insufficient | 3. Supply of sealed or increased water | |
| 4. The bearings or axes or bearings are over-heavy, resulting in friction between the ball and the inner and inner circle. | 4. Adjustment of the bearings with the bearings or bearings | |
| Hard to start. | 1. Rusty inside the pump after a prolonged shutdown | 1. Rotation of leaf wheels several times with hand or special tools |
| Pressure on fillings | 2. Lemon pine filling caps | |
| 3 and foliage between the wheel and the pump | 3 Re-installation and adjustment |
Selection Information Required
Please provide medium, concentration, flow, total head or pressure, temperature, viscosity or solids, voltage, frequency and installation method. DFIN Pump will confirm the suitable model and materials.
Catalog reference: authorized YZJ product data · Model 2SK
