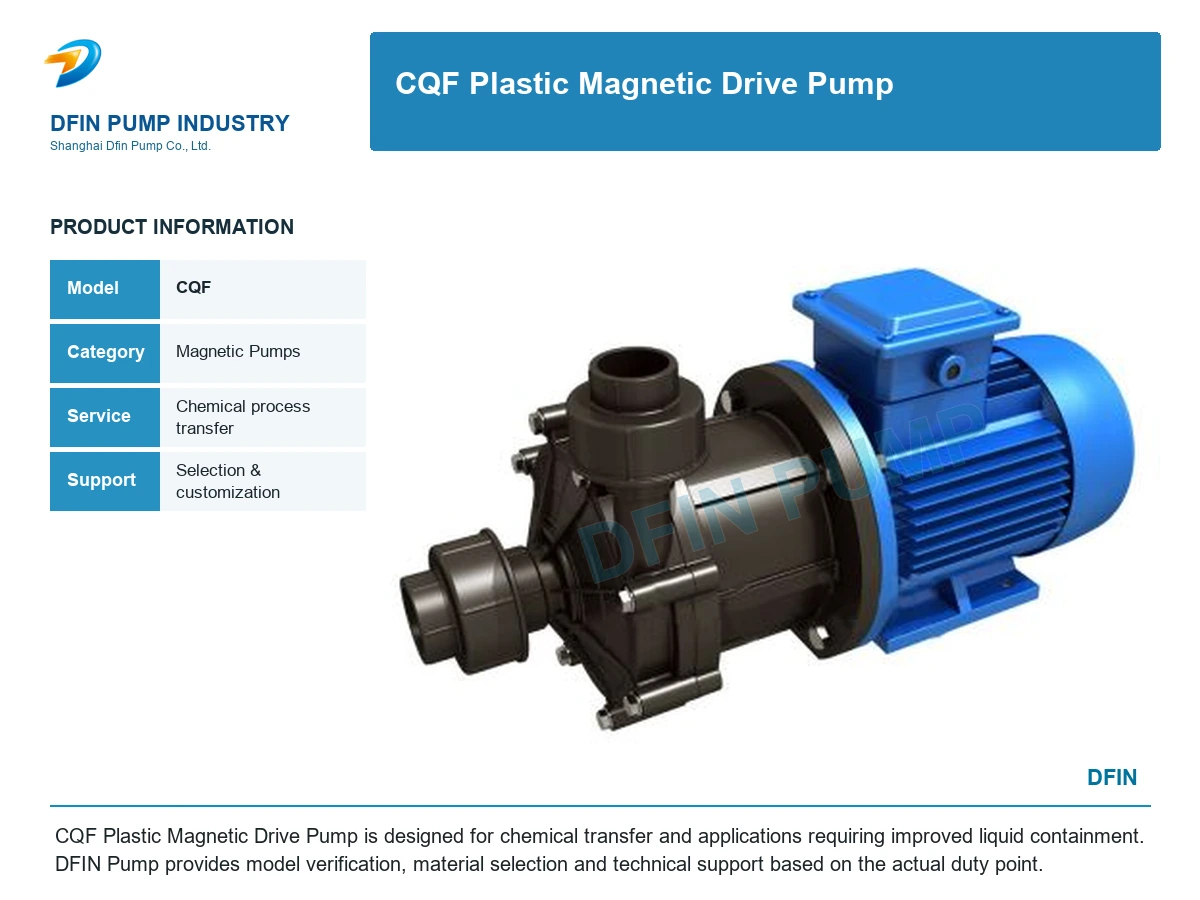

Reference image. Final construction follows the confirmed model and quotation.
Magnetic Pumps
CQF Plastic Magnetic Drive Pump
Model: CQF
CQF Plastic Magnetic Drive Pump is designed for chemical transfer and applications requiring improved liquid containment. DFIN Pump provides model verification, material selection and technical support based on the actual duty point.
TECHNICAL DATA
Specifications, performance and construction
Confirm the final operating point, materials, motor and connection standard before ordering.
Product Overview
CQF Plastic Magnetic Drive Pump is an industrial magnetic pump selected for chemical transfer and applications requiring improved liquid containment. The final configuration should be verified against the actual liquid, duty point, temperature, installation and power supply.
Typical Applications
Chemical transfer and applications requiring improved liquid containment.
Design Features
- Sealless magnetic coupling
- Corrosion-resistant material options
- Compact and low-maintenance construction
- Model and material selection supported by DFIN Pump engineers
Technical Performance Data
| model | Port Size | Flow (m3/h) | Head (m) | Motor Power (kW) | & Voltage | Materials | |
| Inlet(mm) | Outlet(mm) | ||||||
| 10CQF-3 | 10 | 8 | 0.9 | 3 | 0.01 | 220 | Technical materials |
| 14CQF-5 | 14 | 10 | 1.2 | 5 | 0.12 | 220/380 | |
| 16CQF-8 | 15 | 15 | 1.5 | 8 | 0.12 | 220/380 | |
| 20CQF-12 | 25 | 18 | 3 | 12 | 0.37 | 220/380 | |
| 25CQF-15 | 25 | 20 | 6.6 | 15 | 1.1 | 380 | |
| 32CQF-15 | 32 | 25 | 6.6 | 15 | 1.1 | 380 | |
| 32CQF-25 | 32 | 25 | 6.6 | 25 | 1.1 | 380 | |
| 40CQF-20 | 40 | 32 | 10.8 | 20 | 2.2 | 380 | |
| 50CQF-25 | 50 | 40 | 14.4 | 25 | 3 | 380 | |
| 50CQF-32 | 50 | 40 | 13.2 | 32 | 4 | 380 | |
| 65CQF-25 | 65 | 50 | 25 | 25 | 5.5 | 380 | |
| 65CQF-32 | 65 | 50 | 25 | 32 | 5.5 | 380 | |
| Note: In table 20CQF-12--65CQF-32, explosive-proof Motor | |||||||
Selection Information Required
Please provide medium, concentration, flow, total head or pressure, temperature, viscosity or solids, voltage, frequency and installation method. DFIN Pump will confirm the suitable model and materials.
Catalog reference: authorized YZJ product data · Model CQF
