Magnetic Pumps

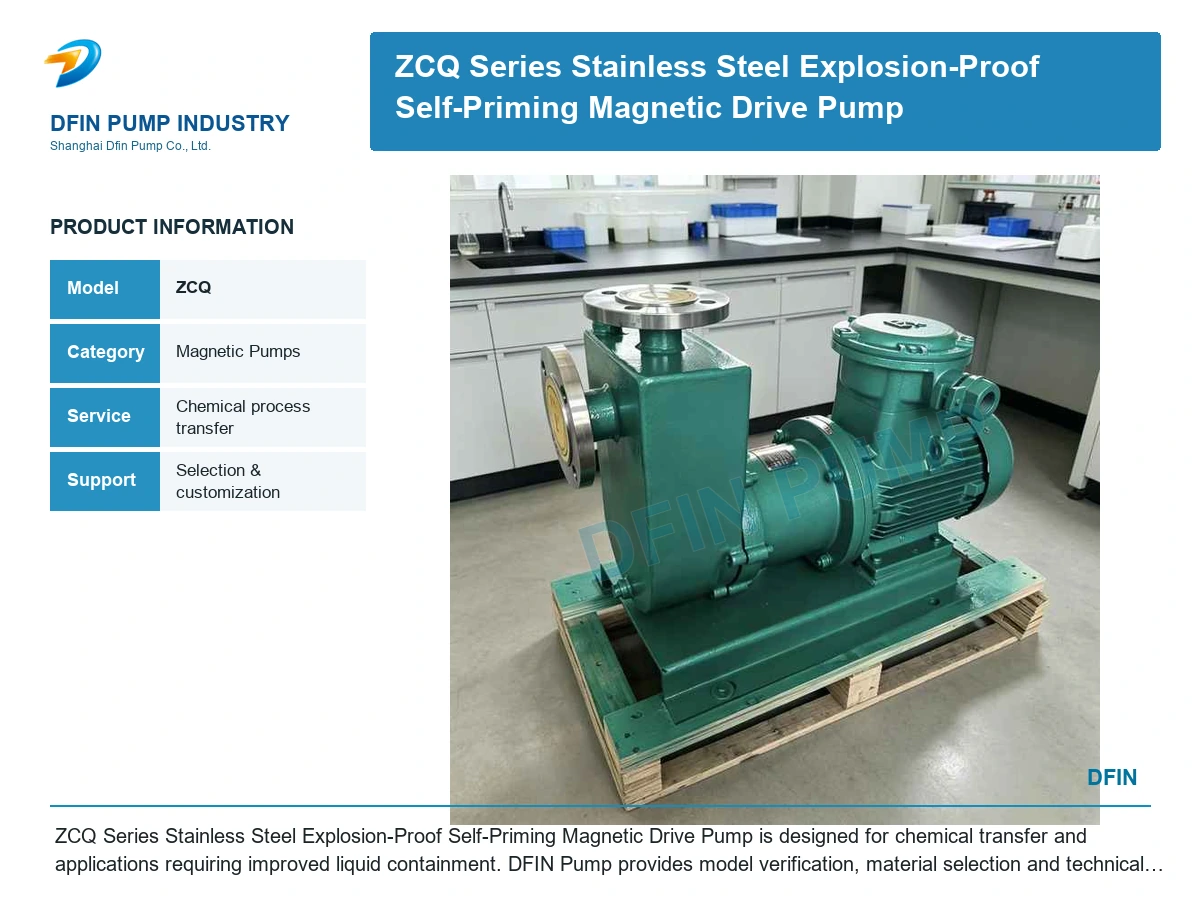

ZCQ Series Stainless Steel Explosion-Proof Self-Priming Magnetic Drive Pump
Model: ZCQ
ZCQ Series Stainless Steel Explosion-Proof Self-Priming Magnetic Drive Pump is designed for chemical transfer and applications requiring improved liquid containment. DFIN Pump provides model verification, material selection and technical support based on the actual duty point.
TECHNICAL DATA
Specifications, performance and construction
Confirm the final operating point, materials, motor and connection standard before ordering.
Product Overview
ZCQ Series Stainless Steel Explosion-Proof Self-Priming Magnetic Drive Pump is an industrial magnetic pump selected for chemical transfer and applications requiring improved liquid containment. The final configuration should be verified against the actual liquid, duty point, temperature, installation and power supply.
Typical Applications
Chemical transfer and applications requiring improved liquid containment.
Design Features
- Sealless magnetic coupling
- Corrosion-resistant material options
- Compact and low-maintenance construction
- Model and material selection supported by DFIN Pump engineers
Technical Performance Data
| No. | Part name | Material | No. | Part name | Material | |
| 1 | Pump body | Stainless Steel | 8 | Internal magnet assembly | Magnetic Component | |
| 2 | Stop the valve. | Fluorine rubber | 9 | Isolation sleeve | Stainless Steel | |
| 3 | static ring | Stainless Steel | 10 | Stop the push rings. | Cyclops | |
| 4 | impeller | Stainless Steel | 11 | Bearing body | Stainless Steel | |
| 5 | sealing ring | PTFE | 12 | pump shaft | Stainless Steel | |
| 6 | Back and forth. | carbon graphite | 13 | External magnet assembly | Magnetic Component | |
| 7 | Back and forth. | Cyclops | 14 | Connecting frame | Cast Iron |
| Model |
Flow (m3/h) |
Headm | Speedr/min | Axis PowerKw |
Efficiency η |
Self-priming performance |
With Motor Power | ||
| Media density | |||||||||
| ＜1 | ＜1.3 | ＜1.84 | |||||||
| ZCQ25-20-115 |
1.0 1.6 2.0 |
17 15 12.5 |
2900 |
0.23 0.24 0.24 |
20 27 28 |
4 |
Y/YB801-2 0.75 |
Y/YB801-2 0.75 |
Y/YB801-2 0.75 |
| ZCQ32-25-115 |
1.9 3.2 3.8 |
17 15 12.5 |
2900 |
0.40 0.45 0.43 |
22 29 30 |
4 |
Y/YB801-2 0.75 |
Y/YB801-2 0.75 |
Y/YB802-2 1.1 |
| ZCQ32-25-145 |
1.9 3.2 3.8 |
27.5 25 22 |
2900 |
0.68 0.78 0.79 |
21 28 29 |
4 |
Y/YB802-2 1.1 |
Y/YB802-2 1.1 |
Y/YB90S-2 1.5 |
| ZCQ40-32-132 |
3.8 6.3 7.5 |
25 22 19 |
2900 |
0.99 1.11 1.11 |
26 34 35 |
4 |
Y/YB802-2 1.1 |
Y/YB90S-2 1.5 |
Y/YB90L-2 2.2 |
| ZCQ40-32-160 |
3.8 6.3 7.5 |
34 32 29 |
2900 |
1.41 1.57 1.65 |
25 35 36 |
4 |
Y/YB90L-2 2.2 |
Y/YB90L-2 2.2 |
Y/YB100L-2 3.0 |
| ZCQ50-32-125 |
7.5 12.5 15 |
22 20 18 |
2900 |
1.55 1.70 1.79 |
29 40 41 |
4 |
Y/YB90L-2 2.2 |
Y/YB100L-2 3.0 |
Y/YB112M-2 4.0 |
| ZCQ50-32-160 |
7.5 12.5 15 |
34 32 29 |
2900 |
2.57 2.87 3.04 |
27 38 39 |
4 |
Y/YB100L-2 3.0 |
Y/YB112M-2 4.0 |
Y/YB32S1-2 5.5 |
| ZCQ50-32-200 |
7.5 12.5 15 |
52.5 50 48 |
2900 |
5.10 5.67 6.33 |
21 30 31 |
4 |
Y/YB32S2-2 7.5 |
Y/YB32S2-2 7.5 |
Y/YB160M1-2 11 |
| ZCQ65-50-125 |
15 25 30 |
22 20 18 |
2900 |
2.81 3.17 3.34 |
32 43 44 |
4 |
Y/YB112M-2 4.0 |
Y/YB132S1-2 5.5 |
Y/YB132S2-2 7.5 |
| ZCQ65-50-160 |
15 25 30 |
34 32 28 |
2900 |
4.63 5.31 5.45 |
30 41 42 |
4 |
Y/YB132S1-2 5.5 |
Y/YB132S2-2 7.5 |
Y/YB160M1-2 11 |
| ZCQ65-40-200 |
7.5 12.5 15 |
53 50 47 |
2900 |
8.33 9.73 10.67 |
26 35 36 |
4 |
Y/YB160M1-2 11 |
Y/YB160M2-2 15 |
Y/YB160L-2 18.5 |
| ZCQ80-65-125 |
30 50 60 |
22 20 18 |
2900 |
4.73 5.56 5.39 |
38 49 50 |
4 |
Y/YB132S1-2 5.5 |
Y/YB132S2-2 7.5 |
Y/YB160M1-2 11 |
| ZCQ80-65-160 |
30 50 60 |
34 32 28 |
2900 |
8.29 9.68 9.95 |
33 45 46 |
4 |
Y/YB160M1-2 11 |
Y/YB160M2-2 15 |
Y/YB160L-2 18.5 |
| ZCQ80-50-200 |
30 50 60 |
53 50 47 |
2900 |
12.37 14.80 16.34 |
35 |
4 |
Y/YB160L-2 18.5 |
Y/YB180M-2 22 |
Y/YB200L1-2 30 |
| ZCQ80-50-250 |
30 50 60 |
84 80 75 |
2900 |
21.45 24.76 27.23 |
32 44 45 |
4 |
Y/YB200L1-2 30 |
Y/YB220L2-2 37 |
Y/YB225M-2 45 |
| ZCQ100-80-160 |
60 100 120 |
33.5 32 27 |
2900 |
12.16 16.14 16.04 |
45 54 55 |
4 |
Y/YB160L1-2 18.5 |
Y/YB180M-2 22 |
Y/YB200L1-2 30 |
| Model | Port Size | Flow | Head | Suction Lift | Power | Speed | ||
| （Material：Stainless Steel） | Inlet | Outlet | L/ min | (m3/h) | (m) | (m) | (kw) | （r/min) |
| ZCQ20-12-110 | 20 | 12 | 50 | 3 | 12 | 4 | 0.37 | 2800 |
| ZCQ25-20-115 | 25 | 20 | 110 | 6.6 | 15 | 4 | 1.1 | |
| ZCQ32-25-115 | 32 | 25 | 110 | 6.6 | 15 | 4 | 1.1 | |
| ZCQ32-25-145 | 32 | 25 | 80 | 4.8 | 25 | 4 | 1.1 | |
| ZCQ40-32-132 | 40 | 32 | 180 | 10.8 | 20 | 4 | 2.2 | |
| ZCQ40-32-160 | 40 | 32 | 200 | 12 | 32 | 4 | 4 | |
| ZCQ50-40-145 | 50 | 40 | 240 | 14.4 | 25 | 4 | 4 | |
| ZCQ50-40-160 | 50 | 40 | 220 | 13.2 | 32 | 4 | 4 | |
| ZCQ65-50-145 | 65 | 50 | 280 | 16.8 | 25 | 4 | 5.5 | |
| ZCQ65-50-160 | 65 | 50 | 450 | 27 | 32 | 4 | 7.5 | |
| ZCQ80-65-160 | 80 | 65 | 850 | 51 | 32 | 4 | 15 | |
| ZCQ80-65-200 | 80 | 65 | 850 | 51 | 50 | 4 | 18.5 | |
| ZCQ100-80-160 | 100 | 80 | 1700 | 100 | 32 | 4 | 18.5 | |
| ZCQ100-80-200 | 100 | 80 | 1700 | 100 | 50 | 4 | 22 | |
Selection Information Required
Please provide medium, concentration, flow, total head or pressure, temperature, viscosity or solids, voltage, frequency and installation method. DFIN Pump will confirm the suitable model and materials.
