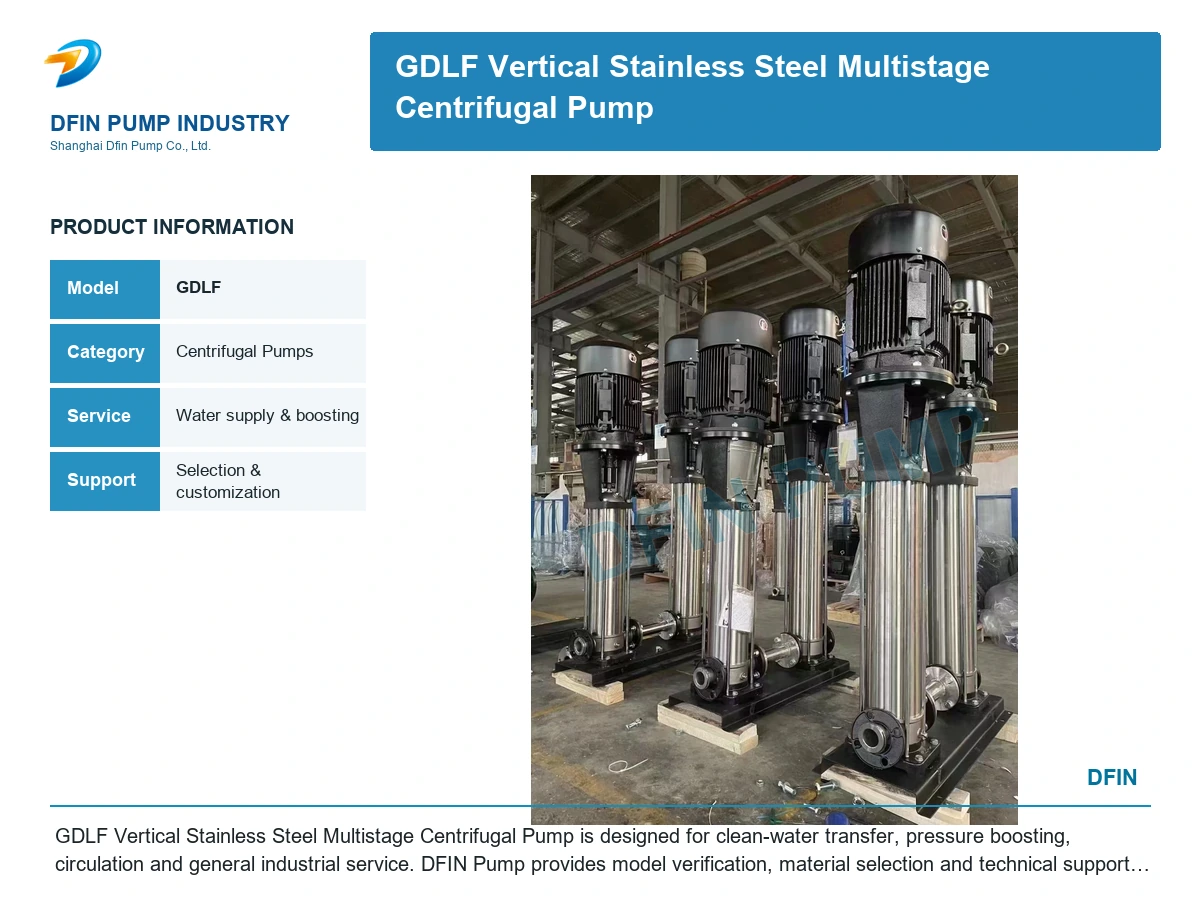

GDLF Vertical Stainless Steel Multistage Centrifugal Pump

Name: GDLF Vertical Stainless Steel Multistage Centrifugal Pump
Brand: DFIN PUMP
SKU: GDLF

Model: GDLF

GDLF Vertical Stainless Steel Multistage Centrifugal Pump is designed for clean-water transfer, pressure boosting, circulation and general industrial service. DFIN Pump provides model verification, material selection and technical support based on the actual duty point.

TECHNICAL DATA

Specifications, performance and construction

Confirm the final operating point, materials, motor and connection standard before ordering.

Product Overview

GDLF Vertical Stainless Steel Multistage Centrifugal Pump is an industrial centrifugal pump selected for clean-water transfer, pressure boosting, circulation and general industrial service. The final configuration should be verified against the actual liquid, duty point, temperature, installation and power supply.

Typical Applications

Clean-water transfer, pressure boosting, circulation and general industrial service.

Design Features

Compact hydraulic design
Stable flow with low vibration
Multiple materials and motor options
Model and material selection supported by DFIN Pump engineers

Technical Performance Data

No.	model	in and out Port Size	flow (m3/h)	Yang Cheng (m)	Speed (r/min)	efficiency (%)	Motor Power(kw)	cavitation margin	Weight(kg)
1	25GDLF2-12×3	25	2	36	30	2900	1.1	1.7	58
2	25GDLF2-12×4			48			1.1		62
3	25GDLF2-12×5			60			1.5		68
4	25GDLF2-12×6			72			1.5		72
5	25GDLF2-12×7			84			2.2		78
6	25GDLF2-12×8			96			2.2		82
7	25GDLF2-12×9			108			2.2		86
8	25GDLF2-12×10			120			3.0		98
9	25GDLF2-12×11			132			3.0		102
10	25GDLF2-12×12			144			3.0		106
11	25GDLF4-11×3	25	4	33	40	2900	1.1	1.7	58
12	25GDLF4-11×4			44			1.5		65
13	25GDLF4-11×5			55			2.2		72
14	25GDLF4-11×6			66			2.2		76
15	25GDLF4-11×7			77			3.0		86
16	25GDLF4-11×8			88			3.0		90
17	25GDLF4-11×9			99			3.0		94
18	25GDLF4-11×10			110			4.0		110
19	25GDLF4-11×11			121			4.0		114
20	25GDLF4-11×12			132			4.0		118
21	25GDLF4-11×13			143			4.0		122
22	40GDLF6-12×3	40	6	36	52	2900	1.5	1.7	72
23	40GDLF6-12×4			48			2.2		78
24	40GDLF6-12×5			60			2.2		82
25	40GDLF6-12×6			72			3.0		92
26	40GDLF6-12×7			84			3.0		96
27	40GDLF6-12×8			96			4.0		112
28	40GDLF6-12×9			108			4.0		116
29	40GDLF6-12×10			120			4.0		120
30	40GDLF6-12×11			132			5.5		140
31	40GDLF6-12×12			144			5.5		146
32	50GDLF12-15×2	50	12	30	56	2900	2.2	1.8	113
33	50GDLF12-15×3			45			3.0		129
34	50GDLF12-15×4			60			4.0		149
35	50GDLF12-15×5			75			5.5		181
36	50GDLF12-15×6			90			5.5		190
37	50GDLF12-15×7			105			7.5		204
38	50GDLF12-15×8			120			7.5		212
39	50GDLF12-15×9			135			11		265
40	50GDLF12-15×10			150			11		273
41	50GDLF18-15×2	50	18	30	62	2900	3.0	1.8	122
42	50GDLF18-15×3			45			4.0		142
43	50GDLF18-15×4			60			5.5		175
44	50GDLF18-15×5			75			7.5		189
45	50GDLF18-15×6			90			7.5		198
46	50GDLF18-15×7			105			11		252
47	50GDLF18-15×8			120			11		261
48	50GDLF18-15×9			135			15		280
49	50GDLF18-15×10			150			15		289
50	65GDLF24-12×2	65	24	44	65	2900	3.0	3.0	131


No.	Model	in and out Port Size	Flow (m3/h)	Lift (m)	Rotation speed (r/min)	efficiency (%)	Motor Power (kw)	cavitation margin	Weight (kg)
51	65GDLF24-12×3	65	24	36	65	2900	4.0	3.0	153
52	65GDLF24-12×4			48			5.5		182
53	65GDLF24-12×5			60			7.5		198
54	65GDLF24-12×6			72			7.5		214
55	65GDLF24-12×7			84			11		263
56	65GDLF24-12×8			96			11		273
57	65GDLF24-12×9			108			15		293
58	65GDLF24-12×10			120			15		303
59	80GDLF36-12×2	80	36	24	68	2900	4	4.0	193
60	80GDLF36-12×3			36			5.5		227
61	80GDLF36-12×4			48			7.5		244
62	80GDLF36-12×5			60			11		292
63	80GDLF36-12×6			72			11		302
64	80GDLF36-12×7			84			15		322
65	80GDLF36-12×8			96			15		332
66	80GDLF36-12×9			108			18.5		365
67	80GDLF36-12×10			120			18.5		375
68	80GDLF54-14×2	80	54	28	70	2900	7.5	4.0	218
69	80GDLF54-14×3			42			11		267
70	80GDLF54-14×4			56			15		287
71	80GDLF54-14×5			70			18.5		320
72	80GDFL54-14×6			84			18.5		330
73	80GDLF54-14×7			98			22		373
74	80GDLF54-14×8			112			30		400
75	80GDLF54-14×9			126			30		421
76	80GDLF54-14×10			140			37		432
77	100GDLF72-14×2	100	72	28	72	2900	11	4.5	276
78	100GDLF72-14×3			42			15		298
79	100GDLF72-14×4			56			18.5		336
80	100GDLF72-14×5			70			22		381
81	100GDLF72-14×6			84			30		453
82	100GDLF72-14×7			98			30		466
83	100GDLF72-14×8			112			37		493
84	100GDLF72-14×9			126			37		582
85	100GDLF72-14×10			140			45		595
86	125GDLF100-20×2	125	100	40	73	2900	18.5	4.5	292
87	125GDLF100-20×3			60			30		430
88	125GDLF100-20×4			80			37		463
89	125GDLF100-20×5			100			45		555
90	125GDLF100-20×6			120			55		640
91	125GDLF100-20×7			140			75		840
92	125GDLF100-20×8			160			75		855
93	125GDLF100-20×9			180			75		870
94	125GDLF100-20×10			200			90		955
95	150GDLF160-25×2	150	160	50	78	2900	37	4.5	737
96	150GDLF160-25×3			75			55		596
97	150GDLF160-25×4			100			75		737
98	150GDLF160-25×5			125			90		856
99	150GDLF160-25×6			150			110		951
100	150GDLF160-25×7			175			110		978

Model	H1	L	B	4-φd1	Inlet flange(J)
Model	H1	L	B	4-φd1	DN	N-φD2	φD
25GDLF	60	300	200	4-φ18	25	4-φ14	85
40GDLF	80	360	235	4-φ18	40	4-φ18	110
50GDLF	100	360	235	4-φ18	50	4-φ18	125
65GDLF	110	360	235	4-φ18	65	4-φ18	145
80GDLF	130	420	300	4-φ18	80	8-φ18	160
100GDLF	160	520	350	4-φ18	100	8-φ18	180
125GDLF	160	500	400	4-φ18	125	8-φ18	210
150GDLF	180	600	400	4-φ18	150	8-φ22	245

Selection Information Required

Please provide medium, concentration, flow, total head or pressure, temperature, viscosity or solids, voltage, frequency and installation method. DFIN Pump will confirm the suitable model and materials.

Catalog reference: authorized YZJ product data · Model GDLF

SELECTION SUPPORT

Application-based pump selection

Send the liquid, flow, head or pressure, temperature, solids, installation, power supply and destination for a verified recommendation.
